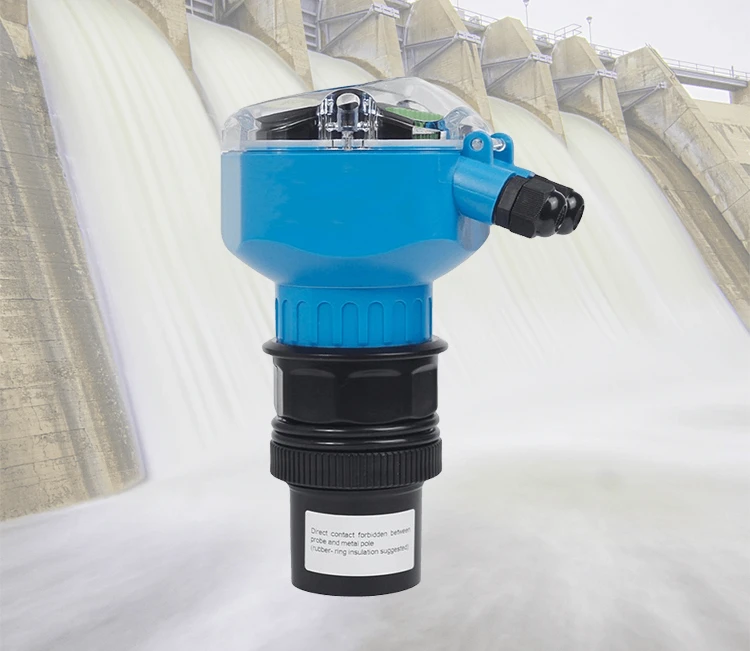

Ultrasonic Water Level Sensor: Precision in Liquid Measurement
In the realm of liquid level measurement, Ultrasonic water level sensor have emerged as a reliable and innovative solution. These sensors use ultrasonic waves to measure the level of water or other liquids. They provide a non-invasive and precise alternative to traditional methods.
Working Principle
At the heart of an ultrasonic water level sensor lies the principle of ultrasonic wave propagation. The sensor has a transducer that sends out ultrasonic waves. These are high-frequency sound waves that people cannot hear, usually above 20 kHz. These waves travel through the air at a known speed, and the ambient temperature primarily influences that speed. When the ultrasonic waves encounter the surface of the liquid, they are reflected back towards the sensor.
The sensor’s transducer also functions as a receiver, detecting the reflected waves. The sensor measures the time between sending ultrasonic waves and receiving their echoes. This helps it calculate the distance to the liquid surface.
Researchers usually know the distance from the sensor to the top of the container. You can also set it as a reference value. To find the water level, subtract the measured distance from this reference value. The sensor is 5 meters above the container. The distance to the water surface is 3 meters. This means the water level is 2 meters.
Structure and Components
An ultrasonic water level sensor generally consists of several key components. The transducer is the most crucial part, responsible for both emitting and receiving ultrasonic waves. Engineers often make it from piezoelectric materials that can convert electrical energy into ultrasonic waves during transmission and vice versa during reception.
The sensor also includes a microcontroller or a signal – processing unit. This component creates electrical signals to turn on the transducer for wave emission. It measures the time between emission and reception. Then, it does the calculations needed to change the time data into a useful water level reading. Additionally, there are usually interfaces for power supply and data output. The power supply interface connects the sensor to a suitable power source. The data output interface can send information in different ways. It can use analog signals like 4 – 20 mA. It can also use digital signals such as RS – 485 or Modbus. Wireless communication protocols like Bluetooth and Wi-Fi are also options. These methods transmit the measured water level data to a display unit, data logger, or control system.
Advantages
One of the significant advantages of ultrasonic water level sensors is their non – contact nature. Users do not touch the liquid they measure. This allows them to use sensors on many types of liquids. These include corrosive, thick, or dirty substances. Such liquids could harm or contaminate regular contact-based sensors. This non – contact feature also reduces the risk of sensor fouling, ensuring long – term reliable operation with minimal maintenance.
Ultrasonic sensors offer high precision and accuracy in water level measurement. They can detect small changes in water levels, which makes them ideal for applications that require precise monitoring. Moreover, they have a fast response time, allowing for real – time monitoring of water levels. This quick response is important in flood control systems. Immediate detection of rising water levels can trigger alerts and preventive actions.
These sensors are also relatively easy to install. You can place them on top of a tank, reservoir, or other water-holding structures. This does not require complex plumbing or difficult installation. Their installation options are flexible. Some models have wireless communication. This makes them suitable for new setups and for updating old systems.
Applications
Ultrasonic water level sensors find extensive use in various industries and applications. In the water and wastewater management sector, workers monitor the levels in water storage tanks, reservoirs, and treatment plants. This enables efficient management of water resources, ensuring that there is an adequate supply while preventing overflows.
Ultrasonic water level sensors are important for environmental monitoring. They measure water levels in rivers, lakes, and wetlands. This data is essential for flood forecasting, water quality assessment, and ecological studies. You can also use them in rainwater harvesting systems. They monitor how much water collects in storage tanks. This optimizes the use of this sustainable water source.
Installation and Usage Considerations
When you install an ultrasonic water level sensor, you need to consider several factors. First, ensure that the sensor has a clear line – of – sight to the liquid surface. Any obstacles, like pipes, structures, or floating objects, can disrupt the accurate measurement of ultrasonic waves. You should carefully set the sensor’s installation height. Base this on the highest and lowest expected water levels.
Ambient temperature has a significant impact on the speed of sound, and thus on the accuracy of the measurement. Many ultrasonic sensors have built-in temperature compensation. This feature automatically adjusts the measurement based on the surrounding temperature. However, for highly accurate applications, additional temperature sensors may be used to further refine the compensation.
Before use, most ultrasonic water level sensors require calibration. This means measuring the distance to a known object that is at a fixed spot. Then, adjust the sensor’s settings to match the measured value. Regular calibration, as recommended by the manufacturer, helps maintain the sensor’s accuracy over time.
Maintenance
Maintenance of ultrasonic water level sensors is relatively straightforward. Clean the surface of the transducer regularly. This helps remove dust, dirt, or other things that can affect ultrasonic waves. Check the connections for any signs of damage or loose cables. For sensors that can communicate wirelessly, check that the communication module is working well. Also, charge or replace the battery when needed.
Monitor the sensor’s performance regularly by comparing its readings with other reliable measurement methods or historical data. If someone finds any big differences, they may show a problem with the sensor. Then, you should take steps to fix it.
Conclusion
Ultrasonic water level sensors have revolutionized the way we measure liquid levels, offering a combination of accuracy, reliability, and versatility. Their non-contact operation, high precision, and wide range of uses make them essential tools in many industries. By learning how these sensors work, how to install them, and how to maintain them, users can get the most benefits. This will help ensure accurate and efficient water level monitoring. As technology keeps advancing, we can expect better performance from ultrasonic water level sensors. This will create new possibilities for measuring liquid levels.
