Ultrasonic Water Level Sensor: Precision in Liquid Measurement
In the realm of liquid level measurement, Ultrasonic water level sensor have emerged as a reliable and innovative solution. These sensors use ultrasonic waves to measure the level of water or other liquids. They provide a non-invasive and precise alternative to traditional methods.
Working Principle
At the core of an ultrasonic water level sensor is the idea of ultrasonic wave movement. The sensor has a transducer that sends out ultrasonic waves. These are high-frequency sound waves that people cannot hear, usually above 20 kHz.
These waves move through the air at a known speed. The ambient temperature mainly affects that speed. When the ultrasonic waves hit the surface of the liquid, they bounce back to the sensor.
The sensor’s transducer also acts as a receiver. It detects the reflected waves. The sensor measures the time it takes to send ultrasonic waves and get their echoes back. This helps it find the distance to the surface of the water.
Researchers often know how far the sensor is from the top of the container. You can also use this as a reference value.
To find the water level, subtract the measured distance from this reference value. The sensor is 5 meters above the container. The distance from the sensor to the water surface is 3 meters. This means the water level is 2 meters.

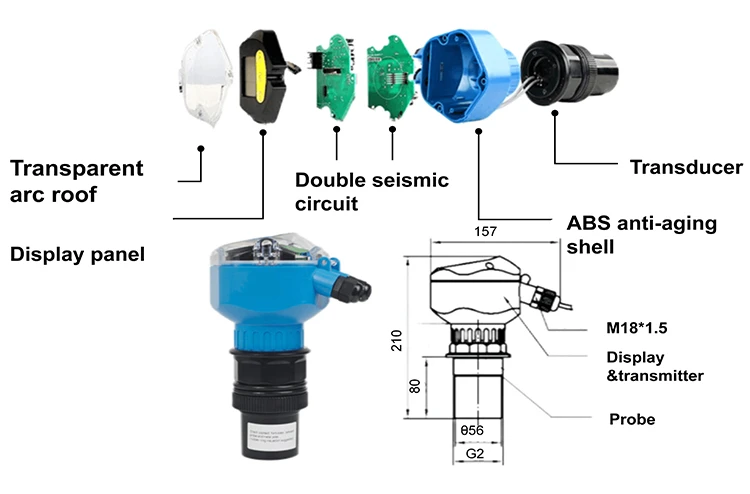

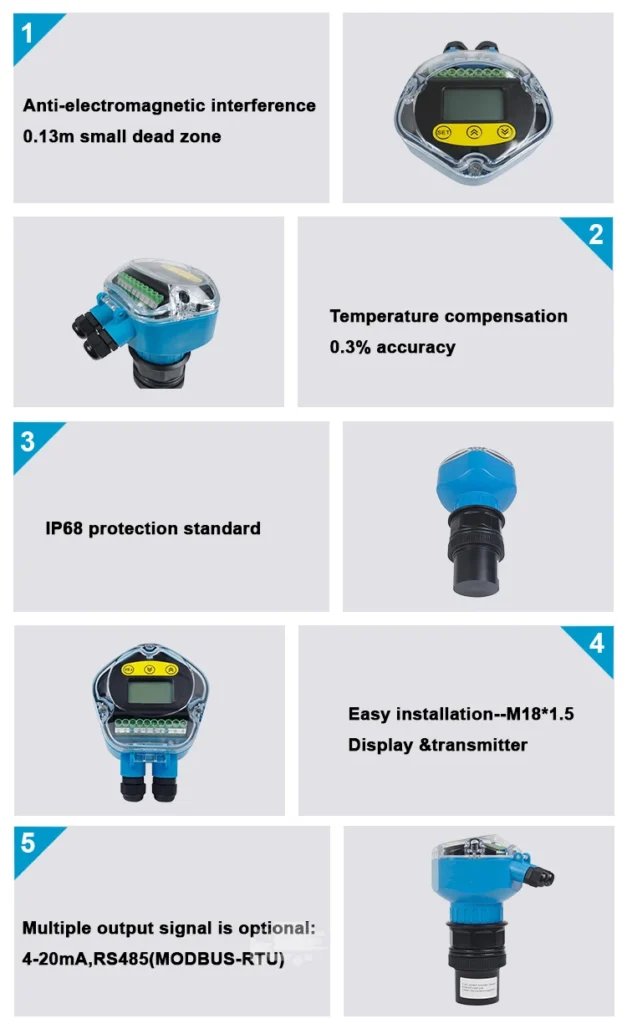

Structure and Components
An ultrasonic water level sensor has several important parts. The transducer is the most important part. It sends and receives ultrasonic waves. Engineers often make it from piezoelectric materials.
These materials can turn electrical energy into ultrasonic waves when they send them out. They can also do the opposite when they receive waves.
The sensor has a microcontroller or a signal-processing unit. This part makes electrical signals to activate the transducer for wave emission. It measures the time between sending and receiving waves. Then, it calculates the time data to give a useful water level reading.
Also, there are usually connections for power and data output. The power connection links the sensor to a power source.
The data output connection can send information in various ways. It can use analog signals like 4 – 20 mA. It can also use digital signals such as RS – 485 or Modbus.
Wireless communication methods like Bluetooth and Wi-Fi are good choices. They send the measured water level data to a display unit, data logger, or control system.
Advantages
One big advantage of ultrasonic water level sensors is that they do not touch the liquid. Users can measure liquids without contact. This lets them use sensors on many different types of liquids.
These include corrosive, thick, or dirty liquids. Such substances can harm or contaminate regular sensors. This non-contact feature also lowers the risk of sensor fouling. It ensures reliable operation over time with little maintenance.
Ultrasonic sensors provide accurate water level measurements. They can sense small changes in water levels. This makes them great for tasks that need careful monitoring.
Moreover, they have a fast response time, allowing for real – time monitoring of water levels. This quick response is important in flood control systems. Immediate detection of rising water levels can trigger alerts and preventive actions.
These sensors are also relatively easy to install. You can place them on top of a tank, reservoir, or other water-holding structures. This does not require complex plumbing or difficult installation.
Their installation options are flexible. Some models have wireless communication. This makes them suitable for new setups and for updating old systems.
Applications
Ultrasonic water level sensors find extensive use in various industries and applications. In the water and wastewater management sector, workers monitor the levels in water storage tanks, reservoirs, and treatment plants. This enables efficient management of water resources, ensuring that there is an adequate supply while preventing overflows.
Ultrasonic water level sensors are important for environmental monitoring. They measure water levels in rivers, lakes, and wetlands. This data is essential for flood forecasting, water quality assessment, and ecological studies. You can also use them in rainwater harvesting systems. They monitor how much water collects in storage tanks. This optimizes the use of this sustainable water source.
Installation and Usage Considerations
When you install an ultrasonic water level sensor, you need to consider several factors. First, ensure that the sensor has a clear line – of – sight to the liquid surface. Any obstacles, like pipes, structures, or floating objects, can disrupt the accurate measurement of ultrasonic waves. You should carefully set the sensor’s installation height. Base this on the highest and lowest expected water levels.
Ambient temperature has a significant impact on the speed of sound, and thus on the accuracy of the measurement. Many ultrasonic sensors have built-in temperature compensation. This feature automatically adjusts the measurement based on the surrounding temperature. However, for highly accurate applications, additional temperature sensors may be used to further refine the compensation.
Before use, most ultrasonic water level sensors require calibration. This means measuring the distance to a known object that is at a fixed spot. Then, adjust the sensor’s settings to match the measured value. Regular calibration, as recommended by the manufacturer, helps maintain the sensor’s accuracy over time.
Maintenance
Maintenance of ultrasonic water level sensors is relatively straightforward. Clean the surface of the transducer regularly. This helps remove dust, dirt, or other things that can affect ultrasonic waves. Check the connections for any signs of damage or loose cables. For sensors that can communicate wirelessly, check that the communication module is working well. Also, charge or replace the battery when needed.
Monitor the sensor’s performance regularly by comparing its readings with other reliable measurement methods or historical data. If someone finds any big differences, they may show a problem with the sensor. Then, you should take steps to fix it.
Conclusion
Ultrasonic water level sensors have revolutionized the way we measure liquid levels, offering a combination of accuracy, reliability, and versatility. Their non-contact operation, high precision, and wide range of uses make them essential tools in many industries. By learning how these sensors work, how to install them, and how to maintain them, users can get the most benefits. This will help ensure accurate and efficient water level monitoring. As technology keeps advancing, we can expect better performance from ultrasonic water level sensors. This will create new possibilities for measuring liquid levels.
