What Are Liquid Level Transmitters
In industrial automation, environmental monitoring, and other areas, liquid level transmitters are very important. They help keep operations efficient and safe. These devices measure the level of liquids in containers, tanks, or other storage vessels. They convert this information into a standard electrical signal. This signal can be easily sent, monitored, and analyzed. This article will look at the basic principles of liquid level transmitters. It will also show how CODA sensors improve their performance.
1. Understanding Liquid Level Transmitters
1.1 Definition and Function
A liquid level transmitter is a device that measures the height or amount of liquid in a container. It then converts this measurement into an electrical signal. This signal can be a 4 – 20 mA current loop, a 0 – 10 V voltage signal, or a digital protocol like Modbus. The goal of this conversion is to allow remote monitoring and control of liquid levels. This helps operators manage processes better, avoid overflows or shortages, and use resources wisely.
1.2 Working Principles
There are several types of liquid level transmitters, each operating on different principles:

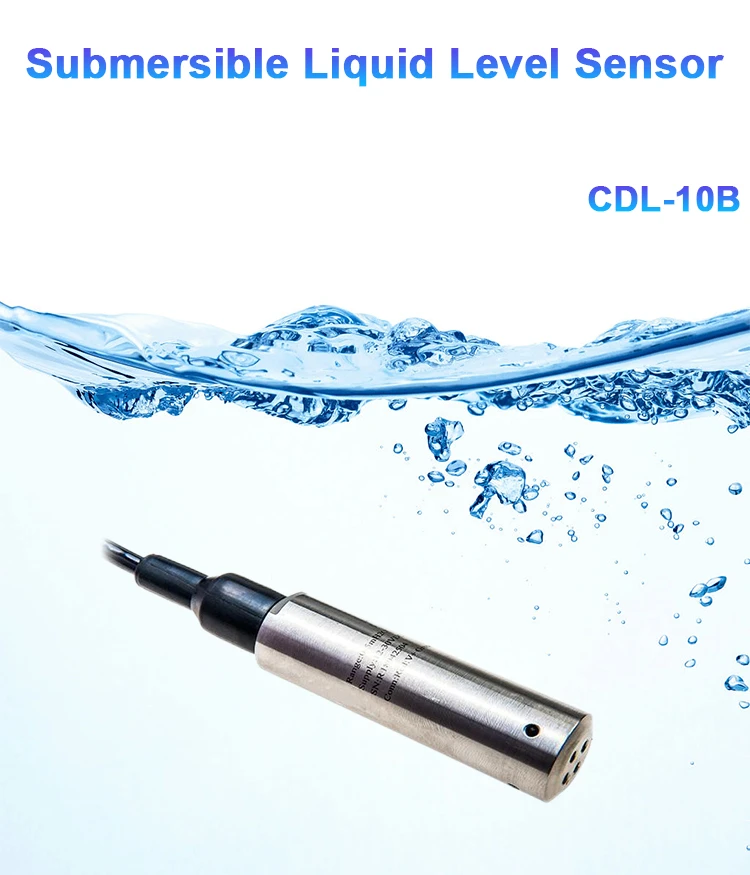

Hydrostatic Pressure – Based Transmitters: These rely on the hydrostatic pressure exerted by the liquid column. The pressure at the bottom of a tank is directly proportional to the height of the liquid above it and its density. A pressure sensor within the transmitter measures this pressure, and through calibration, the liquid level can be accurately determined.
Float – Type Transmitters: A float is attached to a rod or cable and is designed to rise and fall with the liquid level. As the float moves, it actuates a mechanism that converts the mechanical movement into an electrical signal. This could be done with a potentiometer. It changes its resistance based on the float’s position. Another option is a magnetic coupling system. This system sends the position to an external sensor.

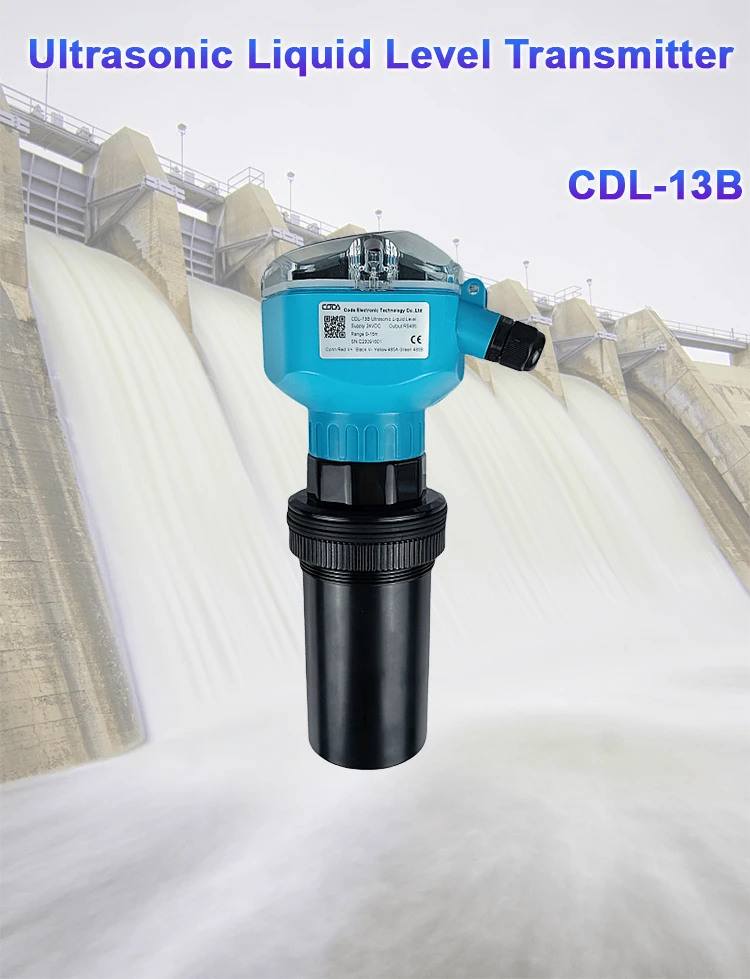

Ultrasonic Transmitters: These use ultrasonic waves to measure the distance from the transmitter to the liquid surface. The transmitter sends out an ultrasonic pulse. This pulse moves through the air above the liquid. It bounces back when it hits the surface of the liquid. By measuring how long it takes for the pulse to return, we can calculate the distance to the liquid surface. This helps us find the liquid level.
Radar Transmitters: Similar to ultrasonic transmitters, radar transmitters use electromagnetic waves instead of ultrasonic waves. They work well in many situations, even in tough conditions like high heat, pressure, and corrosive liquids. Vapor, dust, and other substances do not influence electromagnetic waves like they influence ultrasonic waves.
2. CODA Sensors: A Cut – Above in Liquid Level Sensing
Renowned for their innovation and reliability, have made significant contributions to the field of liquid level measurement. CODA is a top sensor manufacturer with over ten years of experience. We provide liquid level transmitters that use advanced technology and design.
2.1 Advanced Sensor Technology
CODA’s liquid level transmitters utilize state – of – the – art sensor elements that provide high – precision and stable measurements. For example, in their hydrostatic pressure – based models, CODA employs high – accuracy piezoresistive pressure sensors. These sensors can detect small changes in pressure. This ensures that we accurately record even tiny variations in liquid level. The sensors are made for great long-term stability. This reduces the need for frequent calibration and limits measurement drift over time.
2.2 Robust Design and Durability
CODA understands the harsh environments in which liquid level transmitters often operate. They build their products with robust materials and construction techniques to withstand extreme temperatures, corrosive chemicals, and mechanical vibrations. Manufacturers usually make the cases of CODA liquid level transmitters from high-quality stainless steel or strong plastics. These materials provide great protection against rust, chemical damage, and impact. This durability means the transmitters can work well in tough industrial places. These include chemical plants, oil refineries, and wastewater treatment facilities, where harsh conditions are common.
2.3 Intelligent Features
Many of CODA’s liquid level transmitters feature intelligent enhancements that improve their functionality. These include built-in microprocessors. They can process data on board. This includes tasks like linearizing sensor output, compensating for temperature, and diagnosing faults. Some models also support digital communication protocols, allowing for seamless integration with industrial automation systems. This enables remote configuration, monitoring, and calibration of the transmitters, reducing maintenance costs and improving operational efficiency.
3. Applications of CODA Liquid Level Transmitters
3.1 Industrial Process Control
In industrial manufacturing, precise liquid level control is essential for maintaining consistent product quality and preventing production disruptions. Industries such as chemical, pharmaceutical, and food and beverage widely use CODA liquid level transmitters. In a chemical plant, CODA’s radar-based liquid level transmitters can measure corrosive chemicals in storage tanks. They work well even with foam or vapor. This helps ensure safe and efficient production processes.
3.2 Water and Wastewater Management
In the water and wastewater treatment field, CODA liquid level transmitters are important. They help monitor water levels in reservoirs, tanks, and treatment plants. People often use hydrostatic pressure transmitters to measure water levels in wells and storage tanks. They provide real-time data for managing water distribution. In wastewater treatment plants, float-type and ultrasonic sensors monitor sludge and wastewater levels. This helps ensure proper operation and prevents overflows.
3.3 Environmental Monitoring
CODA sensors are also valuable in environmental monitoring applications. For example, in wetland conservation projects, ultrasonic liquid level transmitters can monitor water levels in marshes and swamps. This data is crucial for understanding the ecological health of these areas and for implementing effective conservation strategies. In groundwater monitoring, CODA’s pressure-based liquid level transmitters can measure water table levels accurately. This provides important information for managing water resources and understanding how human activities affect the environment.
In conclusion, liquid level transmitters are indispensable tools in numerous industries, enabling precise measurement and control of liquid levels. CODA sensors use advanced technology and strong design. Their smart features improve the performance of liquid level transmitters. CODA liquid level transmitters provide reliable and accurate solutions. They are useful in industrial process control, water management, and environmental monitoring. These transmitters help improve operational efficiency, safety, and environmental sustainability.
