Combined Wind Speed And Direction Sensor

Specifications

CDF-20B-Specifications

Item	Wind speed	Wind direction
Range	0-30m/s,0-50m/s,0-60m/s	0-360°
Resolution	0.1m/s	1°
Accuracy	±(0.3+0.03V) m/s	±1°
Power supply	12-24VDC
Output	0-5V/0-10V 4-20mA RS485 SDI-12
Starting Threshold	<0.3m/s
Operating Temperature	-30℃~ +70℃
Main material	aluminium alloy
Response time	<1s

Download

Datasheet

CDF-20B-Combined-Wind-Speed-Direction-Datasheet.pdf (274 downloads )

Accessories softwore

Bitboy

Modbus bitboy softwore (42744 downloads )

Modbus poll(64bit)

Modbus poll (43510 downloads )

Description

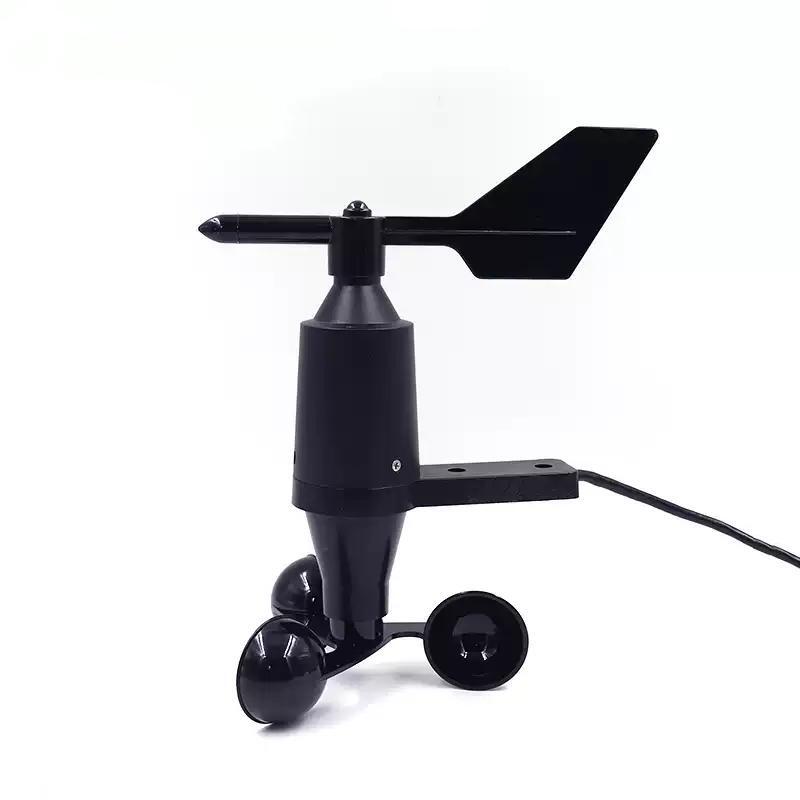

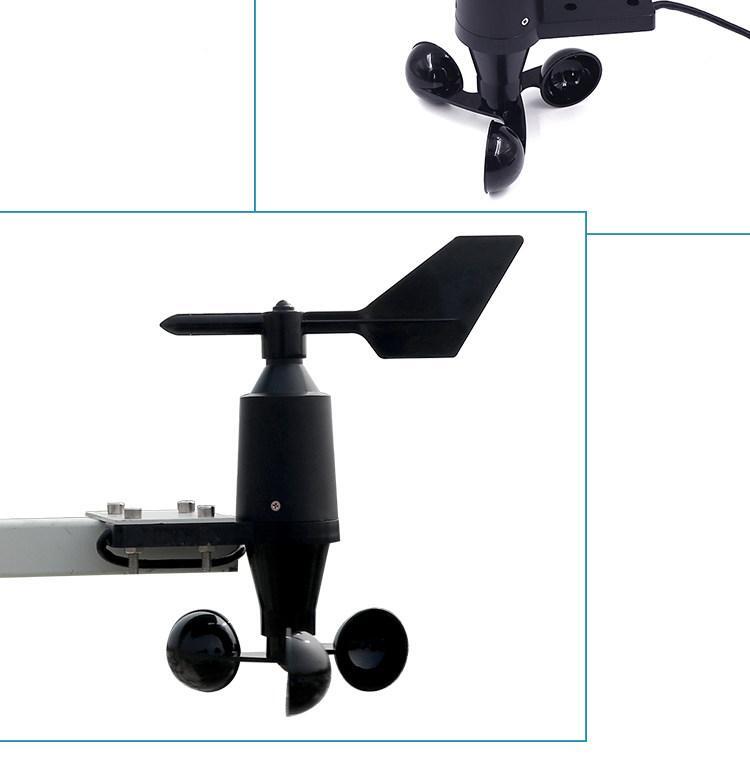

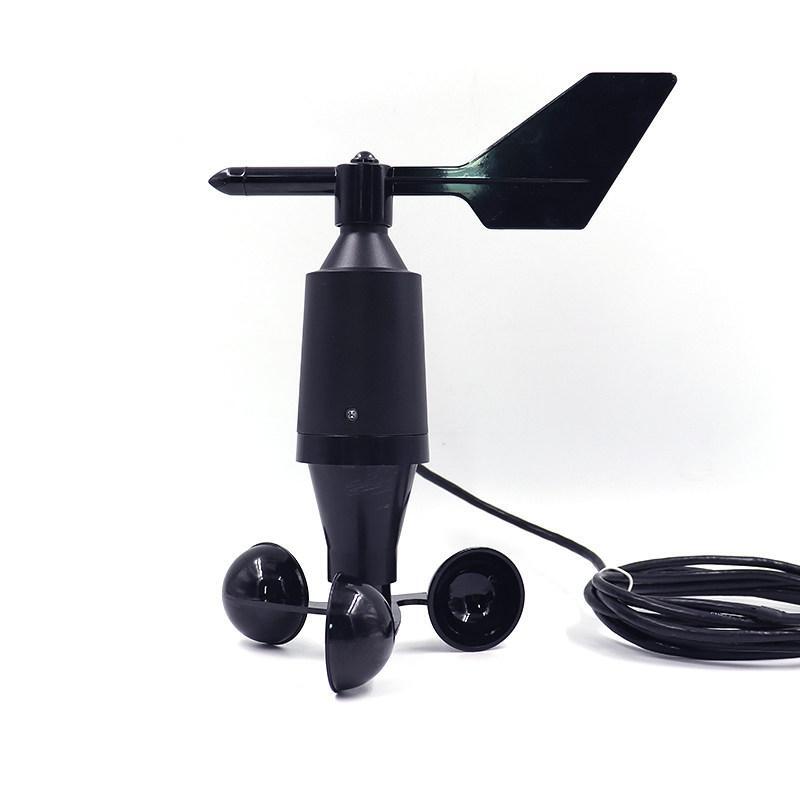

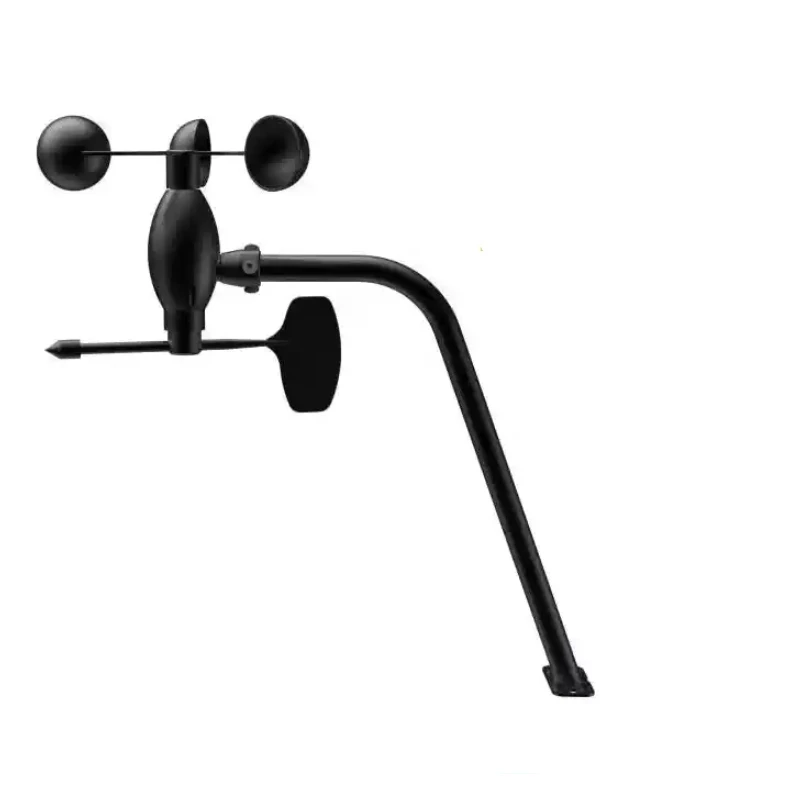

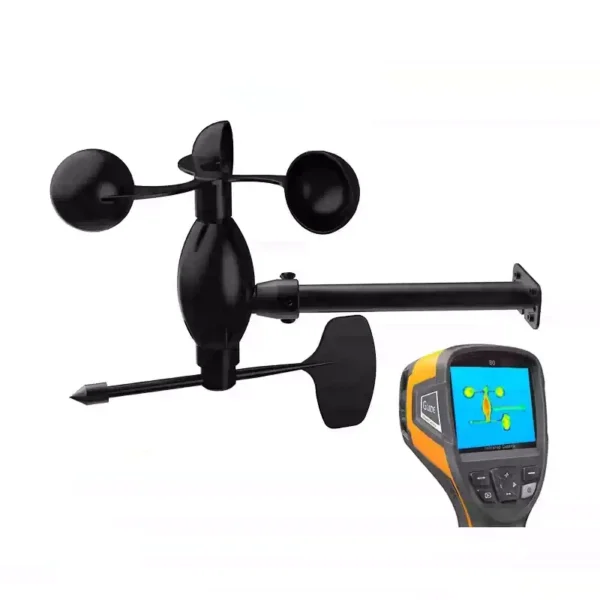

CDF-20B Combined Wind Speed & Direction Sensor

CDF-20B combined wind speed and direction sensor with aluminum alloy precision machined parts. This makes it have high strength and convenient installation. We adopt the traditional three-wind cup structure for the wind speed part. It has good starting performance, a large measuring range, good linearity, and is stable and reliable. The wind direction part adopts low inertia wind direction to respond to the wind direction. When the wind direction changes, the tail wheel drives the angle sensor to sense the azimuth change, thereby generating a change of electrical signal output, good linearity, high precision, and no blind zone.

Dimnsion & Mounting

Wind Speed And Direction Sensor

Application

Meteorological environment monitoring：

◉In the meteorological station, the combined wind speed and direction sensor is one of the basic meteorological observation equipment. It is able to measure wind speed and direction data in real time and accurately, and transmit these data to the meteorological data processing center.

◉The integrated wind speed and direction sensor can be used in conjunction with other atmospheric environment monitoring devices, such as air quality monitors. Wind speed and direction data are helpful to analyze the diffusion path and range of air pollutants.

Industry and energy:

◉In industrial plants and workshops, we can use small wind speed and direction sensors to monitor the operation of ventilation systems. By measuring the wind speed and direction at different locations in the workshop, we optimize the design and operation parameters of the ventilation system to ensure good air quality in the workshop and meet the requirements of production and personnel health.

Navigation field:

◉The installation of small wind speed and direction sensors on the ship can provide the crew with real-time information on the wind conditions at sea. In ocean sailing, the crew adjusts the ship’s course and speed according to wind speed and direction to ensure safe and efficient navigation.
