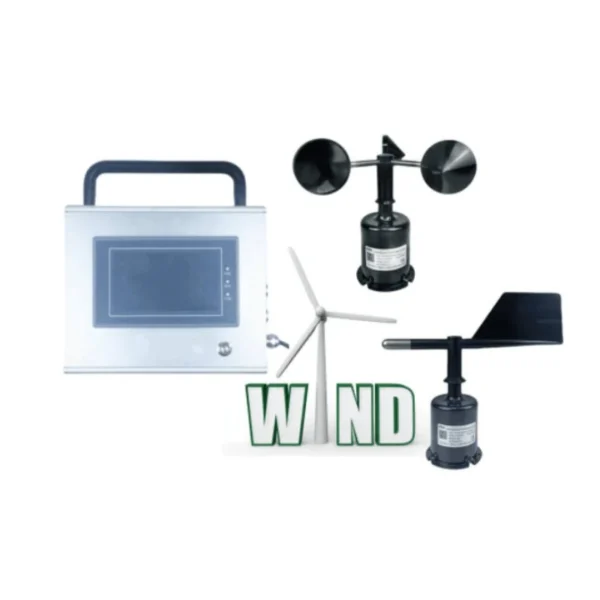

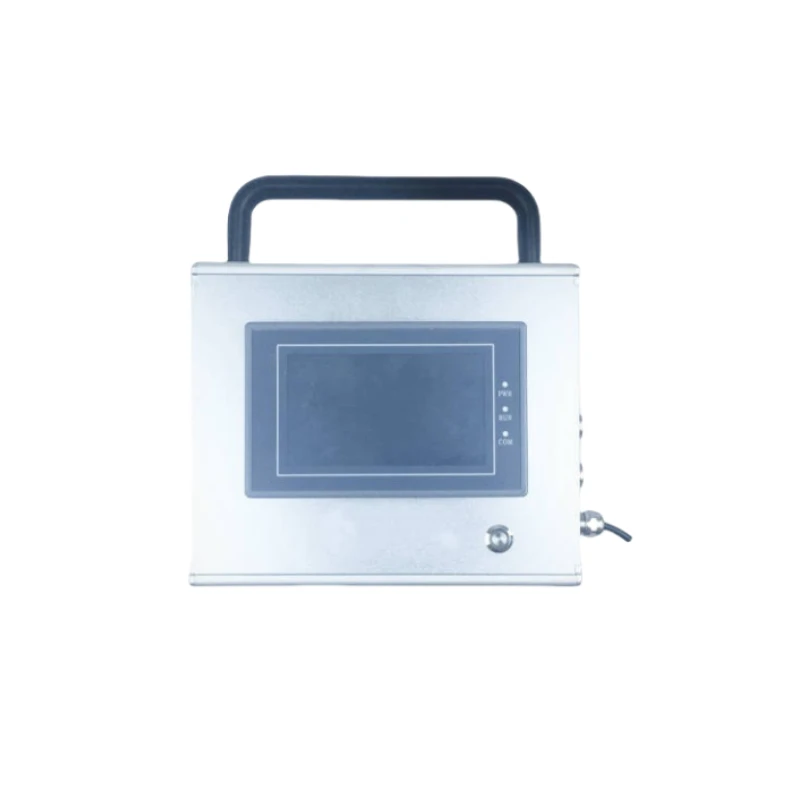

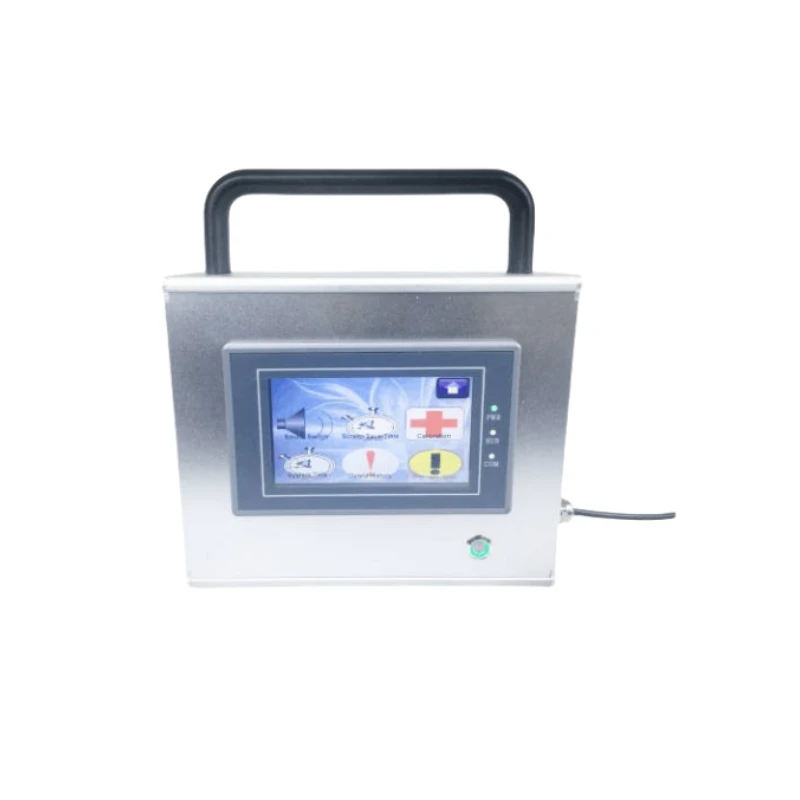

CDF-26B Wind Speed & Direction Display Recorder

Specifications

CDF-26B-Specifications

ItemWind speed (CDF-10A)Wind direction (CDF-11A)
Range0-45m/s0-360°
Resolution0.1m/s
Accuracy±(0.3+0.03V) m/s±3°
Power supply12VDC (adapter AC100V-AC240V)

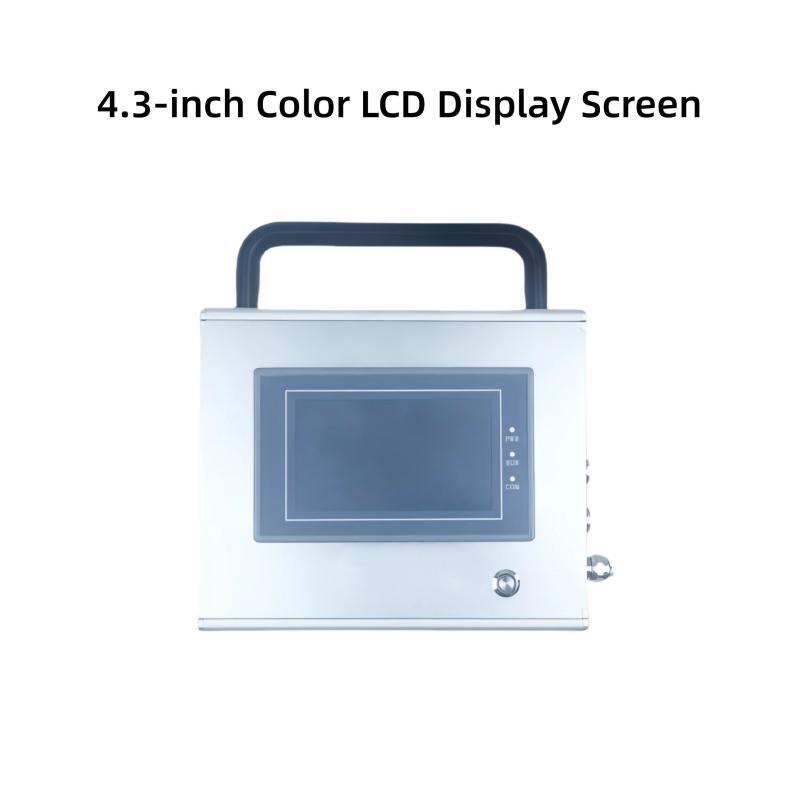

Display4.3” color touch screen
Response time<500mS
Storage capacity65000 pieces of data can be stored.
Recording time interval1min to 240 min optional
Measurement parameters32 Max.
Power consumption<4W
Operating temperature-40℃-+70℃@5%RH~95%RH
HMI processorARM RISC 528MHz
Relay and alarm outputCustomized alarm and relay control output

Download

Accessories softwore

Description

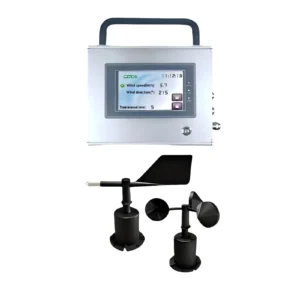

CDF-26B WIND SPEED DATA LOGGER & DIRECTION DISPLAY RECORDER

The CDF-26B is a device that logs data. It measures and records how fast the wind blows and which way it goes. It is a weather tool and has a high-definition display.

This display shows the date, time, wind speed, and direction. We include a large flash memory chip. It can store automatic weather data logging interval for at least one year.

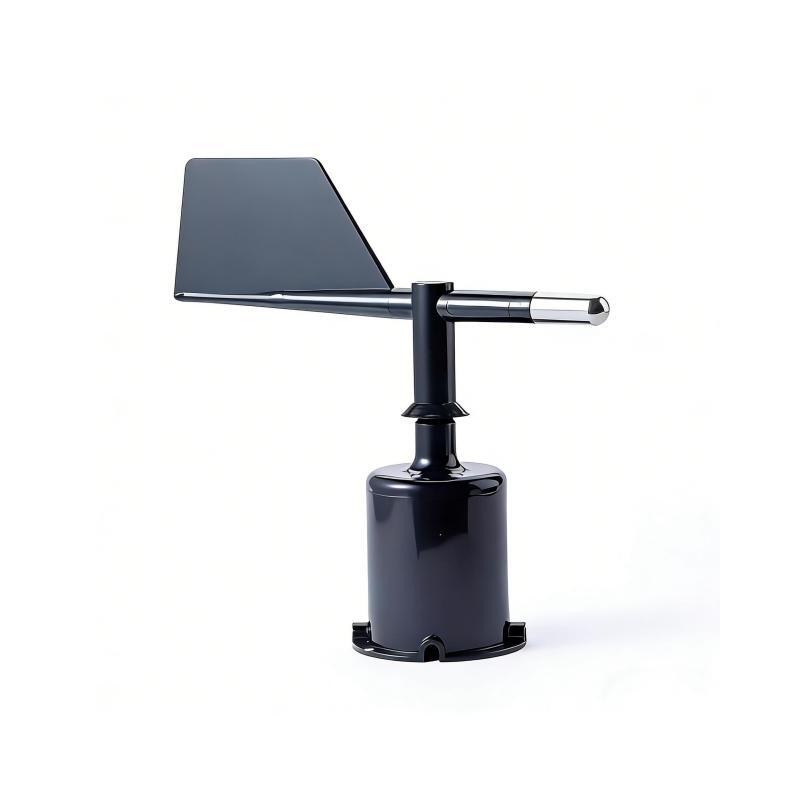

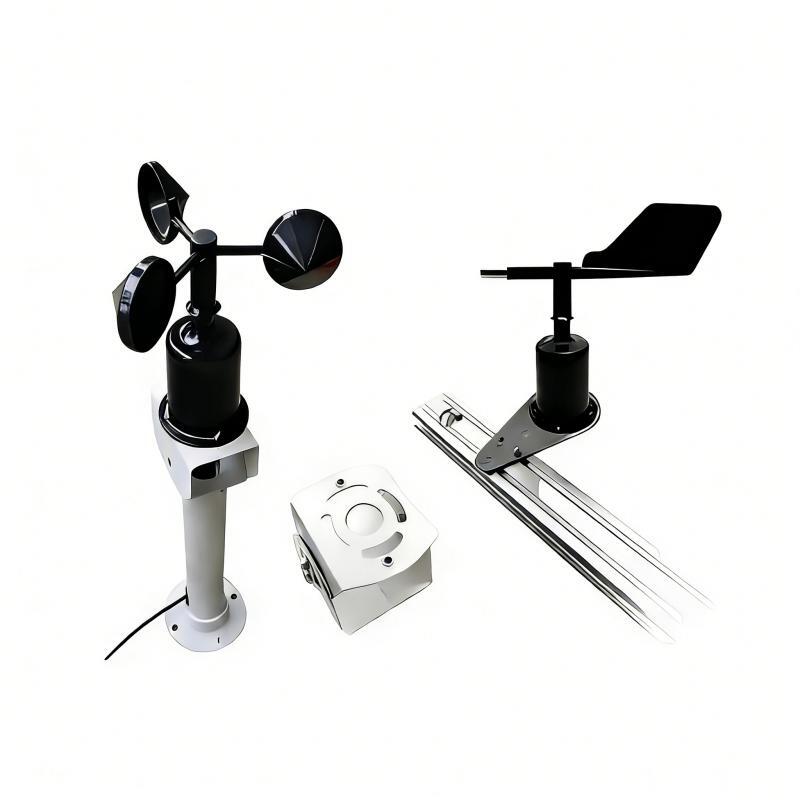

We use it a lot in weather, farming, forestry, environmental protection, marine studies, airports, ports, and research. A complete set of products comes with the CDH-TEA data logger. The default settings are CDF-10A and CDF-11A. The CDH-TEA data logger can use either the CDF-21A or the CDF-22A.



WIND SPEED DATA LOGGER & DIRECTION DISPLAY RECORDER


APPLICATIONS

Agricultural Meteorological Station

Agricultural Meteorological Station

Greenhouse Weather Station

Greenhouse Weather Station

Meteorological Monitoring For Expressway

Meteorological Monitoring For Expressway

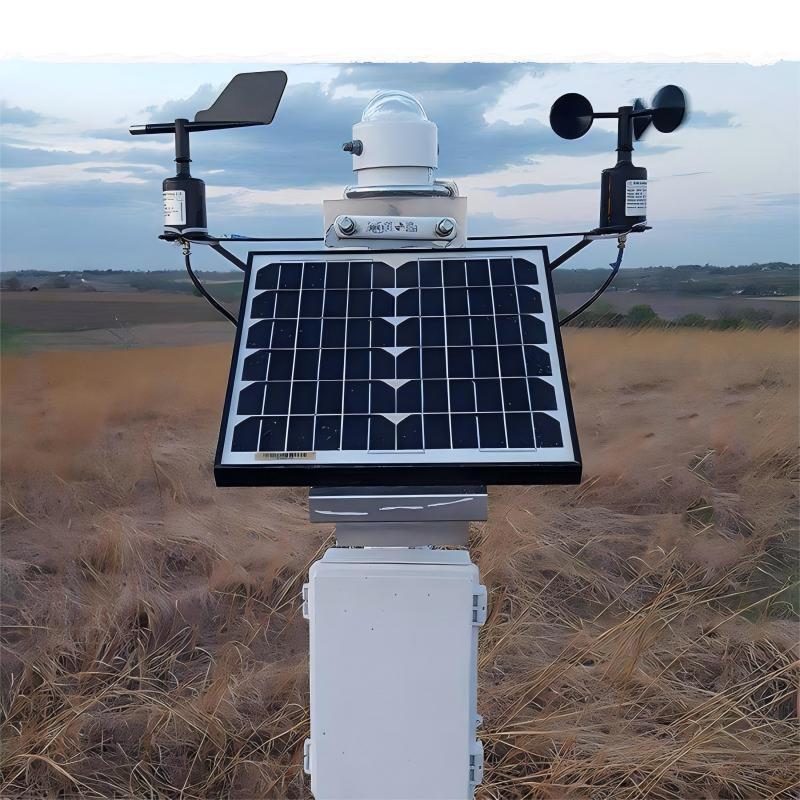

Weather Station

 Monitoring For High-altitude Facility

Weather Station

Seawater Transportation Monitoring

Weather Station

Wind Power Generation

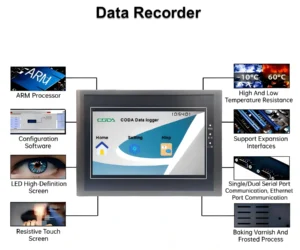

DETAILS SHOW



WIND SPEED DATA LOGGER & DIRECTION DISPLAY RECORDER



CERTIFICATE







MAINTAIN



Regularly clean the sensor surface to avoid dust, dirt or debris affecting measurement accuracy.

Check and tighten the mounting bracket and cables to prevent loosening caused by wind or vibration.

Inspect the power supply and battery regularly to ensure stable operation and normal data recording.

Calibrate the wind speed and direction sensor periodically to guarantee measurement precision.

Keep the data storage and display module dry and avoid long-term exposure to moisture or direct sunlight.

Replace damaged or aging parts such as bearings and cables in time to ensure normal operation.

Additional information

Model

CDF-26B

OEM/ODM

Available

MOQ

1PCS

Lead Time

5-7 days

Certification

CE-EMC, RoHS, ISO9001

Size

60cm*62cm*40cm

Weight

2.27KG

Payment

T/T, L/C or Credit-card

FAQ

1. Q: What wind speed and direction ranges can the recorder measure?

A: Typical wind speed range is 0–60 m/s, accuracy ±0.3 m/s. Wind direction range is 0–360°, accuracy ±3°.

2. Q: How much data can the device store?

A: Built-in memory supports over 65535 data points.

3. Q: What data output interfaces are supported?

A: Standard interfaces include RS485 (Modbus-RTU), USB, and optional 4G, LoRa, Wi‑Fi for remote transmission.

4. Q: What is the data logging interval?

A: Sampling and recording interval is adjustable from 1 second to 24 hours, set via software or display panel

5. Q: Can I export recorded data to a computer?

A: Yes. Data can be exported in CSV format for analysis and archiving.

6. Q: How is the device powered?

A: It supports DC 12–24V power supply, and can be equipped with a solar panel and battery for off-grid sites.

7. Q: Does the sensor need regular calibration?

A: For high accuracy, annual calibration is recommended. Calibration can be done using a standard wind tunnel or factory calibration service.

8. Q: Can it connect to SCADA or PLC systems?

A: Yes. It supports standard Modbus protocol and can be directly integrated with PLC, host computer, and environmental monitoring platforms.

9. Q: What applications is it suitable for?

A: Weather stations, wind farms, ports, bridges, environmental monitoring, smart cities, agriculture, and industrial IoT.
