How to Read Data from a Modbus RS485 Temperature Sensor
In industrial and commercial applications, accurately monitoring temperature is crucial. Many users widely utilize Modbus RS485 Temperature Sensor because they offer reliability and can communicate over relatively long distances. This article will guide you through the process of reading data from such a sensor.
Understanding Modbus and RS485
Modbus Protocol
Modbus is a serial communication protocol that enables communication between intelligent devices, such as sensors and controllers. It has two main modes: ASCII and RTU (Remote Terminal Unit). The RTU mode is more commonly used as it offers higher data density and faster communication speeds. In Modbus RTU, data is sent in binary format. Each data frame has four parts: an address field, a function code field, a data field, and a cyclic redundancy check (CRC) field.
RS485 Interface
RS485 is a physical layer standard for serial communication. It uses a differential signaling method, which means it transmits data using two wires (A and B). This differential signaling provides better noise immunity and allows for longer communication distances compared to other serial interfaces like RS232. RS485 allows multi-drop communication. This means many devices can connect to the same bus. It is great for applications where several sensors connect to one master device.
Hardware Setup
Connecting the Temperature Sensor
Power Connection: First, ensure that the Modbus RS485 temperature sensor is properly powered. Most sensors operate on a specific DC voltage, such as 12V or 24V. Connect the positive and negative power supply wires to the corresponding terminals on the sensor.

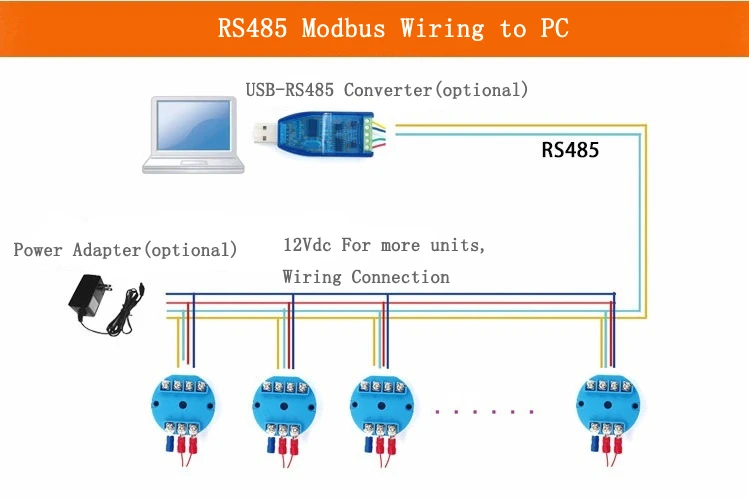

RS485 Wiring: Connect the RS485 output from the temperature sensor to the RS485 interface of the master device. This could be a PLC, a MCU with an RS485 module, or a PC with an RS485 adapter. Connect the A wire of the sensor to the A wire of the master device. Then, connect the B wire of the sensor to the B wire of the master device. In some cases, there may be a ground wire (GND). This wire should connect to the ground of the master device. This connection helps ensure proper electrical isolation.
Master Device Setup
PC with RS485 Adapter: If you are using a PC as the master device, you need to install an RS485 adapter. These adapters are usually USB – to – RS485 converters. Install the driver software provided by the adapter manufacturer. After installation, the adapter will appear as a virtual serial port in the device manager. Note down the COM port number assigned to the adapter.
If you are using a PLC or a MCU, ensure it has an RS485 communication module. It should also have built-in RS485 capabilities. Set up the communication settings in the PLC or MCU programming environment. This includes the baud rate, data bits, parity, and stop bits. These settings should match the settings of the temperature sensor.
Configuration
Sensor Configuration
Address Setting: Each Modbus device on the network must have a unique address. The temperature sensor usually has a way to set its address, either through dip switches or software configuration. Set the address of the temperature sensor to a value that is not already in use on the RS485 network. For example, if there are no other devices on the network yet, you can set the sensor’s address to 1.
Communication Parameters: The sensor also needs to be configured with the correct communication parameters. This includes the baud rate, like 9600, 19200, or 38400 bps. It also includes data bits, which are usually 8 bits. Parity can be none, even, or odd. Finally, there are stop bits, which are usually 1 or 2 bits. These settings must match the settings on the master device for successful communication.
Master Device Configuration
Software Configuration: If you are using a PC with Modbus master software like Modbus Poll, open the software. Then, set up the following settings:
Serial Port Selection: Select the COM port that corresponds to the RS485 adapter.
Baud Rate, Data Bits, Parity, Stop Bits: Set these values to match the settings of the temperature sensor.
Slave Address: Enter the address of the temperature sensor that you set in the previous step.
To program a PLC or MCU, you must write code. This code will help it talk to the temperature sensor. In the code, you will set up the RS485 communication interface. Make sure to use the right parameters. Then, use Modbus functions to read data from the sensor. For example, in a Python program using the pymodbus library to communicate with a Modbus RTU device.
Reading Data
Using Modbus Function Codes
To read Modbus RS485 Temperature Sensor, the master device sends a Modbus query with the appropriate function code. The most common function code for reading data from a holding register is code 03. This is where the temperature value is usually stored. The master device includes the starting register address and the number of registers to read in the query. The sensor responds with the data stored in those registers.
Data Interpretation
Once the master device receives the data from the sensor, it needs to interpret the data correctly. The temperature value is usually stored in the register as a raw binary value. The sensor’s datasheet will provide information on how to convert this raw value to an actual temperature reading. For example, you may need to divide the raw value by a specific number. You might also need to change it linearly to get the temperature in degrees Celsius or Fahrenheit.
Troubleshooting
Communication Errors
Check Wiring: Ensure that all connections are secure and that there are no loose wires.
– Check the configuration.
– Ensure the communication settings are correct. This includes baud rate, data bits, parity, and stop bits.
– Verify that the device addresses are correct on both the sensor and the master device.
Power Issues: Make sure that both the sensor and the master device are receiving proper power.
Incorrect Data Readings
Calibration: Check if the sensor needs calibration. If the readings are consistently off, calibration may be required.
Register Mapping: Ensure that you are reading the correct registers. The sensor’s datasheet should clearly define which register stores the temperature data.
