How to Measure Sunshine Hours
Sunshine hours are a crucial climatic parameter, providing valuable insights into the amount of direct solar radiation received at a particular location. Accurately measuring sunshine hours benefits multiple fields, including agriculture, solar energy production, climate research, and tourism planning. Here are several common methods used to measure sunshine hours.
Campbell – Stokes Recorder

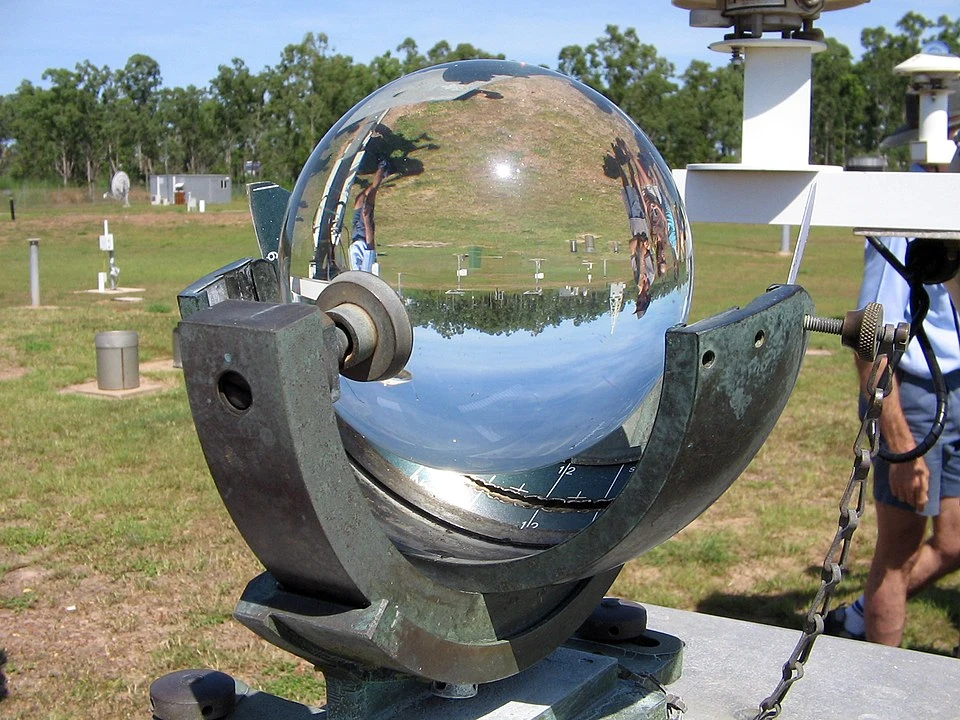

One of the oldest and most traditional instruments for measuring sunshine hours is the Campbell – Stokes recorder. This device consists of a spherical glass ball mounted on a stand with a curved, grooved metal receiver. When the sun’s rays pass through the glass ball, the glass ball focuses them onto the receiver. The concentrated sunlight burns a trace on a special card placed in the groove of the receiver.
The recorder operates on the principle that direct sunlight is intense enough to cause the card to char. At the end of each day, someone measures the length of the burned trace on the card. A standard calibration converts this length into the number of sunshine hours. While simple in design and relatively inexpensive, this method has some limitations.
Sunlight intensity influences it. On hazy days or those with weak sunlight, the burn mark may be unclear, causing inaccurate measurements. Additionally, it requires manual inspection and measurement of the card, which can introduce human error.

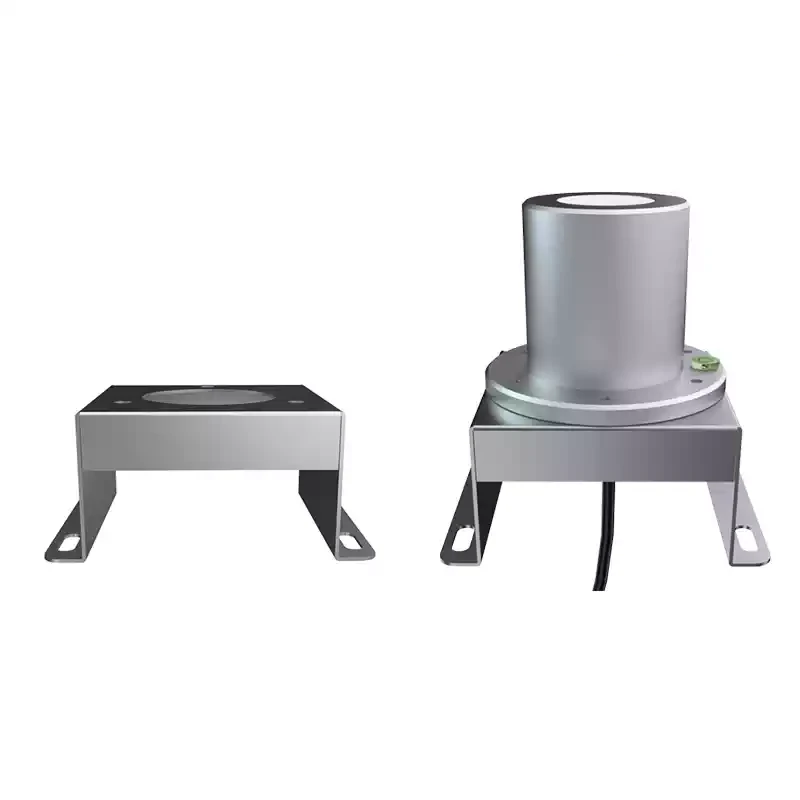

Sunshine Recorders Based on solar power Cells
Modern technology has given rise to more sophisticated sunshine measurement devices, such as those using solar power cells. Engineers design these sensors to detect the intensity of direct solar radiation. Solar power cells operate based on the solar power effect.
When sunlight photons hit the cell material, they generate an electric current. The strength of this current is directly proportional to the intensity of the incident sunlight.
To measure sunshine hours, the user sets the device with a certain threshold value. As long as the sunlight intensity remains above the threshold, the timer continues to run. Once the intensity drops below the threshold, the timer stops.
At the end of a set time, usually daily, we calculate sunshine hours. This is the total time when sunlight is above a certain level. These sensors are more accurate than the Campbell – Stokes recorder. Additionally, you can readily incorporate them into automated weather stations, enabling continuous and remote tracking of sunshine hours.
Pyranometers with Sunshine Detection Capabilities
Researchers widely use pyranometers to measure total solar intensity (direct and diffuse) on a horizontal surface. Some advanced pyranometers have additional features to distinguish direct and diffuse radiation, allowing them to measure sunshine hours. These pyranometers use a combination of optical and electronic components.
They typically have a shading mechanism or a specific algorithm that analyzes the incoming radiation. When direct sunlight becomes stronger than diffuse light, we call it direct sunlight. We count this time as sunshine hours. Pyranometers provide more comprehensive information about solar radiation compared to other dedicated sunshine – measuring devices, as they can measure both direct and diffuse components.
Satellite – Based Measurements
In recent years, satellite-based remote sensing has become a key way to estimate sunshine hours over large areas. Satellites have sensors that can detect different features of the Earth’s atmosphere and surface. This includes finding clouds. Cloud cover is a major factor affecting sunshine hours, as clouds block or scatter sunlight.
Satellite sensors on geosynchronous and polar-orbiting satellites use different spectral bands. They analyze how light reflects and transmits. Algorithms can analyze cloud cover patterns. They track how these patterns change over time. This helps them estimate when the sky will be clear in various locations.
These clear-sky periods translate into estimates of sunshine hours. Satellite measurements can keep track of large areas. This includes remote oceans and mountains where ground data is limited or hard to get. However, their sunshine hour estimates may be inaccurate due to satellite sensor spatial resolution and cloud property retrieval uncertainties.
conclusion
Measure sunshine hours using various methods, each with unique advantages and limitations. Traditional tools like the Campbell-Stokes recorder are simple to use. In contrast, modern devices use solar power cells and pyranometers. These new tools offer better accuracy and more automation. Satellite – based measurements play a crucial role in large – scale monitoring. For different applications (e.g., local weather monitoring to global climate studies), suitable measurement techniques (single or combined) can provide reliable sunshine hour data.
