How Does a Cup Anemometer Work?

How Does a Cup Anemometer Work?

Wind speed is a crucial meteorological parameter with far – reaching implications, from weather forecasting and aviation safety to wind energy production and agriculture. The cup anemometer is key for measuring wind speed. It is a simple but very effective tool. Meteorologists and professionals in other fields have used this device for decades. This article will look at how a cup anemometer works. It will discuss its design, how it operates, and the science behind its accurate wind speed measurements. How Does a Cup Anemometer Work?

The Design of a Cup Anemometer

A typical cup anemometer has a vertical shaft. It has three or four hemispherical cups on the top. Place these cups evenly around the shaft. For a three-cup anemometer, use 120-degree intervals. For a four-cup version, use 90-degree intervals. The horizontal arms stick out from the central shaft and hold the cups. Designers create them so their open sides face the same way. This configuration ensures that the cups are sensitive to the wind from all directions.

Manufacturers usually make the cups from lightweight materials such as plastic or aluminum. Using lightweight materials is important. It helps the anemometer respond quickly to changes in wind speed. This reduces any delay in measuring. A bearing system holds the main shaft of the anemometer. This lets it spin easily with little friction. This free rotation is important for measuring wind speed accurately. Any resistance in the shaft can cause wrong readings.

Cup Anemometer Work Principles

The main idea of a cup anemometer is how the wind pushes on the cups. When the wind blows, it creates a pressure difference between the inside and outside the cups. The side of the cup facing the wind experiences higher air pressure, while the opposite side has lower pressure. This pressure difference generates a torque that causes the cups to rotate around the central shaft.

As the cups rotate, their speed is directly proportional to the speed of the wind. The faster the wind blows, the greater the pressure difference, and the more rapidly the cups will spin. This link between wind speed and cup rotation speed is key for measuring wind speed with a cup anemometer. To convert the rotational speed of the cups into a meaningful wind speed measurement, someone calibrates the anemometer.

Calibration Process

Calibration is a crucial step in ensuring the accuracy of a cup anemometer. During calibration, technicians test the anemometer with known wind speeds. Researchers conduct this in a wind tunnel or a controlled setting. They measure the speed of the cups accurately. People use methods like optical sensors or magnetic pickups to accomplish this. The data from these measurements helps show the link between cup rotation speed and actual wind speed.

People typically express this relationship as a calibration curve or an equation. A simple linear equation can show the relationship between the cups’ revolutions per minute (RPM) and wind speed. We measure this wind speed in meters per second. Once you calibrate the anemometer, you can use this equation. It converts the cup rotation speed into an accurate wind speed reading for real-world use.

Data Acquisition and Measurement

In modern cup anemometers, data acquisition is often automated. An electronic sensor, like a Hall effect sensor or an optical encoder, detects the rotation of the cups. These sensors generate electrical signals that are proportional to the rotational speed of the cups. An electronic circuit or a data logger then processes these signals and converts them into digital data.

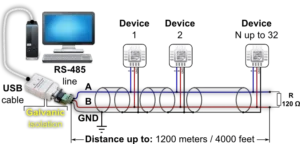

Digital data can be sent in two ways. It can be sent wirelessly. You can also send it through a wired connection. This data can go to a remote locati0n, such as a weather station or a computer. At the receiving end, someone analyzes the data. It is then shown in a user-friendly way. This can be a number or a graph. The graph displays how wind speed changes over time. Some advanced cup anemometers have built-in memory. This lets them store past wind speed data for later analysis.

Limitations and Considerations

While cup anemometers are widely used and highly reliable, they do have some limitations. One of the main limitations is their sensitivity to wind direction. Cup anemometers measure wind speed. However, they do not show the direction of the wind. To determine wind direction, you need a separate device, such as a wind vane.

Another limitation is that cup anemometers may not be very accurate in low or high wind conditions. In low-wind conditions, the wind may not create enough torque on the cups. This can lead to friction in the bearing system, causing inaccurate readings. In high-wind conditions, the cups can spin very fast. The anemometer may not measure wind speeds accurately above a certain point.

Additionally, environmental factors such as rain, snow, and dust can affect cup anemometers. These factors can accumulate on the cups and interfere with their rotation, leading to inaccurate measurements. Regular maintenance is important. This includes cleaning the cups and checking the bearing system. It helps keep the anemometer accurate.

conclusion

The cup anemometer is a remarkable device that has revolutionized the way we measure wind speed. Its simple and effective design uses aerodynamics and calibration. This allows for accurate and reliable wind speed measurements in many applications. The cup anemometer has some limits, but it is still an important tool. Meteorologists, environmental monitors, and professionals in other fields use it. This tool gives us valuable data. It helps us understand and interact with the natural world better.
