What is rain gauge sensor?

A rain gauge sensor, often referred to as a pluviometer or simply a rain sensor, is a device used to quantify the amount of rainfall or precipitation in a specific location over a designated period. Its primary function is to collect and measure rainwater within defined parameters of size and height. We utilize these sensors for both manual and automated rainfall measurements

Rain gauge sensors play a crucial role for professionals such as meteorologists, hydrologists, and environmental scientists who monitor and study precipitation trends and patterns. In addition to their scientific applications, people also employ them in practical systems like irrigation management, flood warning networks, and weather monitoring stations.

Several types of rain gauge sensors exist, each designed for specific use cases. The most common varieties include:

– **Tipping Bucket Rain Gauges:**

These gauges use a pivoting bucket mechanism that tips over after accumulating a specific amount of water, providing precise rainfall measurements.

– **Weighing Precipitation Gauges:**

These gauges determine rainfall by measuring the weight of the collected water.

– **Optical Rain Gauges:**

Using laser or infrared beams, these devices detect raindrops and calculate rainfall based on drop size and frequency.

The working principle of all rain gauges centers on collecting and quantifying precipitation. Traditional rain gauges feature a straightforward yet efficient design for accurate measurements.

Traditional Rain Gauge Working Process:

1. **Rainwater Collection:** A cylindrical container with a wide mouth collects rainwater. Typically, meteorologists or relevant workers position the gauge on flat ground in an open area, away from trees or buildings, to ensure unobstructed water collection.

2. **Funneling System:** Rainwater flows through a funnel into a tapered tube or measuring cylinder, which helps provide accurate measurements, even for minimal rainfall.

3. **Measurement Scale:** The measuring cylinder is marked with a readable scale (in millimeters or inches) that reflects the accumulated rainfall.

4. **Recording Data:** We take regular readings by observing the collected water. Depending on the device type, this can involve manually noting and emptying the system or using automated sensors to log data electronically.

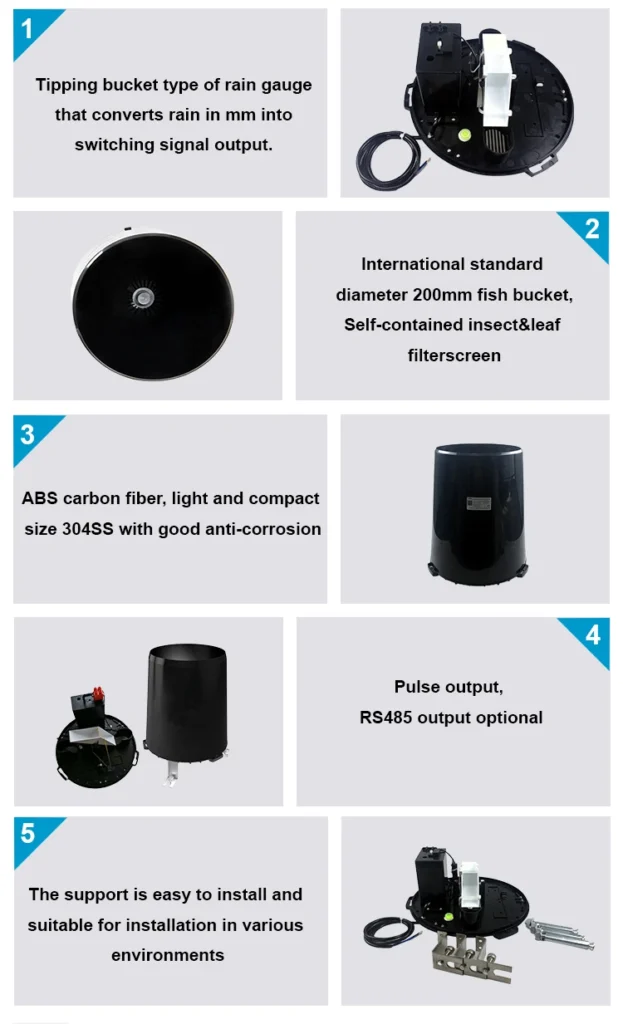

Tipping Bucket Rain Gauge: How It Works

The tipping bucket rain gauge is one of the most widely used rain-sensing tools, operating on a fundamental see-saw or tilting bucket mechanism:

1. **Rain Collection:**

At the top of the device is a funnel that directs rainwater into one of two small compartments (buckets). Each bucket has a fixed capacity, typically between 0.2 to 0.5 mm of water.

2. **Tilting Mechanism:**

As one bucket fills up with water and reaches its threshold, it tips over, emptying itself and simultaneously positioning the second bucket to collect incoming rainwater.

3. **Switch Activation:**

Every time a bucket tips, it activates an internal switch (e.g., reed switch), registering the event as a set amount of rainfall. Each tip represents an exact quantity of precipitation.

4. **Calibration for Accuracy:**

The device must be adjusted to ensure dependable measurements. Calibration involves verifying the volume of water needed to cause each bucket to tip, which depends on the gauge’s design.

5. **Data Collection:**

The total number of bucket flips provides a cumulative reading of precipitation over time. We can record this data manually or, for real – time monitoring, automatically using a connected data logger or weather station.

conclusion

Tipping bucket rain gauges are popular due to their simplicity, reliability, and low maintenance requirements. They offer discrete precipitation measurements and are effective for both manual and automated monitoring applications.

In addition to these, electronic or automatic rain gauges equipped with sensors can measure rainfall and record data without the need for manual effort. These advanced devices are capable of providing real-time measurements and enabling continuous precipitation monitoring.

In essence, the primary function of a rain gauge revolves around collecting and accurately measuring rainfall, delivering critical data to meteorologists, hydrologists, and other professionals who depend on precise insights into precipitation patterns and trends. Rain gauge sensors play a vital role in tracking rainfall, which is a key element across various sectors such as agriculture, water management, weather forecasting, and disaster preparedness.

In meteorological monitoring, CODA, with strong expertise and extensive experience, has developed various monitoring solutions for customers.

CODA provides suitable solutions for every situation. This covers complex cities, vast wilderness, farming’s precise needs, and special industries such as aerospace and shipping.

When it comes to monitoring weather in cities, we set up a lot of smart sensors. These sensors unceasingly gather crucial data, including temperature, humidity, air pressure, wind speed and direction, and air quality. This helps city planners and environmental protection workers prepare ahead of time for weather – related disasters and pollution problems. As a result, city dwellers can enjoy a better quality of life and stay safe.

In agriculture, our tailored weather monitoring plan precisely measures things like soil moisture, rainfall patterns, and sunlight levels. This scientific data helps farmers plan farming well. They can then decide the best ways to water and fertilize their crops.It helps make farming smarter and more productive.
