What is Optical Sensor​ ?

What is Optical Sensor​

In today’s world of advanced technology, optical sensors are very important in many industries. They change how we detect, measure, and interact with our environment. But what is an light sensor? It is a device that detects light signals. It measures these signals and converts them into electrical signals. You can use this data for further processing and analysis. This article will look at how sensors work, their types, applications, and future trends.

Working Principles​

At the center of an optical sensor is how light interacts with matter. When light hits an object, its properties can change. These properties include intensity, wavelength, polarization, and phase. Designers create photoelectric sensors to capture these changes. They then turn the changes into useful information.

An optical sensor has three main parts: a light source, a sensing element, and a detector. The light source sends light to the object or area you want to measure. The sensing element can be a light-sensitive material, a fiber optic probe, or a micro-optical structure. It interacts with light and changes based on what is measured. This can include temperature, pressure, distance, or chemical concentration. Finally, the detector captures the light signal and turns it into an electrical signal. An electronic circuit then processes this signal to give you the measurement result you need.

For example, in a basic light sensor, the light source sends out a beam of light. When the light hits an object, some of it bounces back to the detector. The amount of reflected light depends on the object’s surface and how far it is from the sensor. The detector measures the strength of the reflected light and changes it into an electrical current or voltage. The sensor studies the electrical signal. It can tell if the object is present. It can also measure how far away the object is. Additionally, it can determine how much the object reflects.

Types of Optical Sensors​

Optical sensors can be classified into different types. This classification is based on how they work and what they are used for.

Photoelectric Sensors​

Photoelectric sensors are common optical sensor. They work on the photoelectric effect. This effect happens when light hits a light-sensitive material. This causes electrons to be released, creating an electrical current.

You can divide photoelectric sensors into three types: through-beam, diffused-reflective, and retro-reflective sensors. Through-beam probes have a separate transmitter and receiver. They detect objects by breaking the light beam between them.

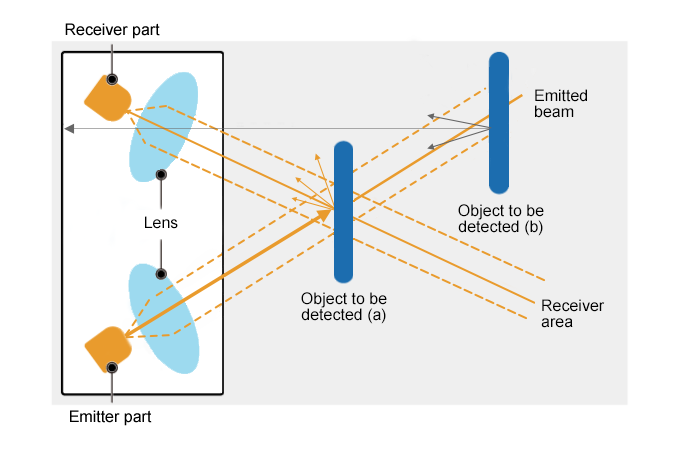

Diffused reflective probes find light that bounces off an object. Retro-reflective sensors use a reflector to send light back. These probes are used in factories, robots, and security systems. They help detect objects, count items, and sense positions.

Fiber Optic Sensors​

Fiber optic sensors use optical sensing fibers to sense things. These fibers can send light far with little loss. They are not affected by electromagnetic interference. This makes them great for harsh environments and remote sensing.

Fiber optic sensors can measure a wide range of physical quantities, such as temperature, pressure, strain, and chemical concentration. In a fiber optic temperature sensor, the fiber’s refractive index changes with temperature.

This change affects how converts light moves through the fiber. By measuring device these changes in the light signal, we can find the temperature accurately. Fiber optic sensors are often used in aerospace, oil and gas exploration, and medical diagnostics.

Spectroscopic Sensors​

Spectroscopic sensors look at how light interacts with matter at different wavelengths. Each substance has a unique spectral signature. This signature helps us identify and measure the substance.

Spectroscopic sensors include UV-Vis spectrometers, IR spectrometers, and Raman spectrometers. Researchers use these tools to analyze chemicals, monitor the environment, and check food quality.

An IR spectrometer can find specific chemical bonds in a sample. It measures how much infrared light is absorbed at certain wavelengths. This helps identify pollutants in the environment and analyze food products.

Applications of optical sensors

The many uses of optical sensors have led to their wide use in many fields.

Industrial Automation​

In manufacturing plants, photoelectric sensor play a vital role in quality control, process monitoring, and automation. They help find where parts are on a production line. They also measure the size of components and check for correct assembly.

For example, photoelectric probes can detect products on a conveyor belt. They can start actions like sorting, packaging, or checking quality.

Fiber optic sensors can check the temperature and strain of machine parts. They provide early warnings of possible problems. This helps avoid costly downtime.

Healthcare​

In the medical field, photoelectric sensor help with non-invasive and minimally invasive tests and monitoring. Pulse oximeters use these probes to check the oxygen level in the blood. They do this by looking at how hemoglobin absorbs light conditions in different colors.

Optical fibers are used in endoscopy. They send incident light to brighten internal organs and send images back to the surgeon.

Scientists are creating sensors to find diseases early. These probes examine the chemical makeup of body fluids or tissues, such as for cancer detection.

Environmental Monitoring​

Optical sensors are important for watching the environment. They check air quality, water quality, and weather conditions.

Spectroscopic probes can find pollutants in the air. These pollutants include sulfur dioxide, nitrogen oxides, and tiny particles.

Fiber optic sensors measure temperature, pH, and dissolved oxygen in water. They give us important data to protect the environment and manage water resources.

In weather monitoring, photoelectric sensors are used in devices like pyranometers and ceilometers. Pyranometers measure solar cell energy. Ceilometers measure the height of clouds.

conclusion

Optical sensors are an interesting and quickly changing technology with many uses. They can detect and measure light signals very accurately. This makes them important in today’s technology. As research continues, optical sensors will be more important in many industries. They will also help make our lives better.

In meteorological monitoring, CODA, with strong expertise and extensive experience, has developed various monitoring solutions for customers.

CODA provides suitable solutions for every situation. This covers complex cities, vast wilderness, farming’s precise needs, and special industries such as aerospace and shipping.

When it comes to monitoring weather in cities, we set up a lot of smart sensors. These sensors unceasingly gather crucial data, including temperature, humidity, air pressure, wind speed and direction, and air quality. This helps city planners and environmental protection workers prepare ahead of time for weather – related disasters and pollution problems. As a result, city dwellers can enjoy a better quality of life and stay safe.

In agriculture, our tailored weather monitoring plan precisely measures things like soil moisture, rainfall patterns, and sunlight levels. This scientific data helps farmers plan farming well. They can then decide the best ways to water and fertilize their crops.It helps make farming smarter and more productive.
