What is a GSM Weather Station?
In the realm of weather monitoring, GSM weather station have emerged as a revolutionary tool. But what exactly is a GSM weather station? Let’s delve into the details.
Definition and Concept
A GSM (Global System for Mobile Communications) weather station is a modern device for monitoring weather. It uses the GSM network to send data. They design it to gather various weather data from a specific place. Then, it sends this data wirelessly to a remote locati0n. This could be a user’s computer, mobile device, or a cloud-based server. This allows users to access weather information in real time. It does not matter how far away the weather station is.
How Does It Work?
Data Collection
GSM weather stations are equipped with an array of sensors. These sensors are responsible for measuring various weather parameters:
Temperature Sensors:
These can be thermocouples or thermistors. They detect the ambient air temperature. For example, a common thermistor – based temperature sensor changes its electrical resistance in response to temperature variations. The microcontroller in the weather station then measures this resistance and converts it into an accurate temperature reading.
Humidity Sensors:
Capacitive or resistive humidity sensors are commonly used. A capacitive humidity sensor changes its capacitance based on the amount of water vapor in the air. The microcontroller measures this capacitance change and calculates the relative humidity percentage.
Wind Sensors:
Anemometers are used to measure wind speed. A cup anemometer has three or four cups on horizontal arms. These arms spin around a vertical shaft. A sensor attached to the shaft measures that the rotation speed of the cups is proportional to the wind speed. Wind vanes are used to determine wind direction. They are usually shaped like an arrow. They can rotate freely and align with the wind direction. A sensor records this position.
Rain Gauges:
Tipping bucket rain gauges are popular. Every time a small bucket on the gauge tips from rainwater, it sends a signal to the microcontroller. The microcontroller counts the tips to measure the amount of rainfall.
Data Transmission
Once sensors collect data, the GSM module in the weather station takes over. Similar to a phone’s GSM module, it uses a SIM card to connect to the network. The weather station’s microcontroller packages the data for transmission, sending it as SMS messages. For weather stations with GPRS, data can also be sent that way. SMS is good for small data amounts; a station might send hourly texts with temperature, humidity, wind speed, and rainfall. GPRS enables continuous data streaming, uploading directly to a server for real – time web – based monitoring.

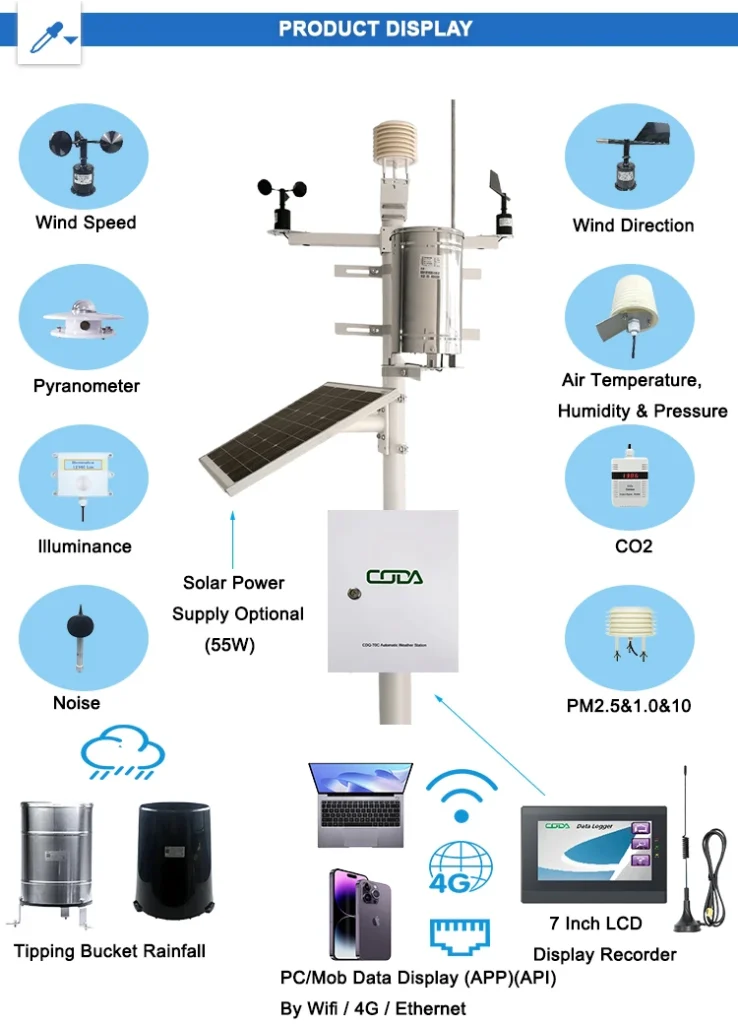

Components of a GSM Weather Station
Sensors
As mentioned earlier, the sensors are the “eyes and ears” of the GSM weather station. We use various sensors based on the parameters to be measured. High – quality sensors are essential for accurate data collection.For example, a professional GSM weather station used in agriculture needs precise temperature and humidity sensors. These sensors give accurate readings for studying crop growth.
GSM Module
The GSM module is the heart of the data transmission system. They design it to communicate with the GSM network. There are many types of GSM modules on the market. Each type has its own features. These features include different data transfer speeds, power use, and compatibility with various SIM cards. Some advanced GSM modules have extra features like voice calls. These are not often used in weather stations. They can be useful when sending an alarm or voice message. This is especially true during severe weather events.
Microcontroller
The microcontroller acts as the brain of the GSM weather station. It controls the sensors and collects data from them. It processes this data, like changing raw sensor readings into useful units, such as degrees Celsius for temperature. Then, it sends the data to the GSM module for transmission. Engineers program microcontrollers with specific algorithms to ensure the whole system operates smoothly. For instance, they can program the microcontrollers to calibrate sensors regularly to keep data accurate.
Power Source
GSM weather stations can be powered in several ways. Many have rechargeable batteries, and you can charge them using solar panels. Solar – powered GSM weather stations are especially useful in remote areas where access to electricity is limited. The solar panels change sunlight into electrical energy. This energy charges the batteries and powers the weather station.
Advantages of GSM Weather Stations
Remote Monitoring
One of the most significant advantages of GSM weather stations is the ability to monitor weather conditions remotely. This is very helpful in places that are hard to reach, like remote mountains, deserts, or offshore areas. For example, researchers can set up a GSM weather station deep in the Amazon rainforest for a research project. Researchers can access weather data from their labs, even if they are thousands of miles away. They do not need to visit the weather station in person.
Real – Time Data
GSM weather stations provide real – time data. Once the sensors have collected new data, you can transmit it via the GSM network. This is important for applications like weather forecasting. It needs up-to-date information about temperature, humidity, wind, and rain. For example, weather agencies can use GSM weather stations. This helps them update their weather models more often. As a result, they can create more accurate weather forecasts.
Easy Installation and Setup
GSM weather stations are easier to install than traditional systems with complex wiring and infrastructure. To set up a GSM weather station, mount sensors (e.g., wind sensor on a tall pole), connect to the main unit, insert the SIM card, and power on. This ease makes it suitable for diverse users, from hobbyists to small – scale farmers.
Data Security
When using GPRS and cloud – based storage, data security is enhanced. For example, on a construction site using a GSM weather station for safety monitoring, even if construction work damages the station, users can still access its cloud – stored data, both historical and real – time.
Applications of GSM Weather Stations
Agriculture
In agriculture, people use GSM weather stations to optimize crop growth.Farmers can monitor temperature, humidity, and rainfall data. For example, if the humidity is too high, it can indicate a higher risk of fungal diseases in crops. With real – time data from GSM weather stations, farmers can act preventively, adjusting irrigation, applying pesticides, or boosting greenhouse ventilation.
Renewable Energy
In the renewable energy sector, especially in wind and solar power plants, GSM weather stations play a vital role. Wind speed and direction data are crucial for wind turbine efficiency. A GSM weather station monitors parameters, enabling operators to reposition wind turbines for more energy capture. In solar plants, its temperature and sunlight data predict output and maintain panel efficiency.
Construction
Construction sites can benefit from GSM weather stations in terms of safety and project planning. Extreme weather conditions such as high winds, heavy rain, or low temperatures can affect construction activities. With a GSM weather station, construction managers can receive real – time weather alerts. For example, if they predict strong winds, they can halt crane operations to prevent accide
