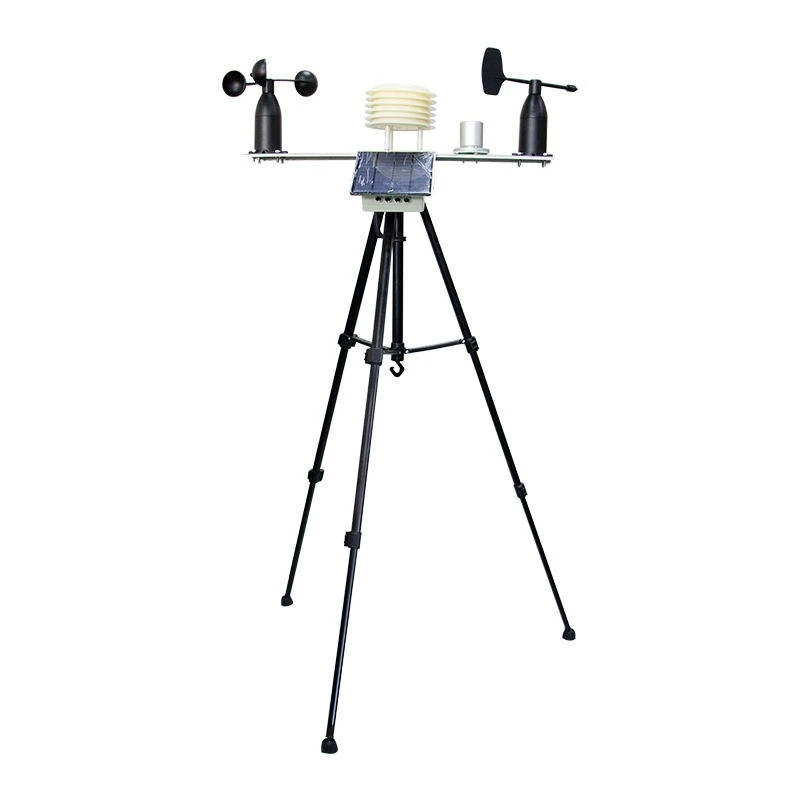

CDQ-T0C Professional Weather Station With Sensors

CDQ-T0C Professional Weather Station With Sensors

In Stock

Real-time weather monitoring.

Stable & reliable automatic operation.

Data logging & remote access.

IP65 grade . It can be used in an outdoor environment for a long time.

Flange installation method, no maintenance required.

Connected to PLC, Data recorder, Arduino, and Computer.

Free CODA cloud platform (4G WIFI Ethernet)


More About CODA Cloud Platform →

Free Cloud Platform

Providing support for your weather station transition.

Real-time 24-hour data monitoring

Map site positioning

Curve chart analysis

Today’s weather status data

Email data alarm function

Export of historical data in CSV format

Wireless :4G & WIFI & Ethernet

View, analyze, and record your data on CODA Cloud®!

Description

CDQ-T0C Weather Station

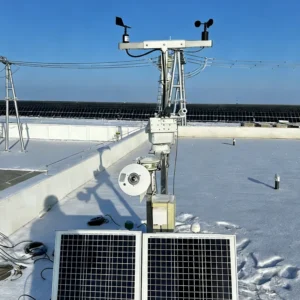

The Application of Wind Speed Sensors in weather station

Environmental monitoring

The CODA CDQ-T0C Automatic Weather Station is our most cutting-edge all-in-one weather sensor to date. Engineered for precision, reliability, and future-proof expandability, it keeps you seamlessly connected to the environmental data that matters most for your operations.

• The most accurate and robust professional weather sensor in the CODA lineup, built for long-term outdoor deployment

• Measures temperature, humidity, wind speed, wind direction, rainfall, UV index, light intensity, and barometric pressure

• Compatible with CODA Cloud Monitoring Platform, Modbus RTU/RS485 industrial systems, and third-party SCADA/PLC integration for remote & on-site monitoring

• Package includes: CODA CDQ-T0C Weather Sensor Unit, Mounting Hardware, RS485 Communication Cable, Quick Start Guide, and Calibration Certificate

Beneficial For All Applications Requiring Precise Environmental Monitoring

Solar farm performance monitoring

• Precision agriculture and crop management

• Industrial meteorology and process control

• Renewable energy resource assessment

• Smart city and urban environmental monitoring

• Highway and airport weather safety

Greenhouse and horticulture climate control

Hydrological and flood warning systems

• Research and academic meteorological projects

• Outdoor IoT and remote sensing deployments

With the CODA CDQ-T0C Automatic Weather Station, you benefit from industry-leading accuracy, ultra-fast 1-second response time, and full calibration traceability for all weather measurements.

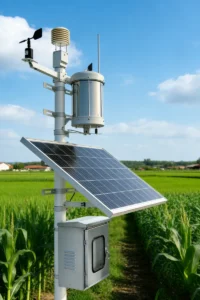

Weather station environmental monitoring

What are you measuring?



Wind Speed & Direction Sensors

Wind

Our ultrasonic and mechanical anemometers deliver reliable wind speed and direction data, ensuring accurate wind resource assessment for wind farms, weather forecasting, and structural safety monitoring.

Solar Radiation Sensors

Radiation

We provide pyranometers, UV sensors, and illuminance meters to capture global solar radiation, UV intensity, and light intensity, supporting PV power generation optimization and agricultural light environment monitoring.

Precipitation & Evaporation Sensors

Precipitation

Our automatic rain gauges and evaporation sensors accurately measure rainfall, snowfall, and evaporation, enabling real-time flood warning, water resource management, and agricultural irrigation scheduling.

Soil & Water Quality Sensors

Soil & Water Quality

Our soil sensors (pH, EC, moisture, temperature) and water quality sensors (DO, ORP) help optimize crop growth, protect water ecosystems, and ensure compliance with environmental standards.

Atmospheric Environment Sensors

Atmospheric Environment

We offer CO₂, noise, dust, and ambient temperature/humidity sensors to track air pollutants, noise pollution, and atmospheric conditions, supporting urban air quality management and industrial emission control.

Integrated Automatic Weather Stations

Integrated Meteorology

Our integrated weather stations combine wind, temperature, humidity, pressure, and precipitation sensors, providing a one-stop solution for agricultural meteorology, PV power stations, and urban environmental monitoring.

Specifications

CDQ-T0C Specifications

ItemDetails
Display7” color touch screen with backlight
Screen sleepSupport
Backlight adjustableSupport
Communication status indicationSupport
Internal storageIt allows storage of every hour for 6 years; every 10 minutes for 1 year; and very minute for 3 months.
Sensor connectionWaterproof connector
Communication interfaceRS485, Ethernet, GPRS/2G/3G/4G, WIFI
Lora (optional)
Zigbee (optional)
Communication protocolModbus-Rtu
SupplySolar power, DC12-24V, AC100-240V
Measurement parameters32 max.
Recording interval1-240min settable
U_disk downloadSupport
Relay outputcustomized
Average consumption<3.5W
CPUARM Cortex-A8 (720MHZ)
ESDClass 4, ±8kV
Operation temperature-40-+75℃
Shock10-25Hz (X,Y,Z 2g@30min)
FCCClass A
CEEN55022 & EN55024
Protection box400*500*200mm, support solar power system
IP(with protection box)IP65

Download

Accessories softwore

Additional information

Model

CDQ-T0C

OEM/ODM

Available

MOQ

1PCS

Lead Time

5-7 days

Certification

CE-EMC, RoHS, ISO9001

Size

1.5m/2m/2.5m / 10m bracket

Weight

8KG

Payment

T/T, L/C or Credit-card

Dimension & Mounting

Diagram of Installation of 2.5m Triangular Support

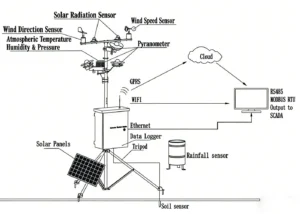

Weather station structure diagram



Installation diagram of the 2.5m upright support structure

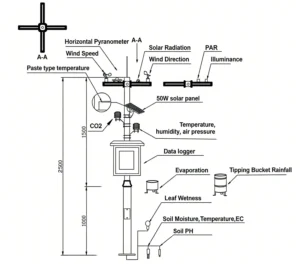

Installation diagram of the upright support structure

Cloud Platform

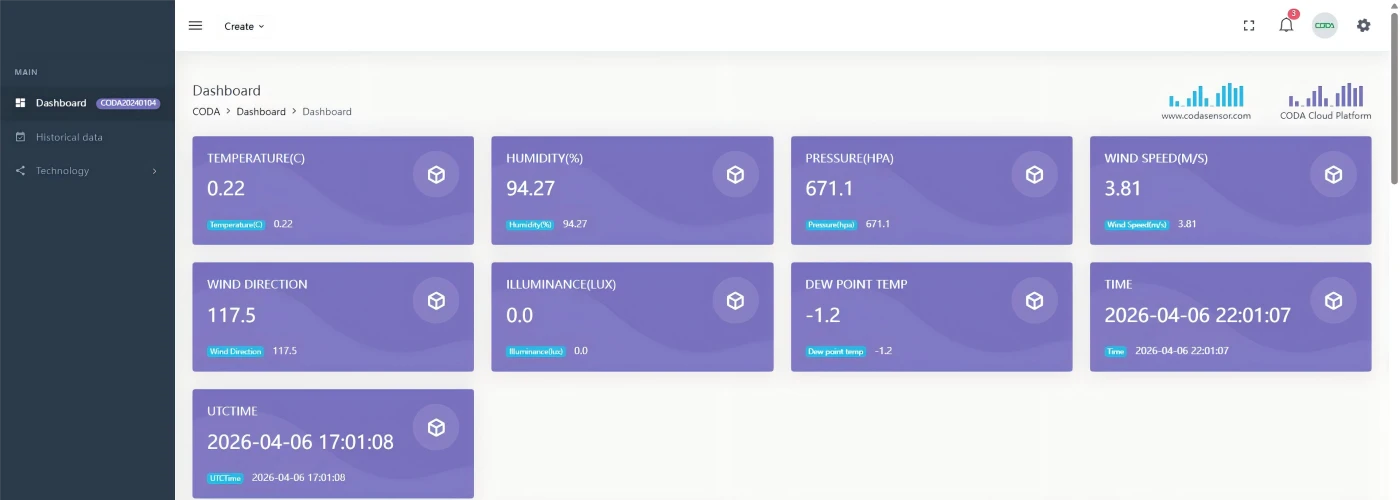

Weather Sensor 1

•Real-time data monitoring, customizable UTC time

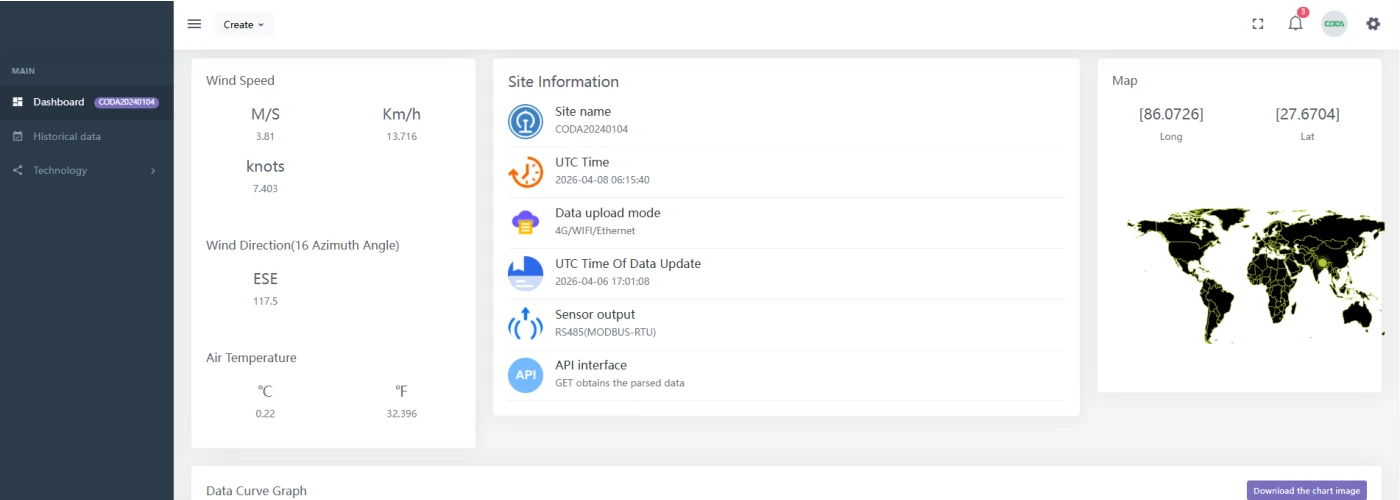

Weather Sensor 2

•Data unit conversion, map positioning

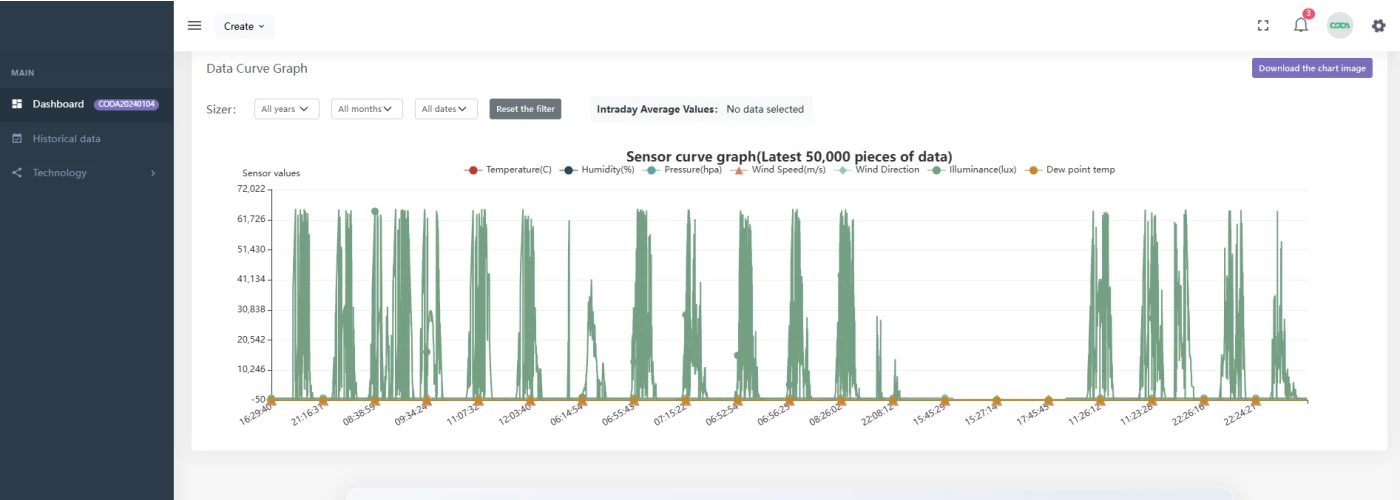

Weather Sensor 3

•Curve chart table filtering and downloading

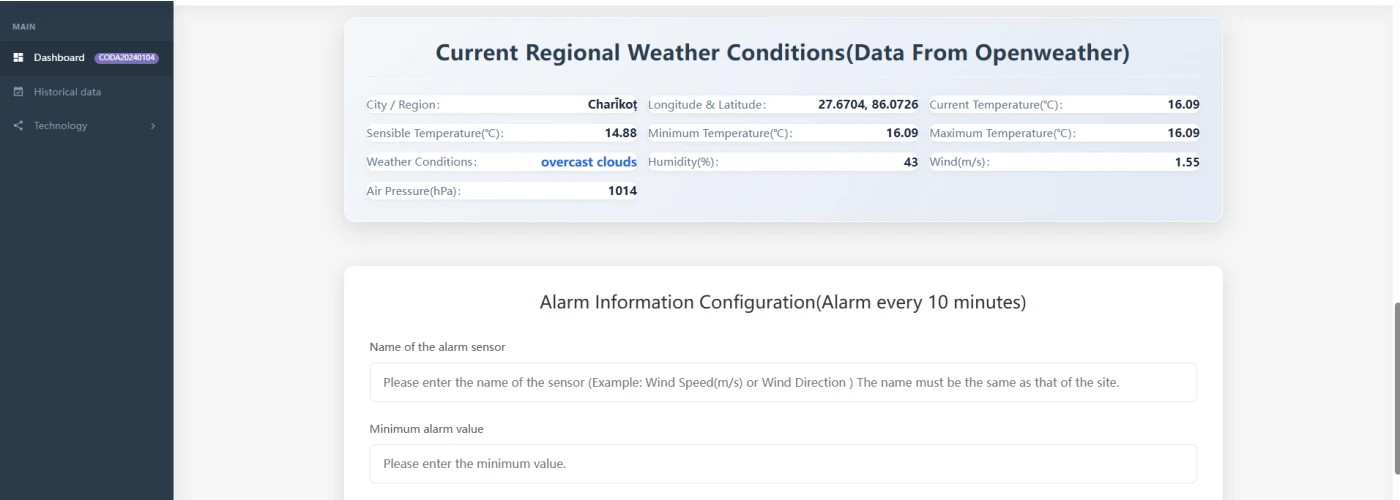

Weather Sensor 4

•Current weather condition display, email pricing settings

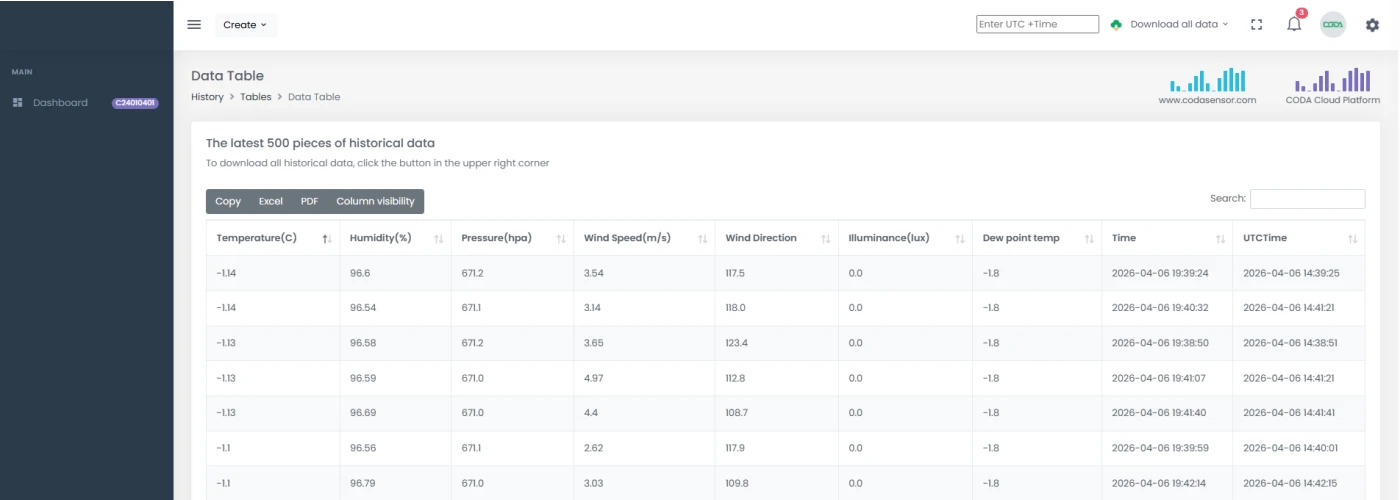

Weather Sensor 5

•Export of historical record table
