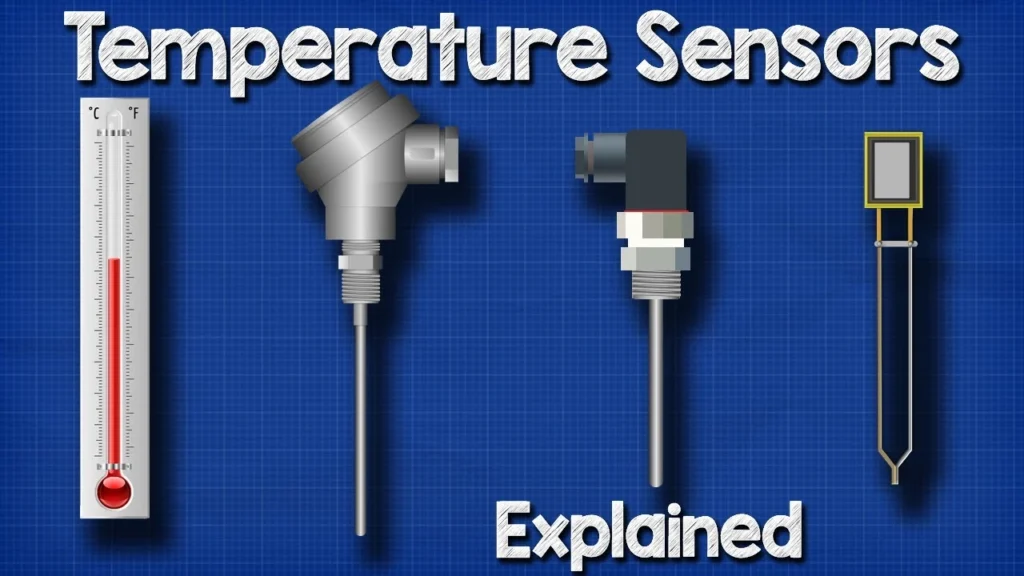

Understanding Temperature Probes: Types and Applications
**Define a Temperature Sensor?**
A temperature probe is a tool that measures temperature. It turns this measurement into a helpful signal. These probes are key parts of temperature monitoring devices. They are used in many industries for precise measurements and control.
**How Does a Temperature Probe Work?**
Certain probes determine temperature by sitting on an object’s surface. Some need to be put into the object or placed in liquids. These probes work based on energy transfer.
When a probe is cooler than its surroundings, heat moves from the surroundings to the probe. When the probe is warmer, heat moves from the probe to the surroundings.
The design of temperature probes varies a lot. This is because of different uses and ways to measure. Some probes are waterproof, while others are designed for high-temperature environments, deep object insertion, or non-contact measurement.

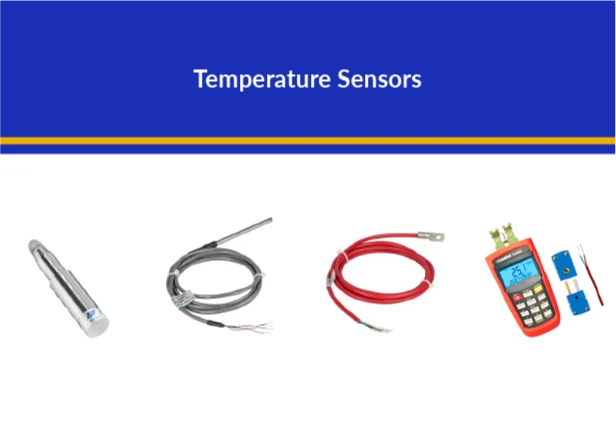

**Types of Temperature Probes**
Temperature probes can be grouped into four main types based on how they measure temperature.
1. **NTC Temperature Probes**
2. **RTD Temperature Probes**
3. **Thermocouple temperature probes**
4. **Temperature Probes Made from Semiconductors**
1. **NTC Temperature Probes**
NTC temperature probes use thermistors to measure temperature. Their resistance drops quickly as temperatures rise. These thermistors are made of 2 or 3 metal oxides mixed with a clay-like fluid.
They are then heated at high temperatures to form dense ceramic materials. NTC probes come in many sizes. They can be very small, as tiny as 0.010 inches, or larger, up to half an inch.
2. **RTD Temperature Probes**
RTDs, or “Resistance Temperature Detectors,” use materials such as platinum, nickel, or copper to function. These materials increase their resistance as the temperature goes up. This means their resistance goes up as the temperature increases. This change in resistance allows for accurate temperature measurements.
RTD probes typically come in three configurations:
**Wire-Wound RTD**
In wire-wound RTDs, a ceramic tube holds a resistance wire. The length of this wire is carefully set for specific resistance values at 0°C, called “R0.” The wires are then connected and coated with ceramic or glass for protection.
To avoid errors caused by mechanical strain, laboratory-grade RTDs use loosely wound resistance wires. These probes are very accurate, but they are fragile. They are mostly not suitable for industrial use.
**Coil Element RTD**
This version has resistance wire that is loosely coiled in a ceramic tube. The tube is filled with insulating powder. These designs allow the wire to expand and contract freely with changing temperatures. This helps reduce errors caused by strain.
The powder helps heat transfer and response times. This makes coil element RTDs great for industrial use because they are strong and durable.
**Thin-Film RTD**
Thin-film RTDs are cheap and simple to make in large quantities. They respond faster and are smaller than other RTDs.
A thin layer of platinum is put on a ceramic base. This makes conductive pathways. These pathways help get accurate readings in many industries.
3. **Thermocouple Temperature Probes**
Thermocouple probes work by creating a voltage when two different metals are joined at two different temperatures. One metal is at a lower temperature, and the other is at a higher temperature.
This potential difference is directly linked to the temperature difference. This allows thermocouples to measure a wide range of temperatures, from -200°C to 1750°C. However, they are not as accurate as other types of probes.
Thermocouple Probe
**Semiconductor-Based Temperature Probes**
Semiconductor temperature probes are often made small as integrated circuits (ICs). They use two identical diodes. These diodes have voltage and current properties that change with temperature. This helps detect changes in temperature.
These sensors offer a direct response, yet they are the least precise among the fundamental sensor types. They also have the slowest reaction time. They work within a narrow temperature range of -70 °C to 150 °C.

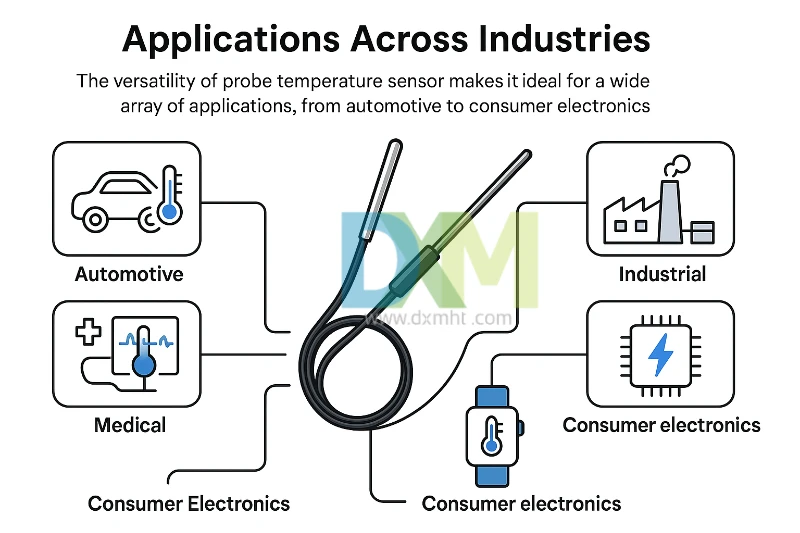

**Applications of Temperature Probes**
**1. Industrial Applications**
Temperature probes are used in many industries. These include metallurgy, smelting, petrochemicals, and power production.
They are also important in making machines, brewing beer, producing medicines, and treating water. These tools are important for keeping track of temperature over a long time. They help keep things safe and working well in these operations.
**2. Medical Applications**
In the medical field, temperature probes are often used in electronic devices. For example, non-contact thermometers measure heat from infrared sources. Thermistor-based temperature sensors are used in blood analyzers to keep temperatures stable.
These sensors also check diffusion lamps and oil-cooled motors. They can turn off equipment by itself if it gets too hot. This helps stop damage and makes sure cooling works well.
**3. Food Industry Applications**
Temperature probes are important in food processing. In factories, these devices help keep the right temperatures during frying condiments. Different raw materials need to be added and mixed at varied times and temperatures.
Keeping the temperature of frying pans accurate helps maintain the quality of seasoning. This makes these probes essential for quality control in the industry.
**Conclusion**
The primary categories of temperature sensors include thermocouples, RTDs, thermistors, and ICs based on semiconductors. Thermocouple probes are strong and can measure a wide range. However, they have lower accuracy and do not resist noise well.
RTD probes provide better accuracy and more consistent readings. They can measure a wider range than thermistors. However, they respond more slowly and cost more.
Thermistor probes are small and strong. However, they need a lot of data corrections for temperature calibration.
They are also not as precise as RTDs. Semiconductor-based ICs are great for flexibility and small size. Nonetheless, their temperature range is restricted.
Numerous varieties of temperature probes are available in the market. This discussion will focus on the four types mentioned earlier. For any inquiries regarding temperature probes, feel free to contact us or leave a message!
