CDY-14B Evaporation Sensor

Specifications

CDY-14B Specifications

ItemSpecification
Evaporation panDiameter :φ200mm
Range0-75mm
Response time<1s
Accuracy±1%
Power Supply5V,12-24V
Output4-20mA,0-2V,0-5V,RS485
Operating temperature-30-+80℃
Ingress protectionIP65
Main material304SS
Weight(unpacked)2.5kg

Download

Accessories softwore

Description

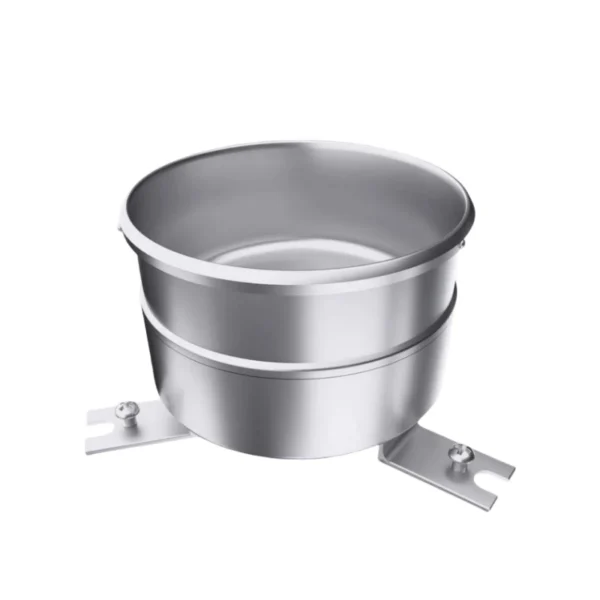

CDY-14B Evaporation Sensor

Evaporation sensor uses the high-precision weighing principle to measure the liquid weight in the evaporation pan, and calculates the liquid level of evaporation loss by measuring the difference of the liquid weight before and after the measurement.

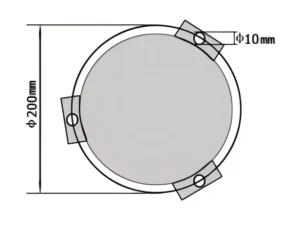

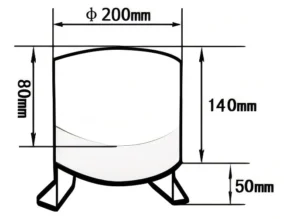

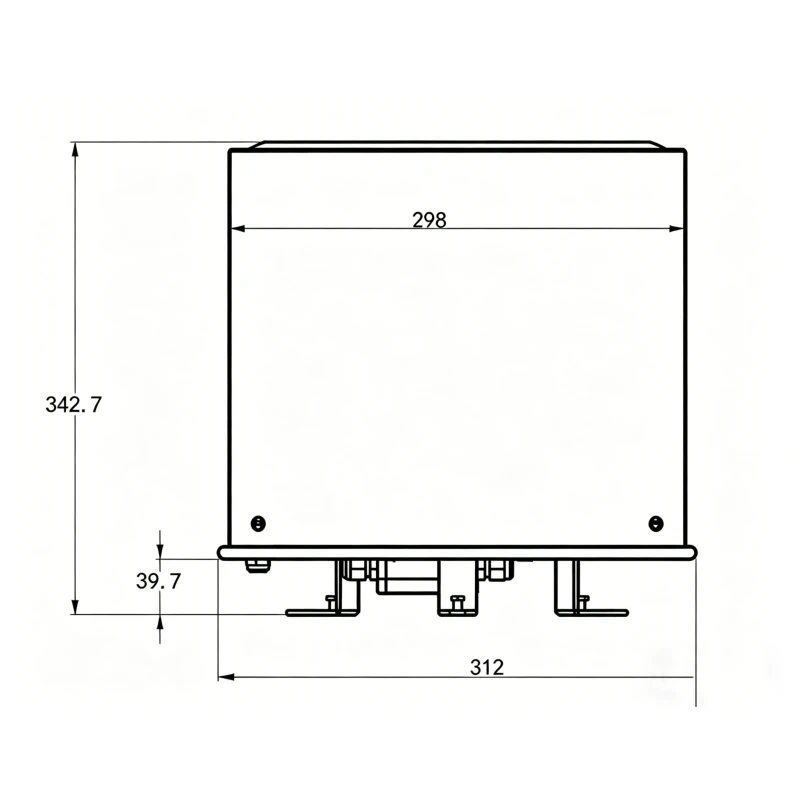

Dimnsion & Mounting

Evaporation Sensor Evaporation Sensor



Application

Meteorology and climate research:

◉In meteorological station, evaporation sensor is one of the basic meteorological observation equipment. It is installed in an open, well-ventilated and fully exposed to solar radiation, generally near rainfall sensors and other meteorological instruments. By measuring evaporation, meteorologists can get a more complete picture of how water is exchanged between the atmosphere and the ground.

◉At agrometeorological observatories, evaporation sensors can help researchers understand the loss of water from fields. Different crops have different water demand and utilization efficiency in the growth process, and the evaporation data can provide reference for precision agriculture.





Hydrology and water resources field:

◉Evaporation sensors installed around lakes and reservoirs can accurately measure evaporation losses in water bodies. This is very important data for water management.

◉Evaporation is one of the factors affecting river discharge. We place evaporation sensors within river basins. Then, we can use the collected data in hydrological models to more accurately predict river flows.



Ecological environment field:

◉In the city, the evaporation of green space, water and other ecosystems plays an important role in regulating the urban climate. We can install evaporation sensors in urban parks, lakes and other places to monitor water evaporation in urban ecosystems.



Sensor News

Knowledge About The Automatic Weather Stations | Coda Sensors





Additional information

Model

CDY-18B

OEM/ODM

Available

MOQ

1PCS

Lead Time

5-7 days

Certification

CE-EMC, RoHS, ISO9001

Size

21cm*21cm*8cm

Weight

2.5KG

Payment

T/T, L/C or Credit-card
