Description

CDQ-X100 PIEZOELECTRIC TYPE RAIN SENSOR

Name: CDQ-X100 Piezoelectric Type Rain - Best Weather Station Manufacturer | Coda Sensors
Price: 80.00 CNY
Availability: InStock

Overview

The CDQ-X100 piezoelectric rain gauge harvester is a device used for studying water and saving it. It measures rainfall with a piezoelectric method that has no moving parts. This device provides 24-hour continuous monitoring of outdoor rainfall.

Key Features

• High-Speed Piezo Sensing Technology

• Ultra-Low Power & Stable Digital Communication

• Rich Multi-Parameter Data Output

• Wide Temperature & High Dustproof Waterproof Protection

• Flexible Installation & Diverse Fixing Solutions

Select Options

Accessory
▼ More

Image	Product	Specification
	Crossbar support	Material: Cast iron

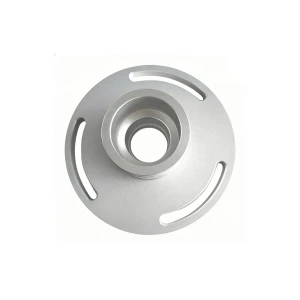

	Flange bracket	Material: Aluminium alloy
	Detachable 2.5m Tripod	Material: Stainless steel
	RS485 to USB Converter	RS458 and RS232 To USB （1m）
	4G WIFI Ethernet module	Free to the CODA cloud platform And Provide SIM card
	4.3-inch touch screen color recorder	Local storage, customized LOGO, wireless transmission

Related Products

CDY-18B

Automatic Rainfall Station

Integrates professional rainfall monitoring sensors to realize unattended automatic collection, recording and transmission of outdoor precipitation data.

VIEW PRODUCT

CDY-12A

ABS Rainfall

This weather-resistant ABS tipping bucket rainfall sensor delivers accurate precipitation monitoring with durable anti-UV structure and stable RS485 signal output for outdoor meteorological applications.

VIEW PRODUCT

CDY-10B

Metal Economical Tipping Bucket Rainfall

Adopts sturdy metal structure, cost-effective design, stable and accurate automatic tipping bucket rainfall monitoring for outdoor meteorological use.

VIEW PRODUCT

NEWS Application

Meteorological Monitoring

Wind speed sensor for agricultural applications

Provides real-time atmospheric temperature, humidity and pressure data for automatic weather stations, field observation networks and climate research.

LEARN MORE

Urban & Environmental

Wind speed meter application in the photovoltaic industry

Supports urban environmental monitoring, air quality stations and ecological protection projects with reliable atmospheric data.

LEARN MORE

Smart Agriculture

Environmental Monitoring Weather Station

Helps monitor greenhouse and field environments to optimize planting conditions, improve crop growth and increase yields.

LEARN MORE

Specifications

CDQ-X100 Specifications

Item	Specification
Rainfall	Measurement form: piezoelectric type; Measuring range: 0-200mm/h; Resolution: 0.2mm; Sampling frequency: 1HZ
Electrical Parameters	Power supply: DC12-24V; RS485 interface (MODBUS protocol); Power consumption <0.2W
Optional Output	Continuous rainfall; rainfall duration;rainfall intensity;maximum rain intensity
Maximum output frequency	Passive mode:1/S
Operating Temperature	0℃—70℃
Protect level	IP65
Fixed Method	The standard product is sleeve-type fixed,see the product size (optional flange fixing or bending plate fixing method)drawing
Fixed Bracket(additional purchased)	Optional 1.5m or 1.8m brackets

Dimension & Mounting

Handheld Anemometer

Download

Datasheet & User Manual

CDQ-X100-Piezo-electric-type-Rain-gauge-1.0 (14 downloads )

Accessories softwore

Bitboy

Modbus bitboy softwore (164120 downloads )

Modbus poll(64bit)

Modbus poll (180597 downloads )

FAQ

1. Q: What is the measuring range, resolution and sampling rate of this sensor?

A: It adopts piezoelectric measurement mode, with measuring range 0-200mm/h, resolution 0.2mm and 1Hz sampling frequency.

2. Q: What are the electrical specifications of the sensor?

A: Power supply: DC 12-24V; Standard RS485 MODBUS communication protocol; Whole machine power consumption ＜0.2W.

3. Q: What rainfall data can the sensor output?

A: It can output cumulative rainfall, rainfall duration, real-time rainfall intensity and maximum instantaneous rainfall intensity.

4. Q: What is the maximum output frequency of passive mode?

A: Passive mode maximum output frequency: 1 time per second.

5. Q: What is the working temperature range and protection grade?

A: Operating temperature: 0℃~70℃; Ingress protection level: IP65 dustproof and waterproof.

6. Q: What installation methods does the sensor support?

A: Standard sleeve fixing, optional flange fixing and bending plate fixing ways.

7. Q: What height mounting brackets are optional?

A: Custom optional 1.5m or 1.8m height fixed brackets (additional purchase required).

Additional information

Model	CDQ-X100
OEM/ODM	Available
MOQ	1PCS
Lead Time	5-7 days
Certification	CE-EMC, RoHS, ISO9001
Size	12cm12cm11cm
Weight	0.78KG
Payment	T/T, L/C or Credit-card
