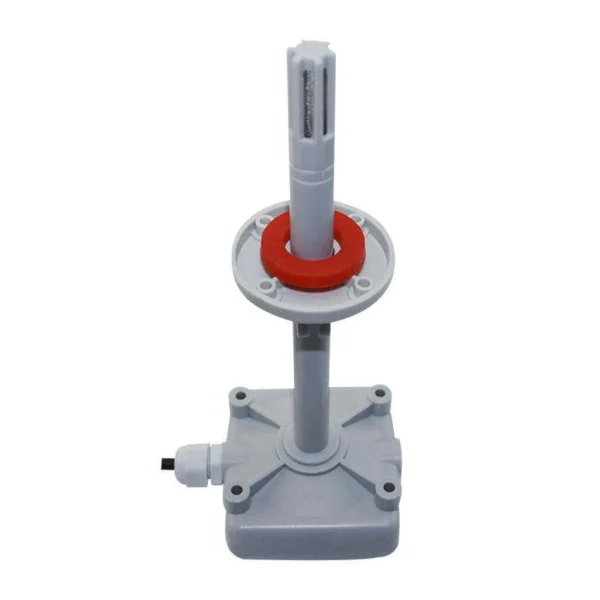

CDW-24A HVAC Temperature & Humidity Sensor

CDW-24A HVAC Temperature & Humidity Sensor

In Stock

Duct Mount Temp & RH Sensor for HVAC Systems

High-precision temperature & humidity sensor specially designed for HVAC ventilation, central air conditioning and intelligent building environmental monitoring, stable long-term operation.

IMPORTANT INFORMATION

4G or WIFI or Ethernet module for free transmission to the CODA cloud platform

Energy-saving low-power design: current output ≤0.48W

Various output signals, including RS485, 4-20mA, 0-5V, and 0-10V


More About CODA Cloud Platform →

Free Cloud Platform

Providing support for your weather station transition.

Real-time 24-hour data monitoring

Map site positioning

Curve chart analysis

Today’s weather status data

Email data alarm function

Export of historical data in CSV format

Wireless :4G & WIFI & Ethernet

View, analyze, and record your data on CODA Cloud®!

Description

CDW-24A HVAC TEMPERATURE & HUMIDITY SENSOR

Overview

The CDW-24A HVAC Temperature and Humidity Sensor measures air temperature and humidity levels accurately. Sensors are built-in the water-proof and dust-proof shelter. It is widely used in HVAC, storage and environment monitoring field.



Key Features

Ultra-High Precision Dual-Parameter Measurement

High Precision & Fast Response

Flexible Power & Output Options

Robust Design for Harsh Conditions

Compact & Lightweight Form Factor



Select Options


Image Product Specification
bracket Crossbar support Material: Cast iron
bracket Detachable 2.5m Tripod Material: Stainless steel
bracket RS485 to USB Converter RS458 and RS232 To USB (1m)
bracket 4G WIFI Ethernet module Free to the CODA cloud platform And Provide SIM card
bracket 4.3-inch touch screen color recorder Local storage, customized LOGO, wireless transmission

Related Products

CDW-13B



ABS Wind Direction Sensors

Noise Sensor

High-precision noise sensor for real-time monitoring of environmental sound levels in industrial, urban, and residential applications.

VIEW PRODUCT

CDW-14A



Ultrasonic Anemometer

Paste Type Temperature

High-precision paste-type temperature sensor for fast, stable surface temperature measurement on various equipment and materials.

VIEW PRODUCT

CDW-33A



Wind Speed & Direction Display Recorder

Atmospheric Temper.&Humi.&Pressure

This integrated sensor accurately measures atmospheric temperature, humidity and barometric pressure in real time for environmental monitoring, weather stations and smart agriculture.

VIEW PRODUCT

NEWS Application

Meteorological Monitoring

Wind speed sensor for agricultural applications

Provides real-time atmospheric temperature, humidity and pressure data for automatic weather stations, field observation networks and climate research.

LEARN MORE

Urban & Environmental

Wind speed meter application in the photovoltaic industry

Supports urban environmental monitoring, air quality stations and ecological protection projects with reliable atmospheric data.

LEARN MORE

Smart Agriculture

Environmental Monitoring Weather Station

Helps monitor greenhouse and field environments to optimize planting conditions, improve crop growth and increase yields.

LEARN MORE

Specifications

CDW-24A Specifications

ItemTechnical Specification
Temperature@Humidity
Range-30-70℃(intermediate range is optional)@0-100%RH
Accuracy±0.2℃@±2%RH
Supply12-24VDC
Output Signal4-20mA,0-5V,0-10V,RS485 MODBUS(RTU)
Power ConsumptionCurrent output:≤0.48W, Voltage output:≤0.2W, Digital output:≤0.36W
Load CharacteristicCurrent output:RL≤(US-7)/0.02Ω, Voltage output:RL≥100kΩ
Operating Temperature-40℃-+80℃
Ingress ProtectionIP65
Storage10-60℃@20%-90%RH

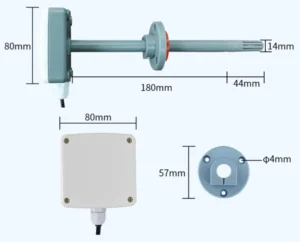

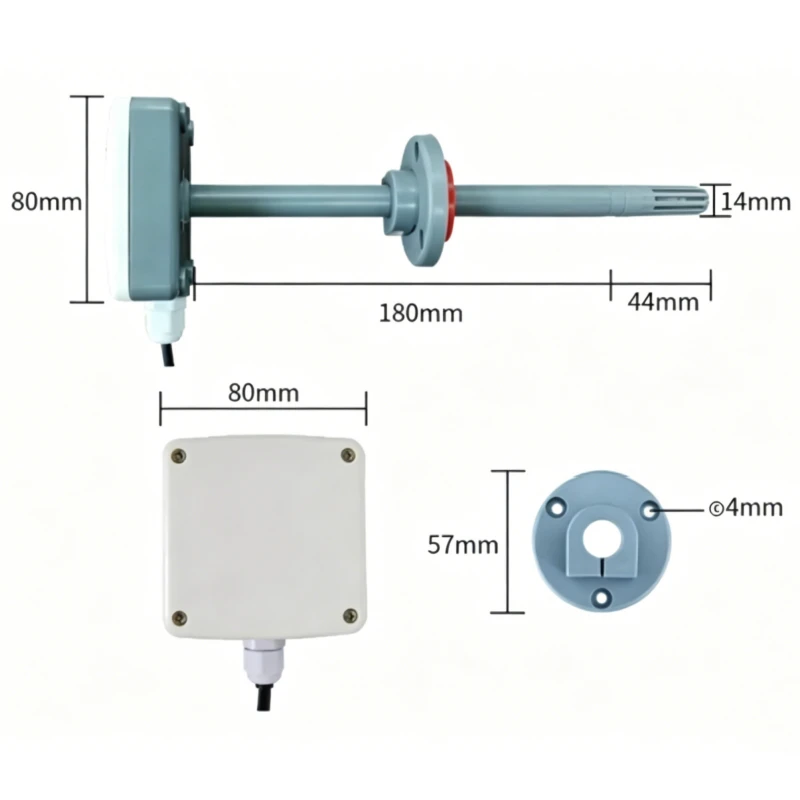

Dimension & Mounting

Handheld Anemometer Wind Speed Sensor

Accessories softwore

Additional information

Model

CDW-24A

OEM/ODM

Available

MOQ

1PCS

Lead Time

5-7 days

Certification

CE-EMC, RoHS, ISO9001

Size

25cm*10cm*10cm

Weight

0.32KG

Payment

T/T, L/C or Credit-card
