Strong corrosion resistant ability
High accuracy
Wide range, good stability
Various output signalsoptional
With high temperature resistant adhesive, convenient installation
Easy Installation
Contact temperature measurement
Solar and wind power generation
Contact temperature measurement
| Item | Specifications | |||
|---|---|---|---|---|
| Range | -50-+100℃, -20-+50℃ | |||
| Supply Voltage | 5VDC,12-24VDC | |||
| Accuracy | ±0.5℃ | ±0.3℃ | ||
| Output | 4-20mA | 0-5V | RS485 | PT100/PT1000 3-wires |
| Load Capacity | ≤250Ω | ≥1K | ||
| Ingress Protection | IP65 | |||
| Operating Temperature | Probe: -50℃-+120℃ Conversion module:-40℃-+85℃ | |||
| Weight(unpacked) | Probe: 85g | |||

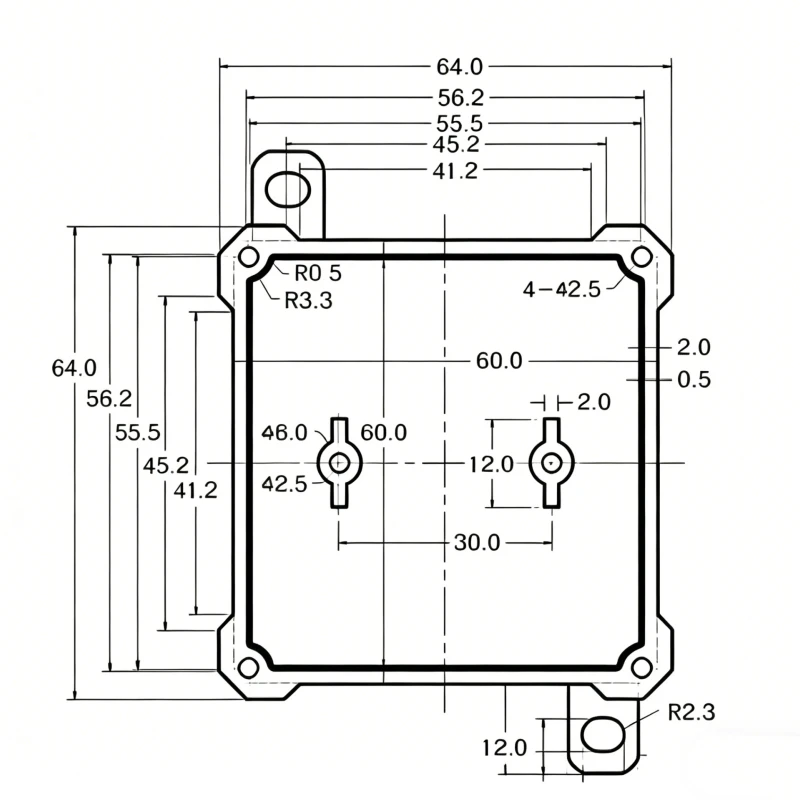

| Transmitter module dimension | 98*66*49mm or Ф28*121mm | |||
| Storage Condition | 10℃-60℃@20%-90%RH | |||
| Surface mount adhesive | Attached | |||

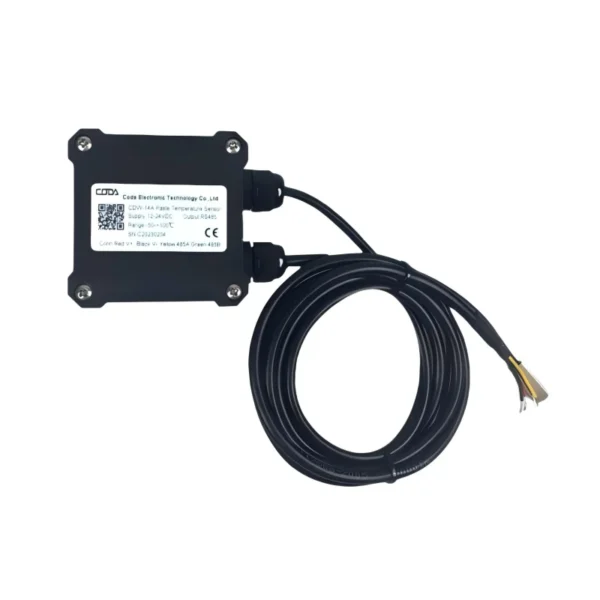

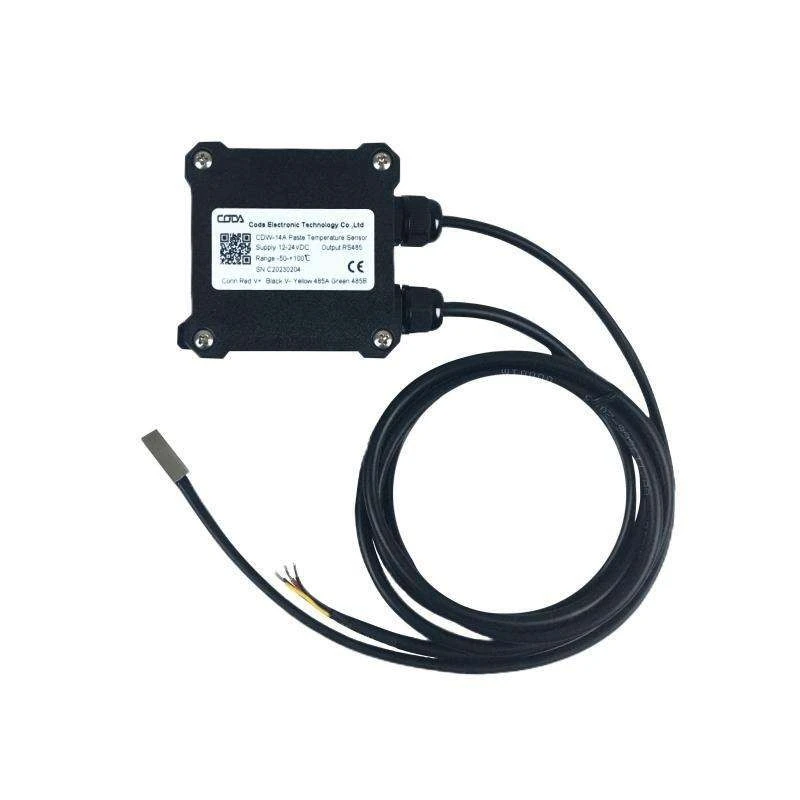

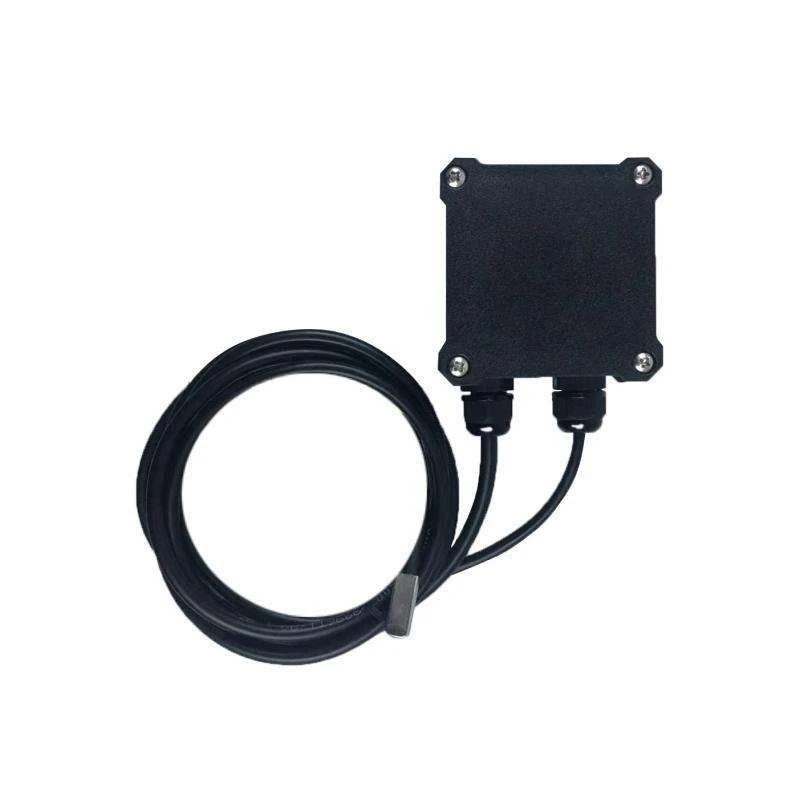

The CDW-14A Paste Type Temperature Sensor uses a high precision platinum resistance (PT100) for sensing. It offers high accuracy and good stability. The signal conversion module can change temperature into voltage, current, or RS485.
The CDW-14A sensor is small and simple to install. It has good linearity, a strong load capacity, a long transmission distance, and resists interference well.
Commercial manufacture:
◉This device checks the temperature of important parts, such as machines, production lines, and pipelines. For instance, in car manufacturing, a chip temperature sensor can be placed in the engine and transmission. It monitors the temperature in real-time and warns users if it gets too high.
Environmental protection:
◉Keep track of temperature changes in the air, water, soil, and other parts of the environment. This helps us know the temperature of our surroundings.
For instance, a temperature sensor can be used in a weather station. It measures air temperature in real time. This data is important for weather forecasts and climate studies.
Photovoltaic module temperature monitoring:

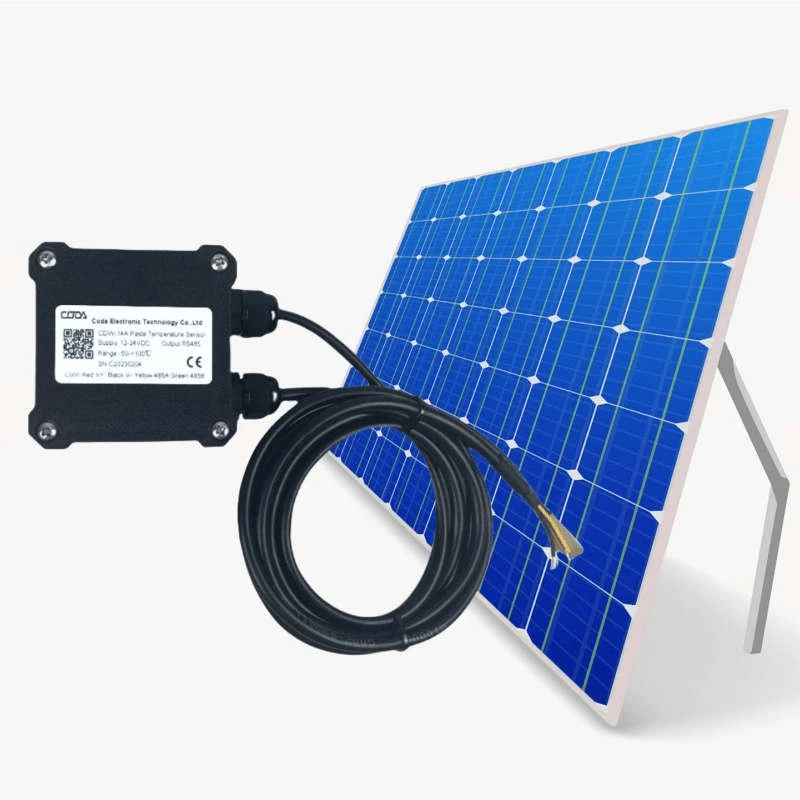

◉The Paste Type Temperature sensor can be attached directly to the surface of the solar panel. It tracks temperature changes in real time in different environments.
The temperature of the solar panel affects how well it converts energy. When the temperature goes up, the conversion efficiency goes down.
Measuring the temperature of the module gives important data. This data helps us check how well the component works. It can also make the design and installation better. This leads to better power generation efficiency.
What is the temperature of a PV module?
| Model | CDW-14A |
|---|---|
| OEM/ODM | Available |
| MOQ | 1PCS |
| Lead Time | 5-7 days |
| Certification | CE-EMC, RoHS, ISO9001 |
| Size | 6.5cm*6.5cm*5cm |
| Weight | 0.32KG |
| Payment | T/T, L/C or Credit-card |
