Strong corrosion resistant ability
High accuracy
Wide range, good stability
Various output signalsoptional

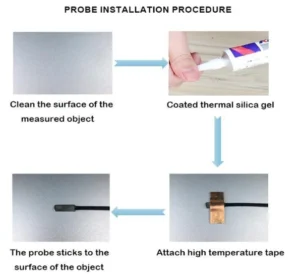

With high temperature resistant adhesive, convenient installation
Easy Installation
Contact temperature measurement
Solar and wind power generation
Contact temperature measurement
| Item | Specifications | |||
|---|---|---|---|---|
| Range | -50-+100℃, -20-+50℃ | |||
| Supply Voltage | 5VDC,12-24VDC | |||
| Accuracy | ±0.5℃ | ±0.3℃ | ||

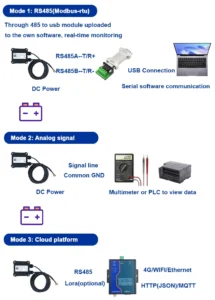

| Output | 4-20mA | 0-5V | RS485 | PT100/PT1000 3-wires |
| Load Capacity | ≤250Ω | ≥1K | ||
| Ingress Protection | IP65 | |||
| Operating Temperature | Probe: -50℃-+120℃ Conversion module:-40℃-+85℃ | |||
| Weight(unpacked) | Probe: 85g | |||

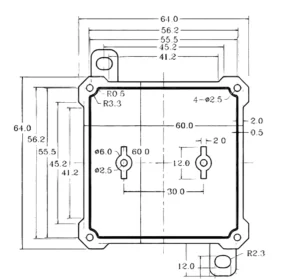

| Transmitter module dimension | 98*66*49mm or Ф28*121mm | |||
| Storage Condition | 10℃-60℃@20%-90%RH | |||
| Surface mount adhesive | Attached | |||

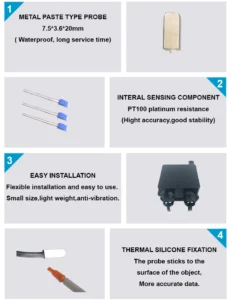

CDW-14A Paste Type Temperature Sensor adopts high precision platinum resistance (PT100) as the sensing component. It is with high accuracy, good stability. The signal conversion module can convert temperature to corresponding voltage, current or RS485 optionally. CDW-14A Past type temperature sensor is compact, easy-to-install, with good linearity, strong load capacity, long transmission distance and good anti- interference ability.
Commercial manufacture:
◉Used to monitor the temperature of key components such as machinery, production lines and pipelines. For example, in the production line of automobile manufacturing, the chip temperature sensor can be installed in the engine, transmission and other parts, real-time monitoring of its working temperature, and timely alarm when the temperature rises abnormally.
Environmental protection:
◉Monitor the temperature changes of atmosphere, water, soil and other environmental elements to understand the thermal status of the environment. For example, in meteorological observation, a chip temperature sensor can be used as part of a weather station to measure air temperature in real time, providing a data basis for weather forecasting and climate research.
Photovoltaic module temperature monitoring:
◉The Paste Type Temperature sensor can be directly attached to the surface of the photovoltaic module to monitor its temperature change under different environmental conditions in real time. Since the temperature of the photovoltaic module has a direct impact on its energy conversion efficiency, the increase of temperature will lead to a decrease in the conversion efficiency. By accurately measuring the temperature of the module, it can provide key data for evaluating the performance of the component, and then optimize the design and installation of the component to improve the power generation efficiency
What is the temperature of a PV module?
| Model | CDW-14A |
|---|---|
| OEM/ODM | Available |
| MOQ | 1PCS |
| Lead Time | 5-7 days |
| Certification | CE-EMC, RoHS, ISO9001 |
| Size | 6.5cm*6.5cm*5cm |
| Weight | 0.32KG |
| Payment | T/T, L/C or Credit-card |
