Description

CDF-21A ULTRASONIC WIND SPEED & DIRECTION SENSOR

Name: CDF-21A Ultrasonic Wind Speed & Direction Sensor - Best Weather Station Manufacturer | Coda Sensors
Price: 80.00 CNY
Availability: InStock

Overview

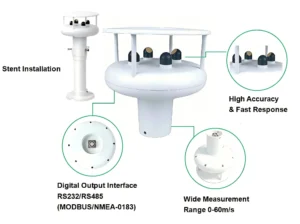

CDF-21A Ultrasonic wind speed and direction sensor as a fully digital detector with high-precision sensors. It is integrated by the ultrasonic wind speed & direction sensors. We make it capable of accurately and quickly detecting the wind speed and wind direction. We equip Ultrasonic wind sensor with a built-in signal processing unit that can output a corresponding signal according to user needs.

Key Features

• No moving parts, effectively avoiding mechanical wear and failure, with a longer service life.

• High measurement accuracy and fast response speed

• Low maintenance cost, no need for frequent cleaning or replacement of vulnerable parts.

• Multiple Output Signals

• Compact structure, light weight, easy installation

Select Options

Accessory
▼ More

Image	Product	Specification
	Supporting pole	Material: Aluminum alloy
	Detachable 2.5m Tripod	Material: Stainless steel
	RS485 to USB Converter	RS458 and RS232 To USB （1m）
	4G WIFI Ethernet module	Free to the CODA cloud platform And Provide SIM card
	4.3-inch touch screen color recorder	Local storage, customized LOGO, wireless transmission

Related Products

CDF-11B

Metal Wind Direction Sensor

High-precision wind direction sensor with durable mttal housing, designed for reliable environmental monitoring in harsh weather conditions.

VIEW PRODUCT

CDF-22A

Miniature Ultrasonic Wind Speed And Direction Sensor

This high-performance Miniature Ultrasonic Wind Speed and Direction Sensor is engineered for compact, low-power, and maintenance-free wind monitoring in IoT, weather stations, and industrial applications.

VIEW PRODUCT

CDF-26B

Wind Speed & Direction Display Recorder

This display shows the date, time, wind speed, and direction. We include a large flash memory chip. It can store automatic weather data logging interval for at least three year.

VIEW PRODUCT

NEWS Application

Maritime Monitoring

Wind speed sensor for agricultural applications

Ultrasonic wind speed and direction sensors are widely used in maritime monitoring scenarios, providing accurate, real-time meteorological data for offshore operations, vessel navigation, port management and marine environmental observation.

LEARN MORE

Photovoltaic Industry

Wind speed meter application in the photovoltaic industry

Ultrasonic wind speed and direction sensors are widely applied in maritime monitoring and solar photovoltaic (PV) power generation systems, delivering reliable real-time meteorological data to improve operational safety, efficiency and energy yield.

LEARN MORE

Environmental Monitoring

Environmental Monitoring Weather Station

Integrated into urban environmental monitoring networks, industrial IoT systems, and weather stations to support pollution diffusion analysis, microclimate research, and smart city management.

LEARN MORE

Specifications

CDF-21A-Specifications

Item	Technical Specification
Power Supply	12-24VDC
Power consumption	<1W(Heating not activated); <3W(Heating activated)
Output Signal	RS232/RS485(Modbus/NMEA-0183),4-20mA/0-5V(only for wind speed & direction) optional
Operating Temperature	-40℃-+80℃
Ingress Protection	IP66
Heating power	Automatically turn on when the ambient temperature is below 0℃
Electronic compass	optional
Atmospheric pressure	optional
Dimension	Ф144*148mm
Weight(unpacked)	0.8kg
Main material	ASA
Item	Technical Specification
	Wind speed
Range	Wind speed:0-45m/s,0-60m/s Wind direction:0-360° Atmospheric pressure:150-1100hPa
Resolution	Wind speed:0.01m/s Wind direction:1° Atmospheric pressure:0.1hPa
Accuracy	Wind speed: ≤10m/s：±0.2m/s ＞10m/s：＜±2% the current value Wind direction:±3°
＜±2% the current value	±3°
Starting Threshold	0.1m/s
Extreme Wind Speed	60m/s

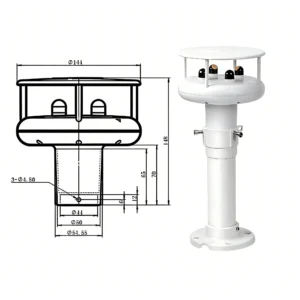

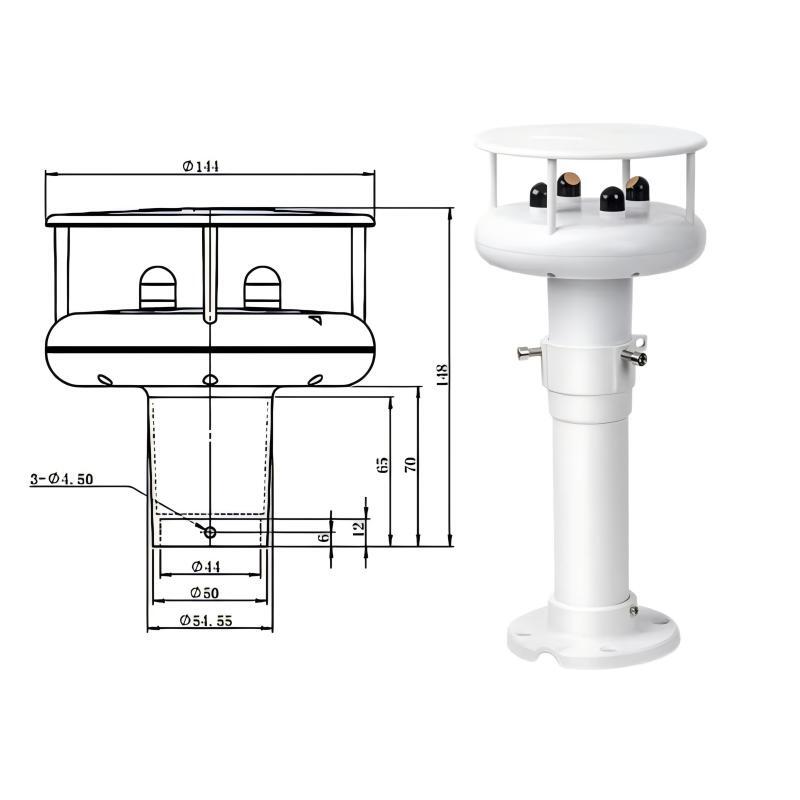

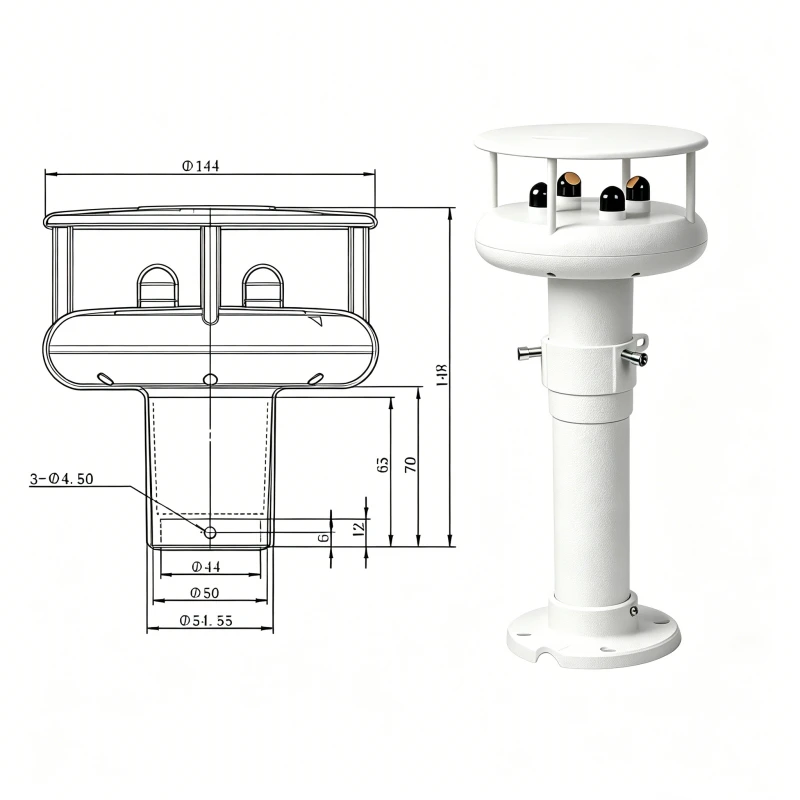

Dimension & Mounting

Download

Datasheet & User manual

CDF-21A Ultrasonic Wind Speed and Wind Direction Sensor-1.0 (178 downloads )

Accessories softwore

Bitboy

Modbus bitboy softwore (169828 downloads )

Modbus poll(64bit)

Modbus poll (184891 downloads )

FAQ

1. Q: What is an ultrasonic wind speed and direction sensor?

A: An ultrasonic wind speed and direction sensor (also called an ultrasonic anemometer) is a meteorological instrument that measures wind speed and direction using ultrasonic time‑difference technology, with no mechanical moving parts.

2. Q: How does it work?

A: It uses multiple ultrasonic transducers (typically arranged in a cross pattern) to send and receive ultrasonic pulses. Wind changes the propagation time of ultrasonic waves: faster with the wind, slower against it.

3. Q: What are the main advantages over mechanical anemometers?

No moving parts: No wear, longer lifespan, low maintenance
Fast response: Captures gusts and turbulence
High accuracy: Typically ±2% for wind speed, ±3° for direction
Zero start‑up wind speed: Measures from 0 m/s
360° omnidirectional: No dead angle
Harsh environment resistance: IP65/IP66, works in rain, snow, dust

4. Q: What are its typical measurement ranges?

Wind speed: 0–60 m/s
Wind direction: 0–360°
Resolution: 0.01 m/s (speed), 1° (direction)

5. Q: What output interfaces are available?

A: RS485 (MODBUS‑RTU) NMEA-0183

6. Q: Does it need calibration?

A: Factory‑calibrated; no field calibration required for most applications. For high‑precision use, annual verification with a wind tunnel is recommended.

7. Q: Why is the measured wind speed zero?

A: Actual wind speed is below the sensor’s minimum threshold (≈0.01–0.1 m/s)

8. Q: Can it work in extreme weather?

A: Yes, with IP65/IP66 protection. Heated models operate reliably at −40°C and resist freezing rain/ice.

9. Q: What applications is it suitable for?

A: Weather stations, wind farms, ports, bridges, environmental monitoring, smart cities, agriculture, and industrial IoT.

Additional information

Model	CDF-21A
OEM/ODM	Available
MOQ	1PCS
Lead Time	5-7 days
Certification	CE-EMC, RoHS, ISO9001
Size	22cm22cm23cm
Weight	1.98KG
Payment	T/T, L/C or Credit-card
