CDT-17B Soil PH Sensor

CDT-17B Soil PH Sensor

In Stock

Advantage:

On-line& real-time monitoring

Low impedance sensitive glass film

RS485 and 4-20mA output at the same time, directly connected to computer and PLC systems

Good repeatability and thermal stability

Internal signal isolation, strong anti-interference

Widely power supply

IP68 Waterproof Standard

Low drift, small size, fast response

Application examples:

Smart agriculture industy

Aquaculture

Sewage treatment

Soil remediation


More About CODA Cloud Platform →

Free Cloud Platform

Providing support for your weather station transition.

Real-time 24-hour data monitoring

Map site positioning

Curve chart analysis

Today’s weather status data

Email data alarm function

Export of historical data in CSV format

Wireless :4G & WIFI & Ethernet

View, analyze, and record your data on CODA Cloud®!

Description

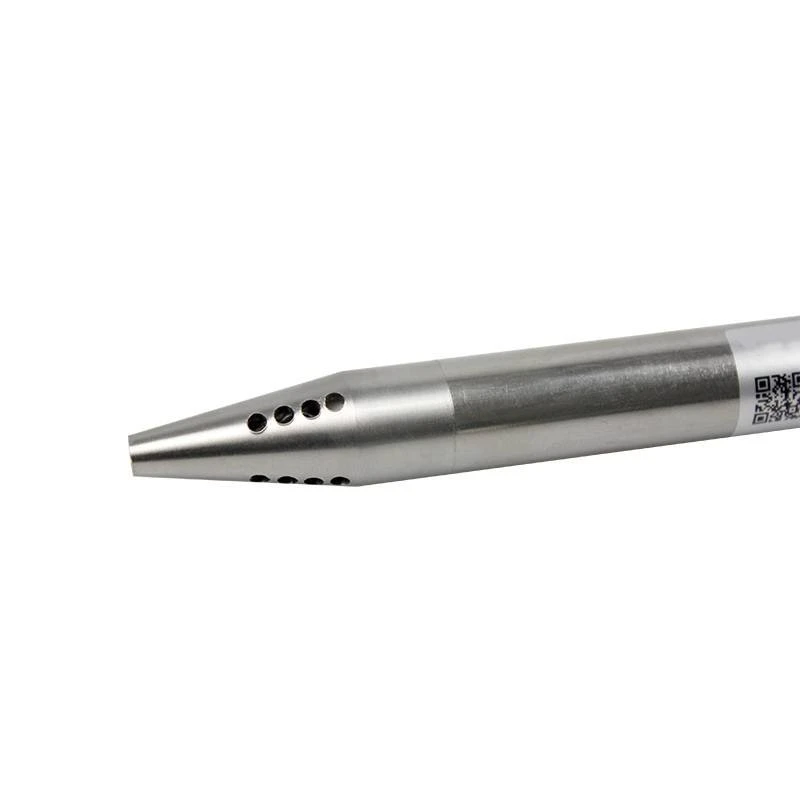

CDT-17B Soil PH Sensor

The CDT-17B soil pH sensor tester is a great tool for measuring pH levels. It uses a special glass that has low impedance. This sensor resists interference well and provides good consistency.

It also has thermal stability and does not need special calibration tools. The installation is simple, and it works well. You can use it to measure soil pH all the time. It is suitable for agriculture, environmental protection, and other areas.

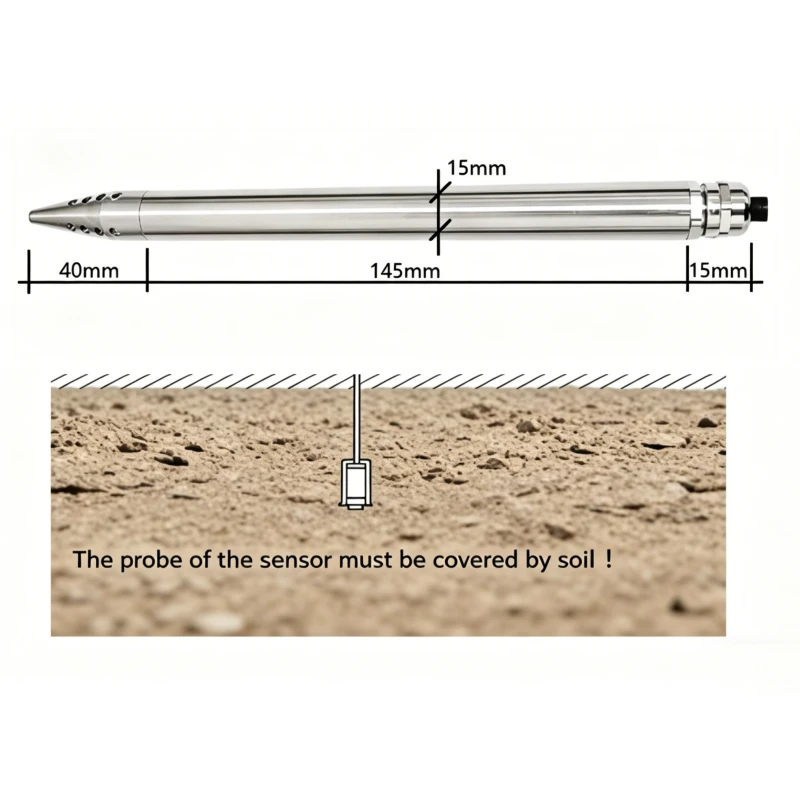

Dimnsion & Mounting

Soil PH Sensor

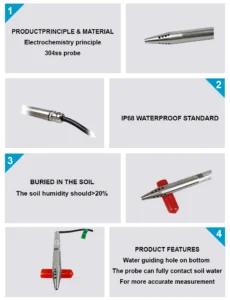

Soil PH details show

Soil PH Sensor

Application

Agricultural field:

◉In modern farming, soil pH meters are important tools for precision agriculture. Different crops need different pH levels in the soil. Blueberries grow best in acidic soils with a pH of 4.0 to 5.0.

Wheat grows best in soils with a pH between 6.0 and 7.0. Using soil pH sensors on farms helps monitor pH changes in real time.

◉Big changes in soil pH levels can predict agricultural disasters. Chronic acid rain or poor irrigation can greatly lower soil pH. This leads to soil acidification.

Soil pH sensors can notice changes over time. They send an early warning when the pH value drops below the crop’s safe range.



Forestry field:

◉Soil pH sensors are very important during the tree seedling process. They help find the best soil for seed germination and growth. Different tree species need different soil pH levels.

For example, pine trees grow well in acidic soils. In contrast, poplars can adapt to a wider range of soil pH values.



Environmental monitoring:

◉The change in soil pH can be linked to soil pollution. For example, in soils with heavy metal contamination, lower pH can increase heavy metal activity. This raises the risk of harm to the ecosystem.

Soil pH sensors can work with other pollution monitoring tools. Together, they help assess soil pollution and ecological risks.



Soil PH Sensor News

Smart Agriculture Industy Solution



Does your soil have a high pH? Fall is the best time to amend it.



Specifications

CDT-17B Specifications

ItemTechnical Specification
Measurement PrincipleElectrochemistry
Range0-14PH
Supply7-30VDC (power consumption<0.2W)
Accuracy±0.05PH
Resolution0.01PH
Response time<10s (soil moisture>30%)
Stability≤0.01PH/24h
Output Signal4-20mA & RS485 at the same time
Calibration CycleEvery 6 month
Operating Environment0-+80℃(<0.6MPa)
Cable length5m(default), customizable
Probe material304SS
Ingress ProtectionIP68
Storage10-60℃@20%-90%RH

Download

Accessories softwore

Additional information

Model

CDT-17B

OEM/ODM

Available

MOQ

1PCS

Lead Time

5-7 days

Certification

CE-EMC, RoHS, ISO9001

Size

30cm*17cm*8cm

Weight

0.4KG

Payment

T/T, L/C or Credit-card
