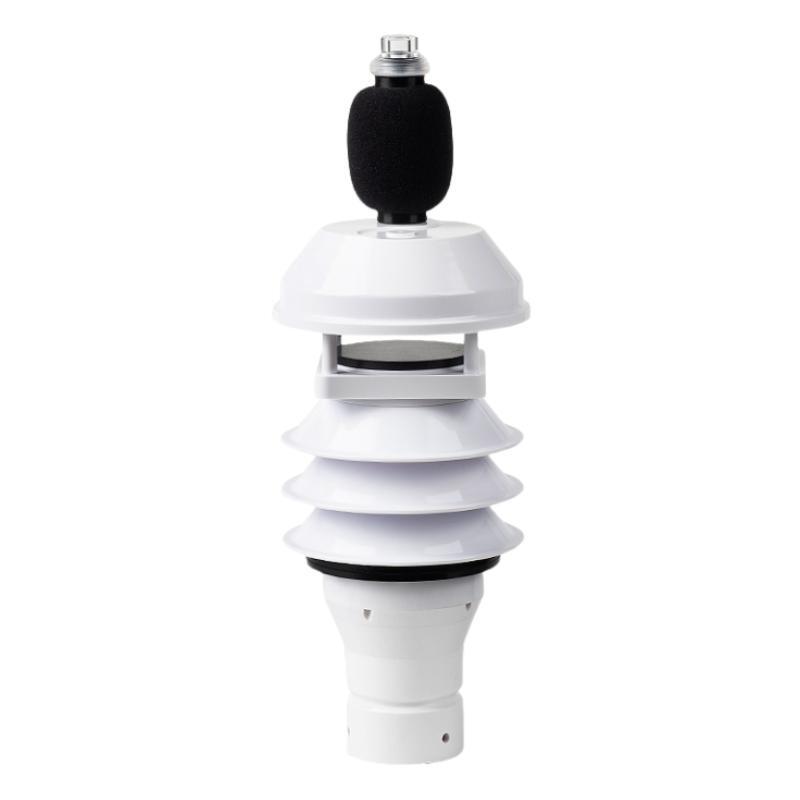

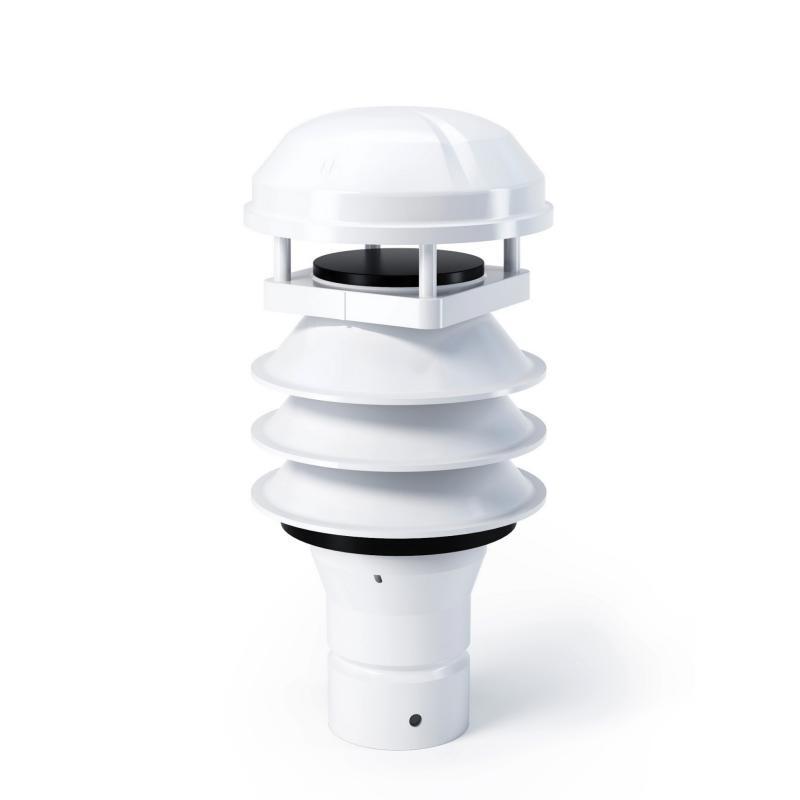

CDQ-T3C Multiparameter Automatic Weather Station

Specifications

CDQ-T3C-Specifications

ItemRangeResolutionAccuracy
Wind speed0-70m/s0.1m/s±3%
Wind Direction0-359°±3°
Temperature-40-80℃0.1℃±0.5℃
Humidity0-100%0.1%±3%
Barometric pressure300-1100hpa1hpa±1
Rainfall0-200mm/h0.01mm±8%(Wind speed ≤5m/s)
Altitude-500m-900m1m±5%
Radiation0-2000W/m30.1W/m2±5%
Illuminance0-200000LUX0.1LUX±5%
PM2.5 PM100-2000ug/m3PM2.5 :0.1 PM10: 1±5%
Visibility20-10000M1m±15%
Noise30-110dB1dB±3%
Supply7-24V DC adapter (included) 0.7W(MAX)
OutputRS232 RS485 SDI-12
Communication protocolModbus-Rtu NMEA-0183 ASCII
Level of protectionIP65
Size / weightDiameter:110mm*(217-298) / 0.38Kg
MaterialABA

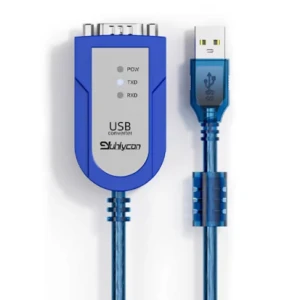

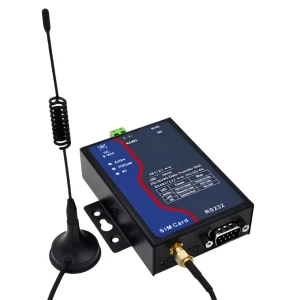

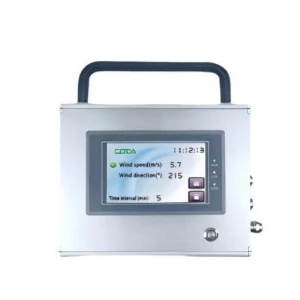

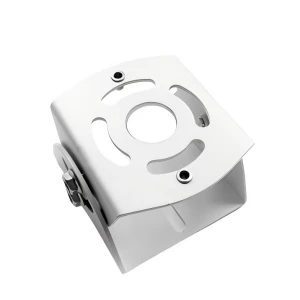

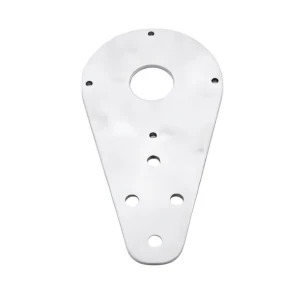

Accessories softwore

Download

Description

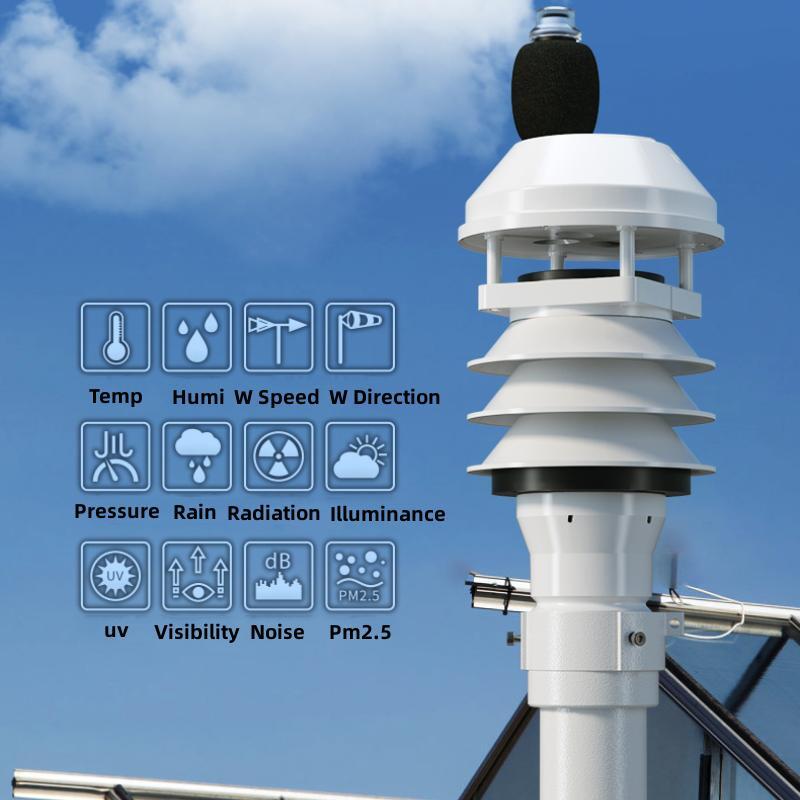

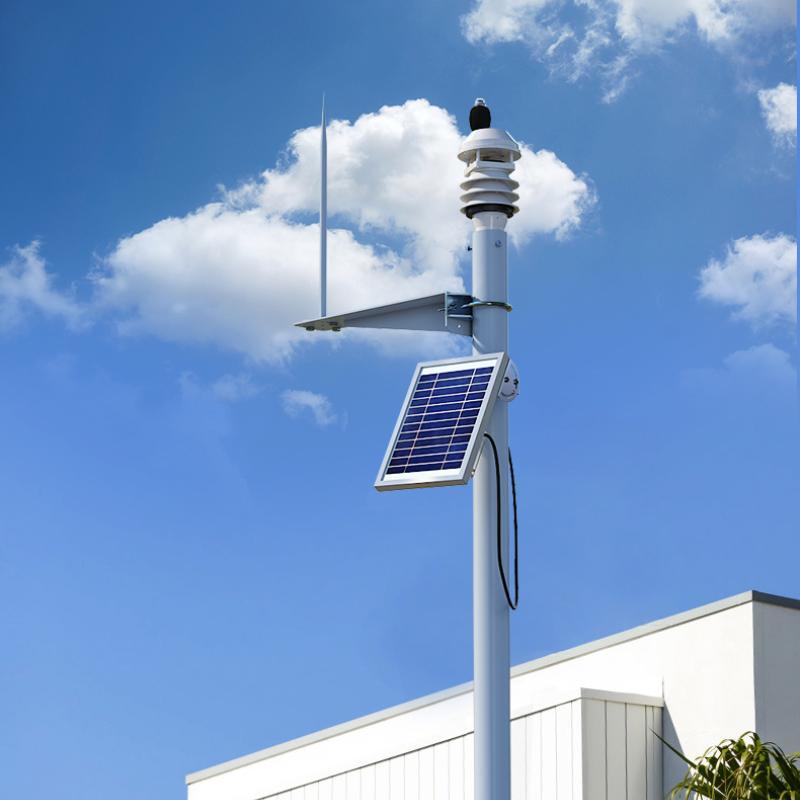

CDQ-T3C Multiparameter Automatic Weather Station

CDQ-T3C The small automatic weather station is a kind of civilian integrated weather station independently developed by our company, which can measure multiple meteorological parameters. It can simultaneously measure various meteorological elements such as atmospheric temperature, atmospheric humidity, wind speed, wind direction, air pressure, rainfall, radiation, illumination, UV radiation, visibility, PM2.5 and PM10.



Meteorological monitoring and forecasting:

◉A portable weather station can collect various weather data automatically and in real-time. This includes temperature, pressure, humidity, wind speed, wind direction, and rainfall.

It also includes how many hours of sunshine there are and how strong the radiation is. Technicians send this information to the weather center. They use wired methods such as fiber optics or cable. They also use wireless methods such as satellite communication or GPRS.



Agricultural field:

◉In modern farming, automatic weather stations give important data for precision agriculture. Farmers can improve their planting choices using real-time and past weather data from weather stations.

◉Data from the 5 in 1 Acurite weather station helps improve crop growth models. First, these models can show how crops grow in different weather conditions. They can forecast how fast things will grow and how much they will produce.

Putting the real weather data from the station into the crop growth model helps to update and improve it. This helps the model better match the local conditions.



Ecological environment research and protection:

◉Automatic weather stations for indoor and outdoor use are important tools. They help us monitor ecosystems. It offers long-term weather data for research on the environment. This data is important for understanding changes in ecosystems.

In forests, weather station data shows how temperature, humidity, and rainfall affect tree growth. They also affect water balance and the plants that grow under the trees.

Wireless Rain Gauge News

Automatic Weather Station Price | Coda Sensors

Professional Industrial Weather Station | Coda Weather Sensor

Multi-element Weather Station | Coda Sensors

Additional information

Model

CDQ-T3C

OEM/ODM

Available

MOQ

1PCS

Lead Time

5-7 days

Certification

CE-EMC, RoHS, ISO9001

Size

110mm*220mm

Weight

0.38kg

Payment

T/T, L/C or Credit-card
