Good air circulation around shield
Away from large masses (asphalt, masts, solar panels) especially metal items
Away from exhaust vents,electrical machinery and motors
Away from standing water, water fountains and sprinklers
Wind turbine system
| Item | Specifications |
|---|---|
| Number of plates | 4 -20 plates optional,type.:12,14,19 |
| Color | Yellowish |
| Material | Anti-radiation ABS engineering plastics & Stainless steel screw |
| Operating temperature | -40℃-+75℃ |
| Dimension | Inner diameter:44mm, Outer diameter:140mm Outer diameter:140mm |
| Optional accessories | Metal bracket(304SS), Embrace hoop screw(304SS) |

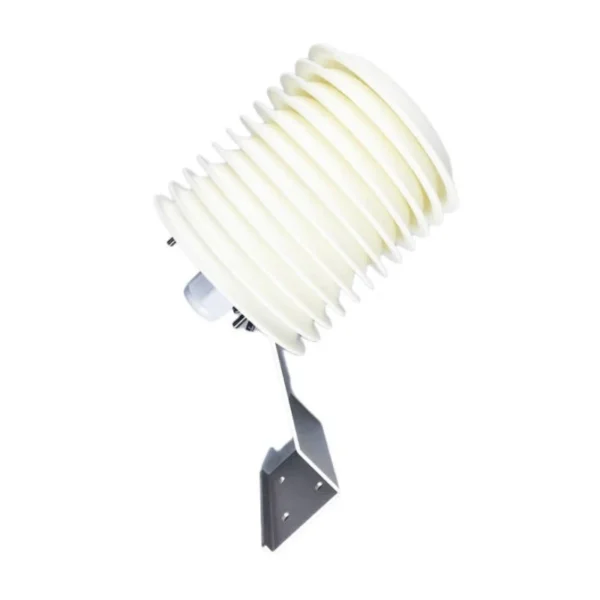

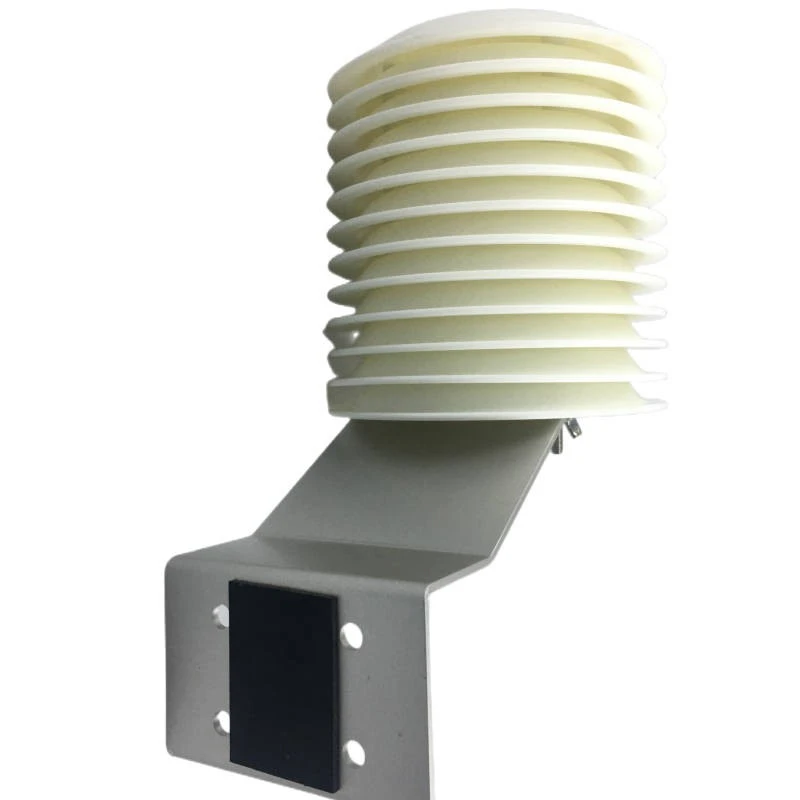

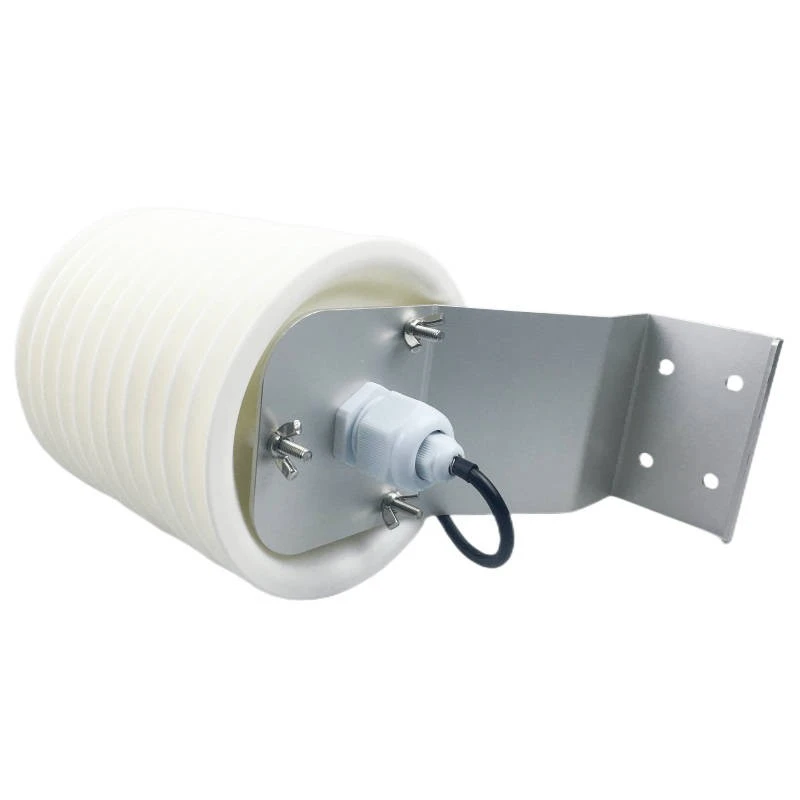

The Multi-Plate Radiation Shield protects temperature,relative humidity or barometric pressure sensors from error-producing solar radiation and precipitation. This shield relies on a combination of plate geometry, material and natural ventilation to provide effective shielding.
The radiation shield reflects sunlight from any direction. It prevents direct sunlight radiation and the reflection on the ground from reaching the sensor radiation. Also protects the instrument from the impacts of strong winds, rain, snow and so on. It allows air to pass freely, enabling the instrument to work in a ventilated environment and ensuring the accuracy of the measured data.
Meteorological observation:
◉In weather stations, Multi-Plate Radiation shields are essential for the protection of temperature sensors. It can effectively reduce the interference of solar radiation, ground reflection radiation and heat convection to temperature measurement.
◉Long-term meteorological observations depend on high quality data. The multi-panel radiation shield helps keep the temperature sensor stable under various weather conditions (such as high temperature, low temperature, strong wind, rain and snow, etc.).
Agrometeorology:
◉In agricultural production, it is crucial to know the temperature of the environment in which crops are grown. The multi-panel radiation shield is installed in the field meteorological monitoring station and can accurately measure the air temperature near the crop canopy.
Environmental monitoring:
◉In the study and monitoring of natural ecosystems, multi-panel radiators are used to accurately measure air temperatures in different ecological environments. For example, in a forest ecosystem, it can be installed at different forest levels to monitor the vertical distribution of temperature inside the forest.
CDW-33A Atmospheric Temperature&Humidity&Pressure Sensor
What Is The Effect Of Temperature And Humidity On Electronics?
| Model | CDP-10A |
|---|---|
| OEM/ODM | Available |
| MOQ | 1PCS |
| Lead Time | 5-7 days |
| Certification | CE-EMC, RoHS, ISO9001 |
| Size | 21cm*20cm*23cm |
| Weight | 0.52KG |
| Payment | T/T, L/C or Credit-card |
