Understanding Wind Speed and Direction
Wind speed and direction are important for understanding how air moves. Wind is the movement of air. It has two main parts: how fast it moves (wind speed) and the direction it goes (wind direction).
Wind speed shows how far the wind moves horizontally over time. It is often measured in various units. These include meters per second (m/s), knots (nautical miles per hour), and kilometers per hour (km/h). Wind direction, on the other hand, indicates where the wind is blowing from.

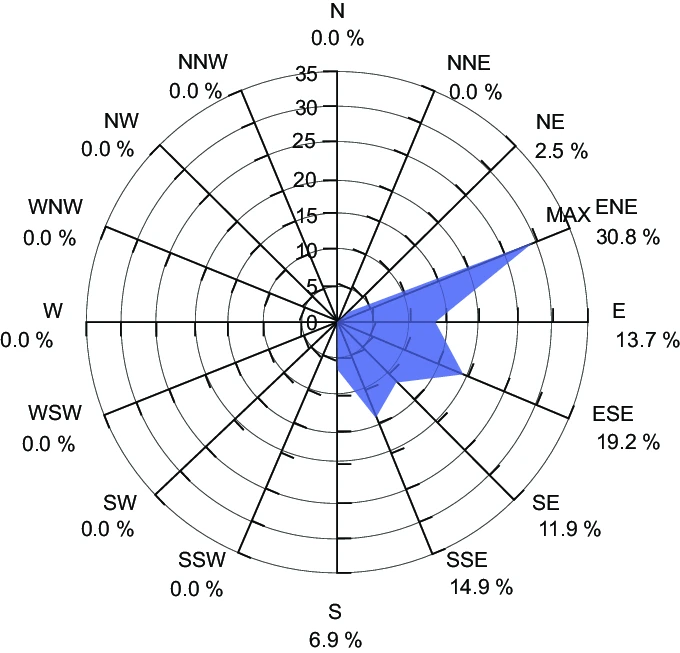

At ground level, we often use a 16-point compass. It shows us which way the wind blows. At higher altitudes, we use azimuth degrees. These degrees range from 0° to 360°.
The Beaufort Wind Scale is used in weather forecasts to show how strong the wind is. For example, when you hear “East Wind Level 3” in a forecast, it refers to a scale.
This scale was made by Francis Beaufort in 1805. The scale goes from 0 to 17 levels. It gives grades based on how wind affects land or sea.
**Factors That Affect Wind Speed and Direction**

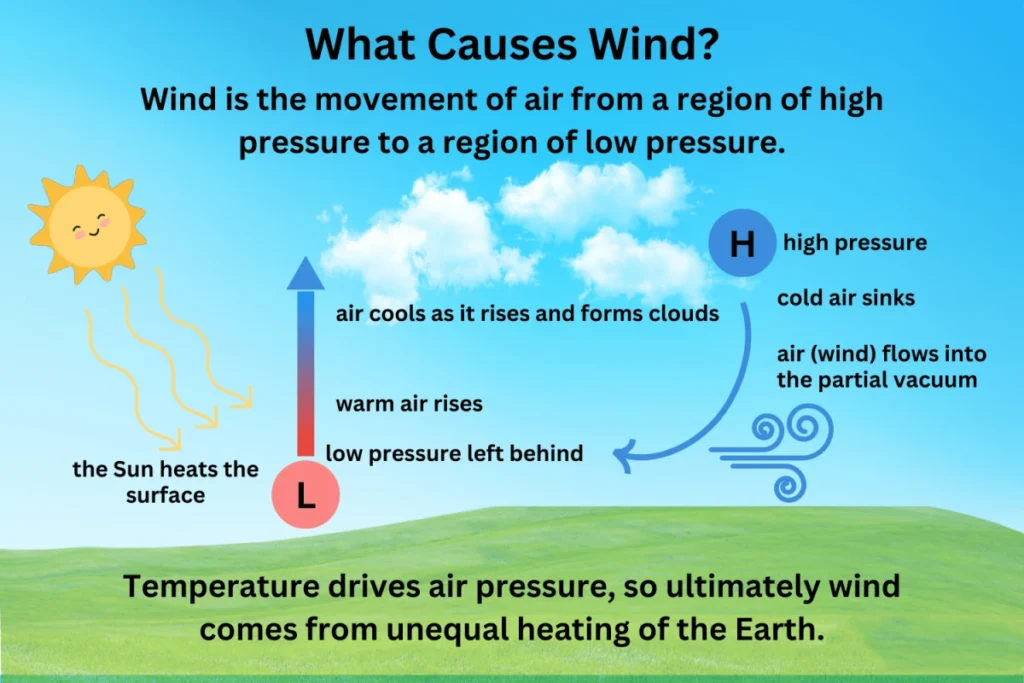

Wind speed and direction are influenced by many factors. These include temperature, pressure, and the Earth’s surface.
1. **Temperature**:
Warm air goes up, which creates low pressure. Cold air goes down, leading to high pressure. This difference makes wind.
2. **Pressure**:
Wind flows from areas of high pressure to areas of low pressure. The greater the difference, the stronger the wind.
3. **Earth’s Surface**:
Mountains, valleys, and buildings can change how the wind moves. They can stop or change the direction of the wind.
4. **Coriolis Effect**:
The Earth’s rotation affects wind direction. It causes winds to curve instead of moving in a straight line.
5. **Local Weather**:
Weather systems, such as storms, can change wind speed and direction very quickly.
Knowing these factors helps us predict how the wind will behave.
Wind speed and direction come from the interaction of several forces.
1. **Horizontal Pressure Gradient Force**: This force makes the wind move. It changes how fast the wind blows and which way it goes.
2. **Friction Force**: Ground-level friction slows down the wind. It does this by weakening the wind’s speed.
3. **Geostrophic Deflection Force**: The wind direction is influenced by the Earth’s rotation after the wind is created.
Other factors like land shape, temperature changes, buildings, and weather events also have important effects. For example, differences in temperature change air pressure.
This affects how fast and which way the wind blows. In cities, tall buildings can change how air moves. Weather systems like low-pressure areas, high-pressure zones, cold fronts, and warm fronts change the wind.
Connection Between Wind Speed and Wind Direction
Wind speed and direction are different, but they depend on each other. Stronger winds often cause bigger changes in direction. At the same time, frequent changes can affect wind speed.
Weather data on both metrics gives important information. This helps us understand air movement and predict wind behavior better.
Geographical features and weather systems greatly affect this interaction. Mountains, for example, may obstruct airflow, simultaneously decreasing wind speed and redirecting its path. In extreme weather, speed and direction can change quickly. This shows how they are connected when outside factors affect them.
Importance of Monitoring Wind Characteristics
Monitoring wind speed and direction is crucial across various fields such as aviation, marine navigation, weather forecasting, environmental management, and agriculture. Tracking these factors at the same time helps make better decisions.
This is important for safe flights, better farming, and predicting storms. Having accurate data on these elements helps experts understand air movements. This helps them react well to changing conditions.
Devices that measure wind speed and direction can be simple tools or advanced electronic systems. Here is a summary of the equipment often used in this field:
1. **Portable Anemometer**
This handheld device measures wind speed using pressure sensors and temperature sensors. These two parts work together. The pressure sensor detects changes in static pressure caused by airflow.
Wind speed and air temperature are connected. Changes in temperature affect how dense the air is. This, in turn, impacts calculations of wind speed.
Air moves through a small hole in the anemometer. This creates a pressure difference between its two ends. Stronger winds create bigger pressure differences. These differences are turned into electrical signals by advanced sensors.
This helps to measure the wind speed. Portable anemometers are known for their accuracy. They can even detect small changes in the wind.

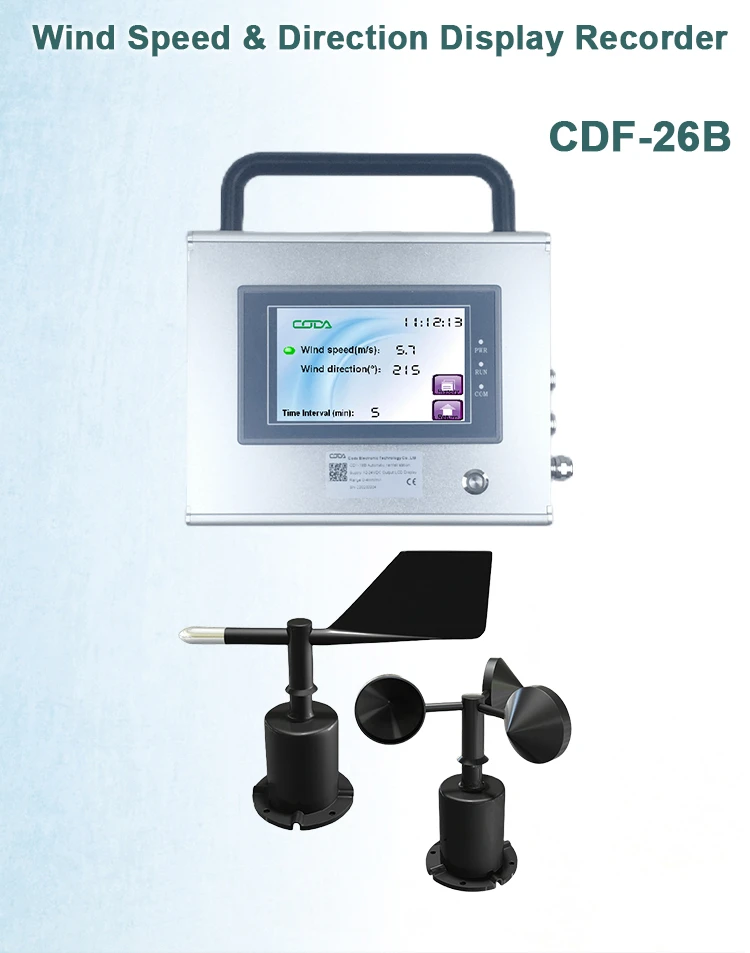

2. **Wind Speed and Direction Sensor**
The **three-cup wind speed sensor** and **wind vane sensor** are common tools used for simple wind measurements. These tools are affordable and reliable. They give accurate results using simple and strong mechanisms.
– **Three-cup Wind Speed Sensor**: It has three cups placed evenly around a central shaft. This shaft is linked to a tachometer. As the wind turns the cups, the sensor module changes this movement into electrical signals. This creates wind speed readings.
– **Wind Direction Sensor**: A wind vane detects wind direction. It does this by using the pointed arrow that rotates. When the wind blows against the tail of the vane, the arrow points in the direction of the airflow. This information is sent to a connected code disk, which shows the wind direction in numbers.

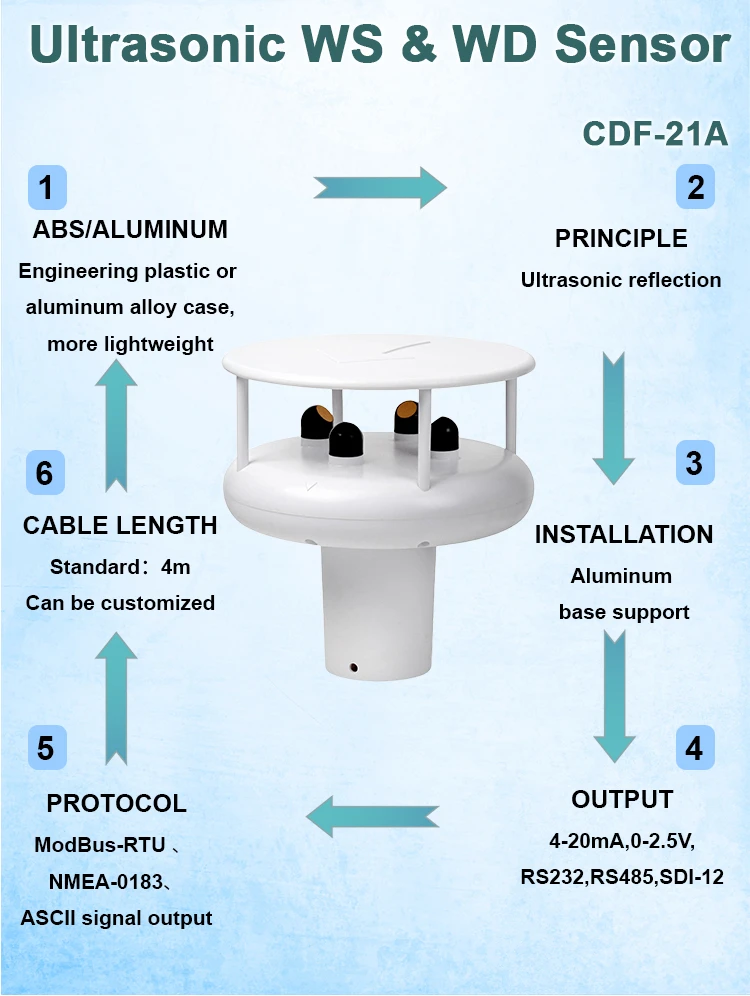

3. **Ultrasonic Anemometer**
An ultrasonic anemometer is a modern tool. It measures wind speed and direction with sound waves. This tool measures wind data accurately.
It does this by looking at time and frequency differences. These differences are like Doppler shifts between the sound waves we send and receive.
Ultrasonic anemometers need very little maintenance. This is because they do not have moving parts that can wear out. Their design ensures reliability for long periods. Users can change output units, frequencies, and formats to fit their needs.
4. **Satellite Remote Sensing Equipment**
Satellite technology helps us understand wind patterns in the atmosphere. It does this by looking at the movement of gases, cyclones, and clouds.
– **Cloud Tracking**: Cloud movement shows wind speed and direction at different heights. Cumulus clouds usually mean low-altitude winds, while cirrus clouds indicate high-altitude winds.
We can find cloud heights using infrared temperature maps. Colder temperatures show that clouds are at higher altitudes. This helps us learn about big wind patterns.
By using different devices, researchers, meteorologists, and other experts can monitor wind conditions accurately. They can evaluate these conditions in different places and heights. This helps us study the weather. It keeps planes safe and supports the use of renewable energy.
