Description
CDL-17B RADAR SURFACE WATER FLOW VELOCITY SENSOR
Overview
The CDL-17B radar flowmeter is capable of continuously measuring the water flow of rivers and open channels. It combines with the radar flow meter and the radar water level gauge to measure the surface velocity and water level in a non-contact manner. For regular channel sections, one can use conventional mathematical formulas to calculate flow results.
Key Features
• Equipped with 24GHz (24-26GHz) millimeter-wave radar, supports speed measurement range of 0.1~20m/s and distance detection up to 45m
• Boasts a resolution of 0.01m/s for flow speed and 1mm for distance measurement
• Features a 12° (10°) narrow beam angle, effectively focusing radar signals to avoid interference

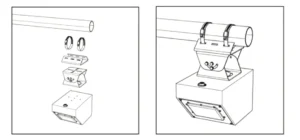

• Supports pitch angle adjustment (30~70°, recommended 55~60°)
• IP68 high protection grade, withstands extreme operating temperature (-40℃~+80℃)
Select Options
