High sensitivity
Applicable to various harsh environments
High precision, wide measuring range
Compact size
Easy installation
Agrometeorological research
| Item | Specification | |
|---|---|---|
| Range | 0-2000lux,0-20klux,0-200klux optional | |
| Spectral range | 380-780nm | |
| Supply | 5VDC,12-24VDC | |
| Output | 4-20mA,0-5V,0-10V | RS485 |
| Accuracy | <±5%FS | <±4%FS |
| Response time | 1s | |
| Temperature effect | ±0.2%/℃ | |
| Repeatability | <1%FS | |
| Display | LCD optional(ABS housing) | |
| Operating temperature | -40℃-+75℃ | |
| Weight(unpacked) | 170g | |
| Shell material | ABS,metal shell can be customized | |

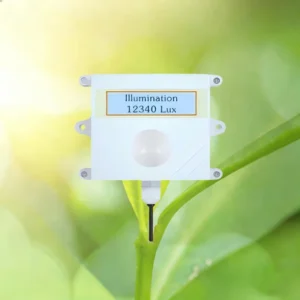

The CDG-14A Illuminance sensor is an outstanding device with remarkable characteristics. It is extremely sensitive and capable of detecting even the faintest traces of light. Its wide measuring range enables it to accurately assess illumination levels across a diverse spectrum of lighting conditions. With high precision, it provides reliable and accurate data, which is crucial for various applications.
The excellent waterproof performance ensures its durability and functionality even in wet or humid environments. This makes it highly suitable for a vast majority of applications. In particular, it proves invaluable in agricultural greenhouses where precise light measurement is essential for optimizing plant growth and development. Illuminance Sensor also plays a significant role in urban lighting projects, facilitating effective lighting management and enhancing the overall quality and efficiency of illuminated areas.
Agricultural field:
◉Llluminance is one of the key factors affecting plant growth in greenhouse cultivation. The illumination sensor can monitor the light intensity in the greenhouse in real time, and help growers accurately adjust the opening and closing degree of the sunshade net and the opening and closing of artificial light equipment according to the needs of different plants for light. For example, for light-loving plants such as tomatoes, when the illumination is below a certain level, the artificial light supplement system is turned on to ensure that the plant can carry out sufficient.
Solar photovoltaic:
◉Illuminance is one of the important factors affecting the efficiency of solar panel power generation. The illuminance sensor is installed in the solar photovoltaic system, which can monitor the light intensity in real time, and analyze the performance of the panel under different lighting conditions combined with the power generation data of the panel. This helps to optimize the installation Angle, orientation and layout of solar panels to maximize the use of solar light energy and improve power generation efficiency.
What is an illuminance sensor?
| Model | CDG-14A |
|---|---|
| OEM/ODM | Available |
| MOQ | 1PCS |
| Lead Time | 5-7 days |
| Certification | CE-EMC, RoHS, ISO9001 |

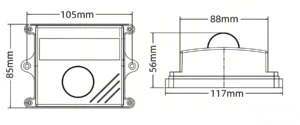

| Size | 17cm*16cm*6cm |
| Weight | 0.27KG |
| Payment | T/T, L/C or Credit-card |
