What do we mean by a capacitive level gauge? How does a capacitive level sensor work?
A capacitive level gauge, also known as a capacitance-type level sensor or transmitter, is an advanced instrument used to measure the level of liquids or solids in tanks or vessels. Its operation is based on the principle of capacitance, which involves the ability of two conductive surfaces separated by a dielectric (insulating material) to store an electric charge. Here, the tank typically acts as one electrode while a probe within the tank serves as the other. When the substance inside the tank—whether liquid or solid—makes contact with these electrodes, it forms a dielectric that alters the system’s capacitance. By detecting changes in this capacitance through sensitive electronic circuits and software, the system provides precise and real-time measurements of the material level.

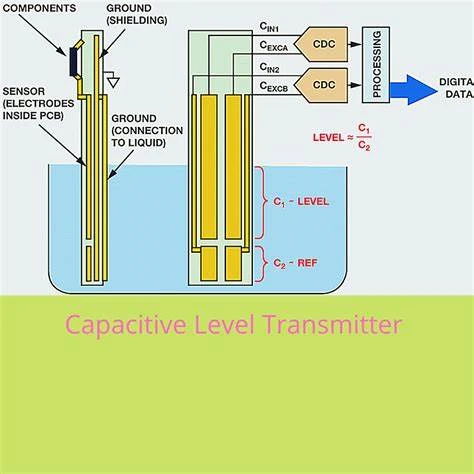

capacitive level sensor work principle
The working principle is centered on variations in the dielectric constant, which directly impact capacitance. As the substance fills the tank, replacing air or vapor with a material that has a higher permittivity, the measured capacitance increases proportionally. We convert these changes into standard signals (typically current signals). Then, we can transmit these signals remotely to control rooms for centralized display, alarms, and automated regulation using secondary instruments or computer systems. Because of its versatility, we widely use a capacitive level gauge across industries such as oil and gas, chemical processing, and food production.
Engineers design capacitive level sensors for demanding conditions. These sensors work accurately in high – temp, high – pressure, corrosive, crystallization – prone, clog – prone, and freeze – prone environments. They convert material levels into current signals. These signals resist interference from temperature, humidity, conductivity, and pressure changes. These sensors are highly reliable and exhibit strong resistance to interference.
These sensors can measure a wide range of media, including corrosive liquids (acids, alkalis, salts, sewage), high – temperature media (-40°C to +80°C, or -70°C to +260°C optionally), and high – pressure environments (-0.1 MPa to 0.5 MPa).
They can also function effectively in sealed containers, regardless of the medium’s viscosity, density, or working pressure. Furthermore, features like on-site calibration make them user-friendly and adaptable for diverse industrial operations.
**Key Features of Capacitive Level Gauges**
1. **Simple and Robust Design**: With no moving or elastic parts, these gauges are highly reliable and require minimal maintenance. Regular maintenance protocols are typically unnecessary.
2. **Wide Signal Output Options**:
Accommodates integration with various system configurations for enhanced flexibility.
3. **Adaptability to Extreme Conditions**:
Suitable for measuring liquid levels in high – temp and high – pressure environments, regardless of temperature changes, liquid density, vessel shape, or pressure.
4. **Corrosion Resistance**:
Particularly advantageous for handling strong corrosive liquids such as acids and alkalis.
5. **Protection Features**:
Includes safeguards against over-current, over-voltage, and power polarity issues.
The Working Principle of a Capacitive Level Sensor
A capacitive level sensor operates by detecting changes in capacitance to measure the liquid level in a container. It consists of a metal rod, which functions as one electrode of a capacitor, and the container wall, which serves as the other electrode. The substance between these two electrodes—the liquid and the gas above it—acts as the dielectric medium.
The capacitance changes as the liquid level fluctuates because the liquid’s dielectric constant (ε₁) is different from that of the gas above it (ε₂). For example, when ε₁ > ε₂, a rising liquid level raises the overall dielectric constant, thus increasing the capacitance.Conversely, a decrease in the liquid level lowers the dielectric constant and reduces the capacitance. This variation in capacitance enables the sensor to determine the liquid level accurately.
The sensitivity of a capacitive level sensor is influenced mainly by the difference between the dielectric constants of the liquid and gas. Stable values for ε₁ and ε₂ are essential to ensure accuracy. To mitigate issues caused by conductive liquids, people usually coat the metal rod with an insulating layer, which minimizes safety risks and measurement errors.
Manufacturers design capacitive level gauges to be compact, enable remote transmission and dispatching, and suit corrosive or high – pressure environments.
Advantages and Disadvantages of Capacitive Level Sensors
Capacitive level sensors rely on changes in capacitance between two electrodes to measure liquid levels. The performance and sensitivity of these sensors are fundamentally tied to the difference in the dielectric constants of the gas and liquid media. If these constants vary significantly or fail to remain stable during measurement, inaccuracies may occur.
Capacitive level gauges use metal electrodes with an insulating layer to prevent errors from conductive liquids, ensuring reliable measurements and safety. Their compact design makes them viable for applications in high-pressure conditions and challenging media. Additionally, with features like remote transmission and calibration adjustments, these instruments offer substantial functional flexibility.
Capacitive level sensors are simple, efficient, and adaptable, making them essential for liquid – level detection in many industrial settings. With proper understanding and application, they can deliver reliable performance.
In summary, this breakdown highlights the working principles, features, advantages, and limitations of capacitive level sensors. Understanding these aspects will help you make informed decisions regarding their use. It’s hoped that this information proves useful for your needs.
