how radar sensor works
In today’s industry, measuring the amounts of liquids and solids in tanks and silos is very important. It helps with smooth operations, managing stock, and keeping things safe.
Radar level sensors are a reliable and flexible choice for measuring levels. They use electromagnetic radio waves to find out how much material is in containers. These sensors offer many advantages over older methods, like float-based or ultrasonic sensors.
In this article, we will explore how radar level sensors work. We will look at their parts and uses. This will help us understand how radar level sensor work well in different industries.

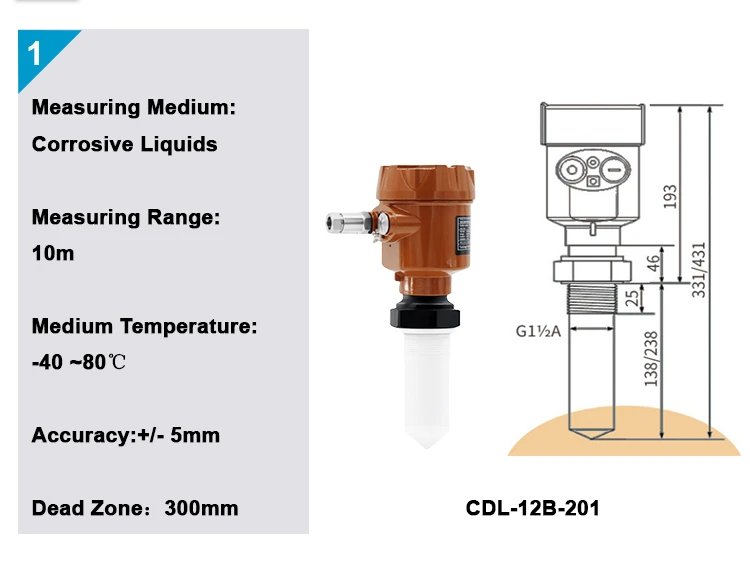

Working Principles of Radar Level Sensors
A radar level sensor works based on the time-of-flight (ToF) measurement. This is like how aviation and weather radar systems measure distance.
Radar level sensors send out high-frequency waves. These waves are usually in the microwave range, from 6 GHz to 80 GHz. Different frequencies give different levels of performance.
This makes them good for many uses. They send these waves to the surface of the material in a tank or silo.

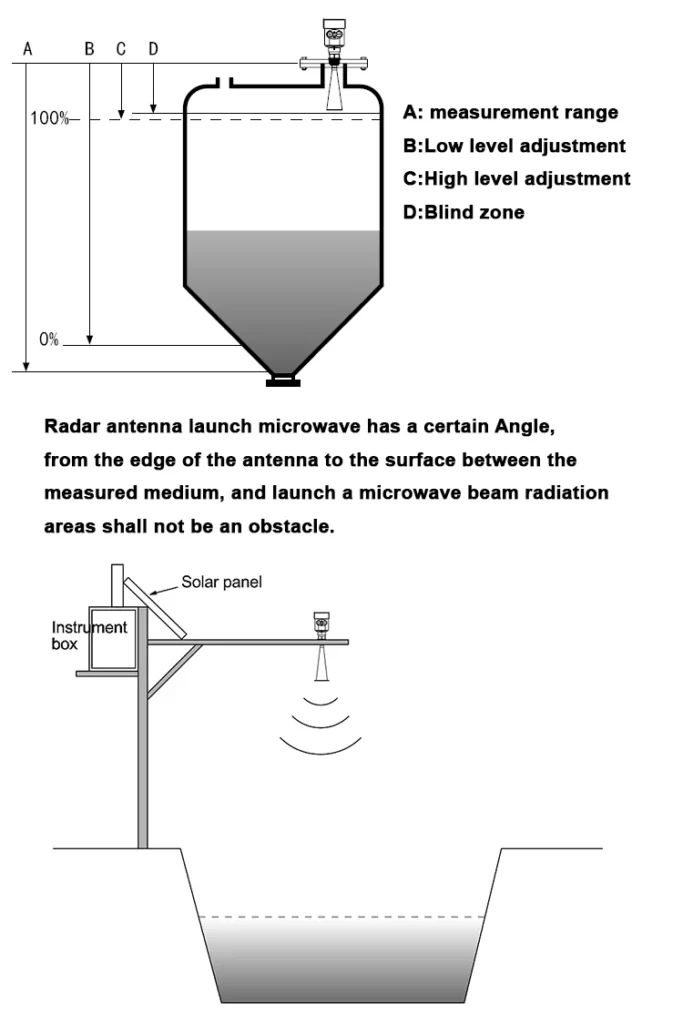

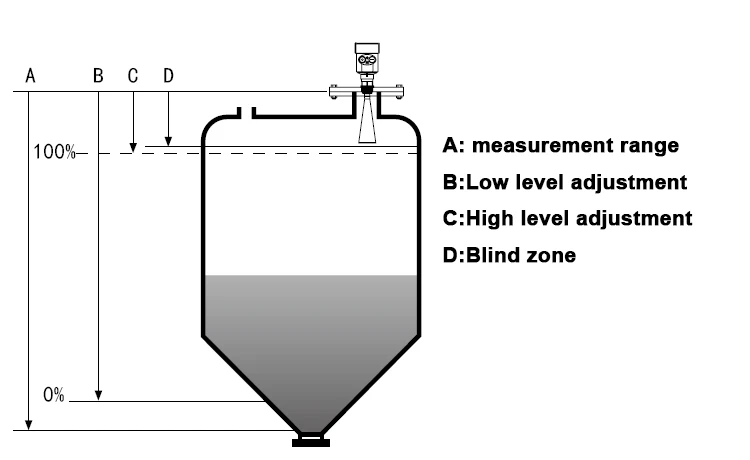

When the electromagnetic waves hit the surface of the liquid or solid, they bounce back to the sensor. The sensor has a receiving antenna that captures these reflected waves. We can measure the time it takes for waves to travel from the sensor to the material and back. This helps us find the distance between the sensor and the material level.
Key Components of Radar Level Sensors
Transmitter
The transmitter generates and sends out electromagnetic waves. It has a microwave oscillator that makes high-frequency signals. These signals are amplified and sent to the antenna for transmission.
The quality and strength of the waves emitted are important for how well the sensor works. This affects its range, accuracy, and ability to function in different materials or conditions like dust, steam, or foam.
Antenna
The antenna connects the sensor’s internal parts to the outside world. Engineers design it to send electromagnetic waves in a specific pattern to the material surface. It also picks up the reflected waves very well.

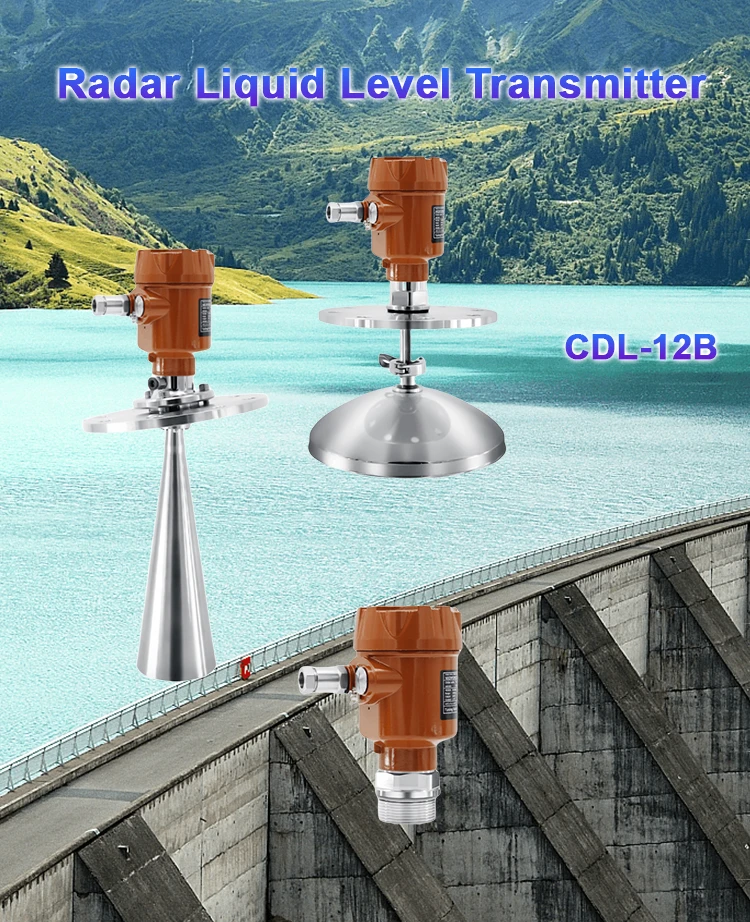

Radar level sensors can use different types of antennas. One type is the horn antenna. Horn antennas have high gain and a narrow beam. This helps with focused wave transmission.
They are good for tasks that need exact targeting. This includes small tanks or measuring materials in certain parts of a big container.
Other common types of antennas are parabolic dish antennas. These antennas are used for long-range measurements. They give strong signals over long distances.
There are also flat antennas. These antennas are smaller and fit well in tight spaces.
Receiver
The task requires the receiver to detect the weak reflected electromagnetic waves that the antenna receives. It boosts the received signals so they can be processed well. It also removes any unwanted noise or interference that may have come during the wave travel.
Advanced receivers use complex signal processing methods. These include frequency mixing and demodulation. They help extract important information from received signals. This information includes the real time delay linked to wave reflection.
Signal Processing Unit
This is the brain of the radar level sensor. The signal processing unit checks the signals from the receiver. It measures the time-of-flight using the features of the reflected waves.
It also uses different methods to adjust for things that can affect measurement accuracy. These things include changes in temperature and pressure in the tank. Such changes can slightly change how fast electromagnetic waves travel.
The signal processing unit can filter and average data. This makes the measured level values more stable and reliable.
Finally, it turns the calculated distance into a useful output signal. This signal can be a 4-20 mA analog current loop. It can also use digital communication protocols like HART, Modbus, or Profibus. Additionally, it may send data wirelessly for remote monitoring.
Types of Radar Level Sensors and Their Operation
Guided-Wave Radar (GWR) Sensors
Guided-wave radar sensors, or time-domain reflectometry (TDR) sensors, work on a time-of-flight principle. However, they differ in how they send and receive electromagnetic waves.
GWR sensors do not send waves freely into the tank. Instead, they use a waveguide. This waveguide can be a single rod, a coaxial cable, or a twin probe.
The electromagnetic waves move through the waveguide until they hit the material’s surface. At this surface, some of the wave reflects back along the waveguide to the sensor.
GWR sensors have an advantage because they guide wave movement. This helps reduce the effects of outside factors like turbulence, foam, or vapor layers in the tank. The waves stay in the waveguide, so they are less likely to scatter or absorb these interfering elements. GWR sensors work well for measuring thick liquids, foamy substances, or materials with complex surfaces.
Non-Contact Radar Sensors
Non-contact radar sensors are the most common type. They work by sending out electromagnetic waves into the tank. This happens without needing a physical connection to the material. As described earlier, these sensors rely on the reflection of waves from the material surface. They provide many benefits. One key benefit is that there is no contact with the measured material. This reduces the risk of contamination. It also prevents damage to the sensor from corrosive, abrasive, or high-temperature substances. Non-contact radar sensors are very versatile. They can be used for many applications. For example, they measure chemical levels in industrial reactors. They also monitor grain inventory in large silos.
Factors Affecting Radar Level Sensor Performance
Several factors can influence the performance and accuracy of radar level sensors. The dielectric constant of the measured material is a critical parameter. The dielectric constant shows how well a material can store electrical energy in an electric field. It also affects how electromagnetic waves interact with the material’s surface. Materials with a high dielectric constant, like water or many water-based solutions, reflect electromagnetic waves better. This leads to stronger signals and more accurate measurements. Materials with a low dielectric constant, such as hydrocarbons or dry powders, reflect waves less effectively. This may require using higher-frequency radar sensors or extra signal processing techniques to get accurate level readings.
Environmental conditions also play a significant role. Changes in temperature and pressure inside the tank can change the density of the air or gas above the material. This can affect how fast electromagnetic waves travel. Dust, steam, or condensation on the sensor’s antenna can disrupt wave transmission and reception. This can cause measurement errors. To reduce these effects, modern radar level sensors often have built-in features for temperature and pressure compensation. They design their antennas to resist environmental contaminants or to allow for easy cleaning and maintenance.
Applications of Radar Level Sensors
Radar level sensors find extensive use in a wide variety of industries. In the oil and gas industry, workers measure crude oil, refined products, and chemicals in storage tanks. This helps manage inventory accurately and prevents overfilling or shortages. In the chemical processing industry, radar sensors help monitor the levels of reactants and products. They are used in reactors, distillation columns, and other process vessels. This allows for precise control of chemical reactions and improves production processes.
The food and drink industry uses radar level sensors. These sensors measure liquid levels like milk, juice, and syrup. They also measure granular materials such as flour and sugar. These sensors do not come into contact with food and manufacturers can make them from safe materials. This means they meet the strict hygiene rules of the industry. In the water and wastewater treatment field, radar level sensors help monitor water levels. They are used in reservoirs, tanks, and treatment plants. This technology supports efficient water management and ensures that pumping and treatment systems work properly.
In conclusion, radar level sensors have changed level measurement. They are accurate, reliable, and do not invade the process. These sensors use electromagnetic wave propagation and advanced signal processing. They can give accurate level measurements in many industrial applications. This works well, no matter the material or environmental conditions. As technology advances, radar level sensors will become more advanced. They will offer better performance, improved connectivity, and easier use. This will expand their use in today’s industrial world.
