Explanation of Road Sensors
Road sensors refer to an array of devices designed to monitor various conditions impacting road safety and efficiency. These sensors collect information on road surface conditions, weather factors, noise levels, and vehicle data.
They are usually placed on both sides of the road. They give real-time information. This includes details about water or ice, visibility in fog, and more.
Their data is sent to traffic management departments. This helps them act quickly for cleaning, repairs, and improving safety.
*Categories of Road Sensors*
To keep roads safe, these sensors check the weather and road conditions. They also watch how vehicles act. This helps reduce the chance of accidents. Here is a summary of the main types of road sensors:
**Weather Monitoring Road Sensors**

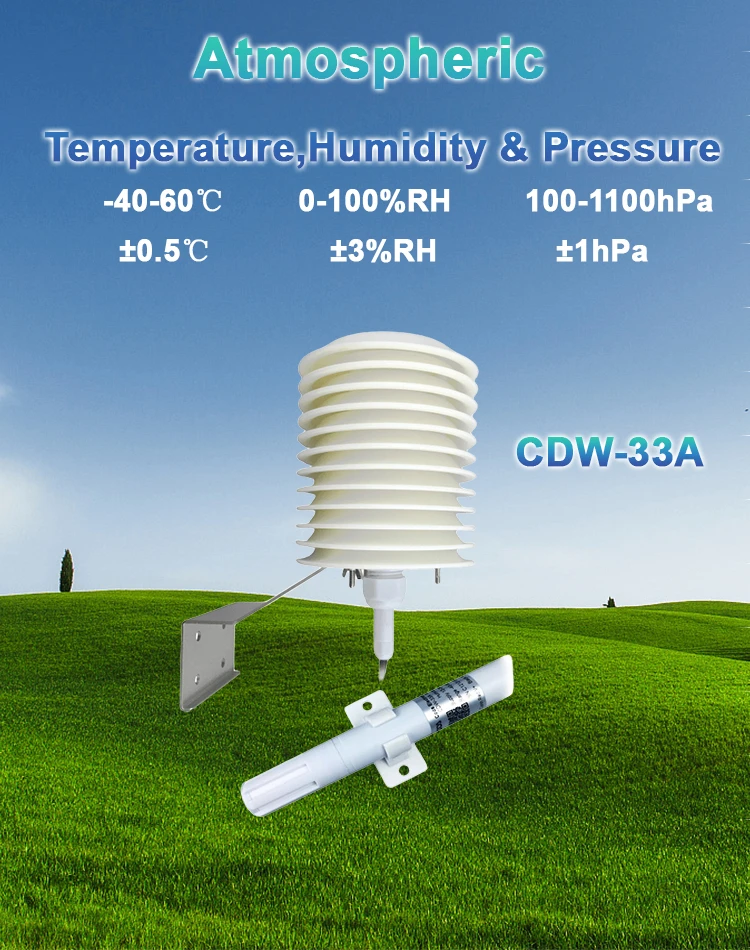

1. **Sensor for Measuring Temperature**
Temperature sensors check the temperature of the road and the air. They help find icy conditions. They use infrared technology that does not need to touch anything. This makes them great for remote sensing without harming the road surface.
Infrared temperature sensors are useful when you cannot put in a buried temperature sensor. The setup is safe and easy. It does not need road closures or changes. These sensors can be placed on current weather stations or buildings that have clear views of the road.

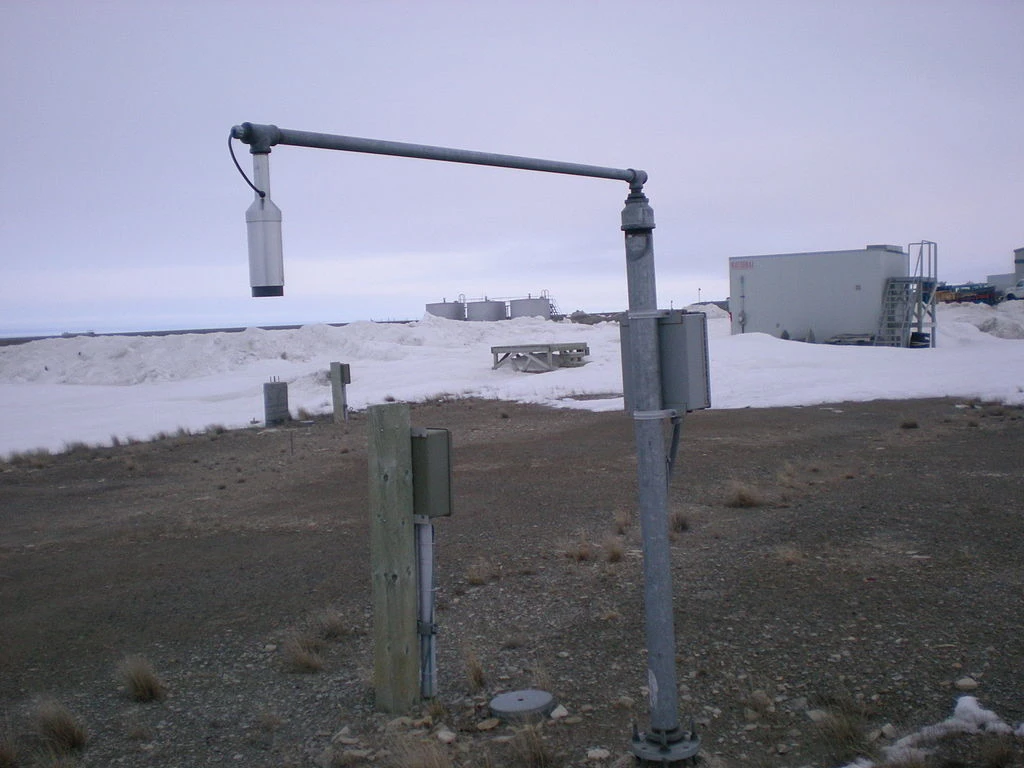

2. **Snow Depth Sensor**
These sensors provide real-time readings of snow depth while it is snowing. They help traffic management update road condition alerts fast. There are two main technologies used: laser measurement and ultrasonic measurement.
Laser sensors are very accurate because they use methods to adjust for temperature changes. On the other hand, ultrasonic sensors are better at resisting interference and respond faster.

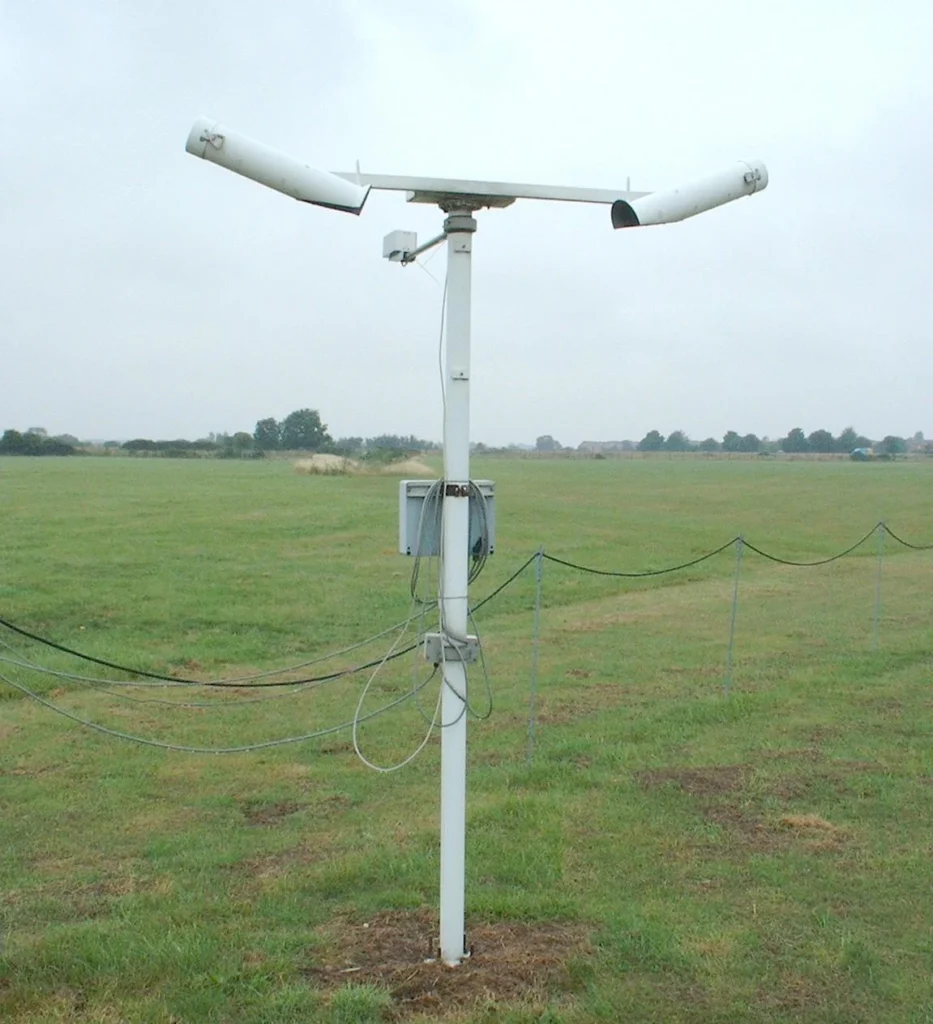

3. **Visibility Sensor**
Visibility sensors are very important when the weather is foggy. Reduced visibility can raise the risk of accidents, such as rear-end collisions. These sensors use a 35° forward scattering method.
They watch road conditions and give regular data to traffic management systems. They help people make good choices about road closures when visibility is low.
4. **Rain Gauge**
Rain gauges measure how much it rains near roads. They give important data on current and total rainfall. In colder months, temperature sensors help us see if ice is forming on the road.
Tipping bucket rain gauges are often used in road monitoring systems. They are dependable and can be set up on weather stations. This setup allows for accurate rainfall measurements from a distance.

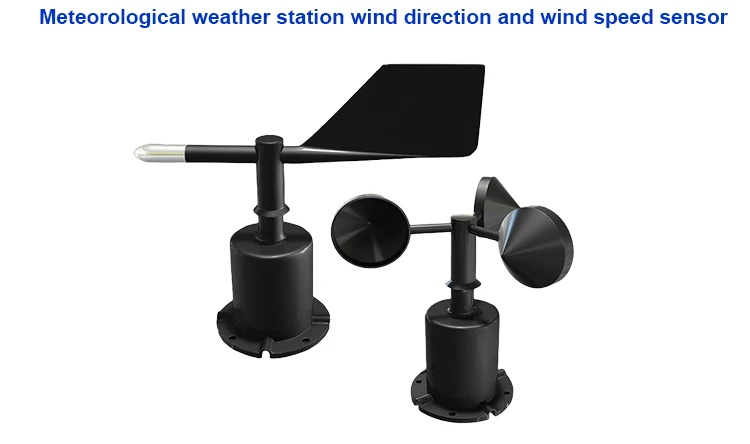

5. **Wind Speed and Direction Sensor**
Wind speed and direction greatly affect traffic safety, especially in bad weather. The two main types are mechanical wind sensors and ultrasonic wind sensors.
Mechanical sensors can work alone or together to measure wind speed or direction. Ultrasonic wind sensors are small and easy to install. They also provide very accurate measurements.
**Road Sensors for Monitoring Road Surfaces**
1. **Friction Sensors**
Friction sensors are placed in road surfaces to find slippery or icy conditions. These devices come in three main types: infrared, resistive, and liquid film sensors. Vehicles can drive over friction sensors without harming them.
This makes sensors great for real-time monitoring in rain or snow. The data they provide helps traffic teams keep roads safe and lower accidents.
2. **Waterlogging Sensors**
Waterlogging sensors are put on roads that often flood. This is especially true in places with low ground. These help staff quickly remove water to keep driving safe.
There are two main types of waterlogging sensors: ultrasonic and radar. Both use methods that do not require contact. Ultrasonic sensors are often used because they are placed underground. This helps reduce interference with road traffic.
**Road Sensors for Monitoring Vehicles**
1. **Radar Sensors**
Radar sensors help keep vehicles at legal speeds. This is important to stop accidents. These sensors are placed by the roads. They measure where vehicles are, how fast they go, and how much traffic there is.
They help remind drivers to follow the rules. And they help traffic management teams improve traffic flow. This makes roads work better.
2. **Weight Sensors**
Weight sensors help stop road damage and prevent collapses caused by heavy vehicles. They control the flow of these vehicles.
Sensor thresholds are set based on factors such as road capacity, conditions, and traffic levels. These sensors are either dynamic or static. They offer different ways to check vehicle weight.
**Road Sensors for Monitoring the Environment**

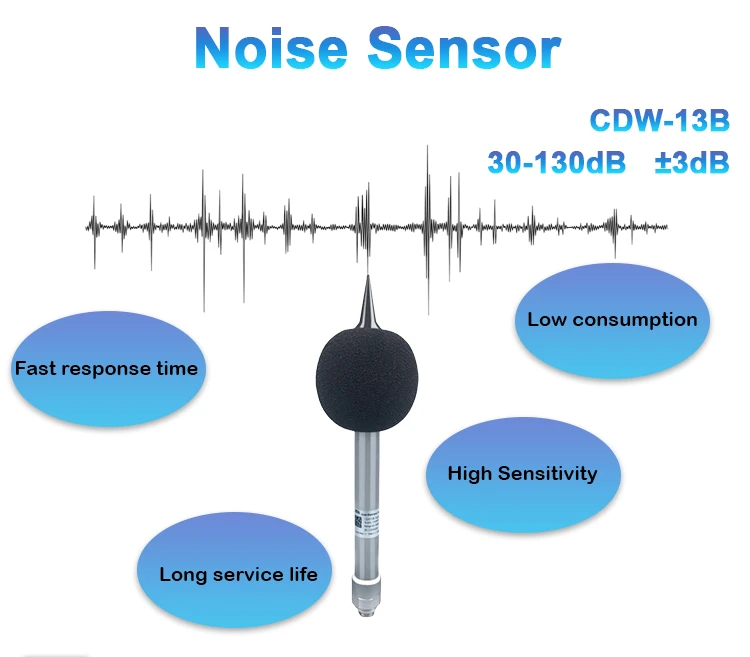

1. **Noise Sensors**
Noise sensors are set up close to homes or public areas. They check sound levels from vehicles that can disrupt daily life. These sensors keep track of traffic noise and help manage it. This helps make the area quieter and more comfortable for nearby residents, students, and workers.
**Advantages and Challenges of Road Sensors**
**Advantages**
1. **Data Sharing**
Road sensors send data to traffic management systems through the Internet of Things (IoT). This allows authorities and drivers to access information in real time. This helps cars talk to each other. It allows drivers to choose the best routes and avoid big traffic accidents.
2. **Road Planning**
Traffic management departments put sensors on key road sections. These sensors gather and study data on how many vehicles are present and how they move. This data can help improve traffic light timing. It can also guide traffic flow and make roads better.
3. **Ensuring Safety**
Sensors provide drivers with up-to-date information about road conditions and the weather. This helps them stay safe from dangers like broken roads or poor driving conditions.
Traffic management departments can get alarm notifications. This helps them fix things quickly or close roads for a short time. These steps can help lower accidents and injuries.
**Challenges**
1. **Data Handling**
The data from road sensors is big and diverse. This creates challenges in storage, management, and analysis. Data security and privacy protection are very important. This is especially true when measurements have personal information.
2. **Device Stability**
Road sensor reliability is paramount for effective traffic management systems. Environmental factors or old sensors can cause wrong data. This can harm operations throughout the system.
3. **Cost Considerations**
Creating a complete traffic management system costs a lot. This includes costs for putting in, keeping up, and improving road sensors. Cutting costs and getting a good return on investment is still a big challenge for projects.
This outline explains how road weather stations and sensors work. It shows their role in today’s traffic systems and discusses the challenges they face.
