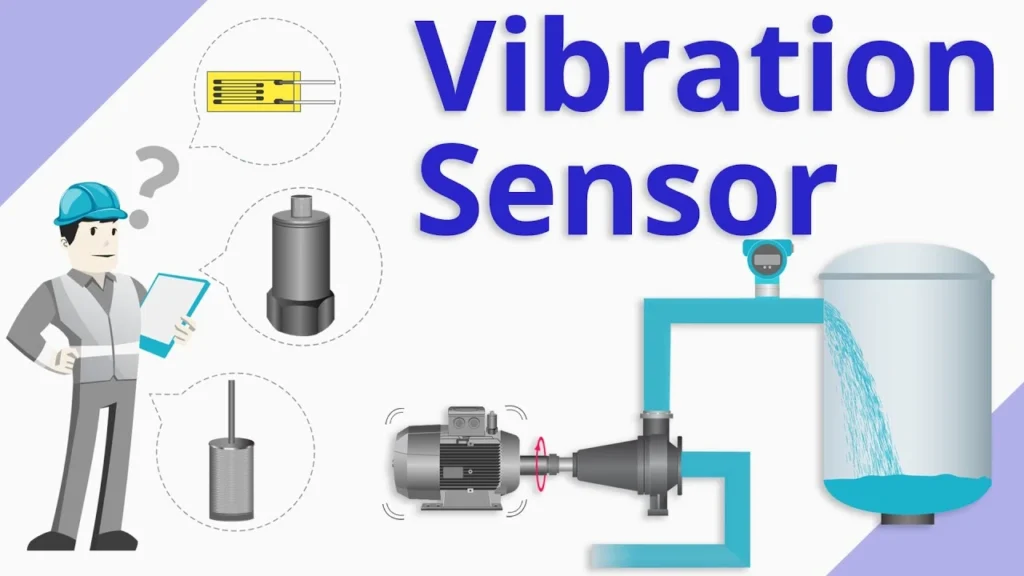

What is a Vibration Sensor?
A vibration sensor measures how fast, how often, and how strong mechanical vibrations are. It turns these measurements into signals for analysis. Changes in vibration patterns can show problems in machinery. These problems can include loose screws, worn-out parts, or old structures.
Vibration sensors detect changes in vibrations and turn them into electrical signals. They help track things like movement, speed, and how fast something speeds up or slows down. If they find unusual readings, it may show problems like worn bearings or misalignment. This helps with quick maintenance to prevent more damage.
Why Do You Need to Monitor Vibrations?
Industrial production needs reliable and strong equipment. Vibration monitoring is important. It helps keep things stable and makes them last longer.
Machines can have issues while they are working. These problems can include loose parts, old materials, or weak fastenings.
These problems can cause abnormal vibrations. Common sources of vibration are bearing problems, imbalances, and issues with gear meshing. Each of these creates different sounds and directions.
These vibrations give important information about the equipment’s condition. By looking at vibration signals, operators can find hidden problems.
They can then take steps to prevent issues and lower accident risks. In the end, vibration monitoring helps keep operations running smoothly. It also lowers downtime and cuts maintenance costs.
How Does a Vibration Sensor Work?
A vibration sensor works by changing mechanical motion into electrical energy. It starts with a mechanical part that receives input signals. These signals are then modified into a suitable form.
After that, they are turned into electrical signals using an electromechanical component. The accuracy of the recorded data depends on how well both parts work.

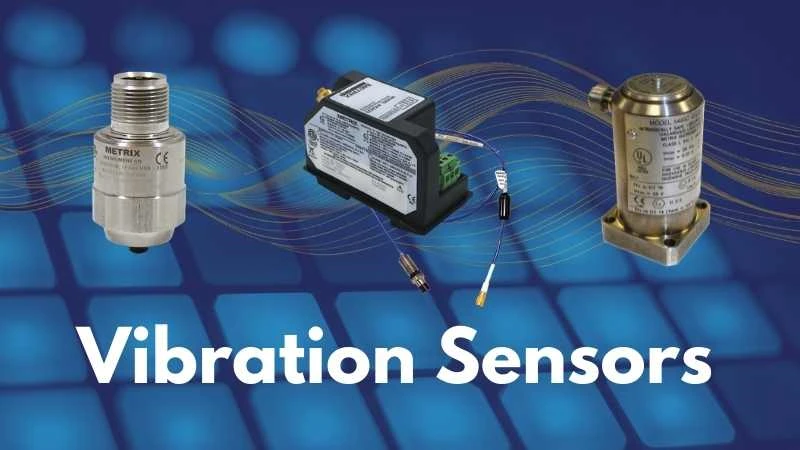

How Many Different Types of Vibration Sensors Are There?
There are many types of vibration sensors for different uses. Here are seven common types of vibration sensors. I will explain their benefits, downsides, and specific uses.
1. **Strain Gauges**
A strain gauge is a sensor that measures strain by changing electrical resistance. It has a simple design with a thin metal foil attached to the test object. When stress is applied, the material can either stretch or compress.
This change in shape alters the resistance. A bridge circuit can measure this change to find out how much load is on the object.
**Pros**
– No moving parts mean less wear and tear.
– Compact design keeps manufacturing costs low.
– High sensitivity to resistance changes allows for precise measurements.
**Cons**
– Sensitive to changes in temperature.
– Needs regular checks to stay accurate.
– Requires careful installation methods.
**Applications**
Strain gauges are widely used in mechanical engineering to measure both dynamic and static strain. They help study material fatigue, check wheel moments, and test strain on thin rectangular plates.
Strain gauges are important tools. They help test loads on concrete and steel structures, such as bridges and buildings. They watch for changes and check how well things hold up during earthquakes.
In cars, strain gauges help improve performance. They check for structural strains when solving problems.
2. **Accelerometers**
Accelerometers work by changing mechanical vibrations or forces (acceleration) into electrical signals. They use piezoelectric materials for this process.
When they are not moving, they can measure static acceleration, such as Earth’s gravity. This helps find the device’s tilt angle compared to the ground. When in motion, accelerometers measure dynamic acceleration, such as vibrations or rotations.
They help study movement and vibration patterns. There are two types of accelerometers: single-axis and triaxial. Single-axis models measure vibrations along one line.
Triaxial accelerometers measure vibrations across three different lines. Both types can be customized. You can change features like sensitivity, temperature range, frequency response, and amplitude.
**Advantages:**
– Many ways to install.
– Works in different areas.
– Can check equipment temperature at the same time.
– Good for measuring both high and low-frequency vibrations.
**Disadvantages:**
– Needs direct contact with the equipment being measured.
– Must be securely fixed before use.
– Can be affected by noise interference, which may change results.
**Applications:**
Accelerometers are often used to check vibrations in machines that spin. They are also important in devices like tablets and digital cameras. They help make sure the screen is facing the right way. In drones, accelerometers help keep the flight steady.
3. **Eddy Current or Capacitive Displacement Sensors**
Eddy current sensors work on the principle of electromagnetic induction. When a conductor is in a changing magnetic field, eddy currents form inside it. These currents form circular loops, like water vortices. That is why they are called “eddy currents.”
These sensors usually have a probe, an extension cable, and front-end electronics. They mainly measure vibration, displacement, eccentricity, and other related factors in rotating machines while they work.
Eddy current sensors are divided into two types based on how deep the currents go in conductors. They are types that reflect high frequencies and transmit low frequencies.
**Advantages:**
– Allows for non-contact measurement.
– Shows high sensitivity in finding surface defects in metals.
– Can measure through layered materials.
– Works well in tough environments with pressure, temperature changes, dirt, or oil.
**Disadvantages:**
– Only works with metal objects that conduct electricity.
– Can be affected by changes in magnetic properties.
– Not good for measuring large areas.
**Applications:**
Eddy current sensors are great for measuring shaft movement in rotating machines. They also help check how well the machine is working. Their solid design makes them dependable in tough industrial settings. These environments often have oil, dirt, moisture, dust, and magnetic interference.
4. **Laser Displacement Sensors**
Laser displacement sensors measure position and changes in an object without touching it. They are often used to measure things like thickness, vibration, distance, and diameter.
There are two main types of these sensors: laser triangulation and laser echo analysis. Triangulation works best for short distances and high precision. Echo analysis is better for long-distance measurements.
**Advantages:**
– Non-contact measurements reduce wear and help sensors last longer.
– Quick response times allow for efficient data collection.
– Provide high accuracy in measurements.
– Can measure small objects accurately.
**Disadvantages:**
– Sensitive to dirt or oil on the windows or lenses of the emitter and receiver.
– Needs the right installation angles; being too close can affect accuracy.
**Triangulation Method:**
This technique uses red laser light to shine on the target object’s surface. A laser emitter sends out the light. The light that bounces off the object goes through a lens. An internal CCD linear camera detects this light.
Different distances make the camera see the light spot at different angles. The processor uses this angle and the fixed distance between the laser and the camera. It then calculates the object’s distance from the sensor very accurately.
Echo Analysis Method
The sensor has several internal parts. These include a processing unit, a laser transmitter, a laser receiver, and other support elements. The laser displacement sensor sends out up to one million laser pulses each second. The transmitter directs these pulses at a target object.
The pulses then reflect back to the receiver. The processor measures how long it takes for the pulses to go to the object and come back. It uses this time to calculate the distance. This distance is averaged from thousands of readings to make it more accurate.
**Application:**
Laser displacement sensors work well when you need quick and accurate measurements over long distances. They are especially useful for measuring multiple targets.
Gyroscopes or Angular Rate Sensors
A gyroscope, also known as an angular rate sensor, measures how fast something spins around an axis. It has a fast-spinning flywheel rotor with a balanced axis. This rotor is usually attached to a frame that allows it to rotate freely.
This setup is called a gyroscope. It works based on the Coriolis force principle. When an object moves straight in a rotating system, it feels a sideways force and acceleration.
**Advantages:**
– Small and light design.
– Quick operation for measuring angular speed.
– High resolution with little drift.
**Disadvantages:**
– Needs careful calibration, which can slow down production.
– Sensitive to changes in temperature, humidity, and stress.
**Application:**
Gyroscope sensors are mainly used in cars. They measure yaw angles, which are the rotations around a vehicle’s vertical axis. They also measure roll angles. These are the rotations around the vehicle’s horizontal axis while it moves.
Microphones or Acoustic Pressure Sensors
Acoustic pressure sensors, also known as microphones, detect sound waves. As these waves move through a material, changes in the path can affect their speed and strength. These sensors are very important for vibration testing in acoustics.
**Advantages:**
– A cost-effective way to measure high-frequency vibrations.
– Easy to use with low setup costs.
– Accurately shows frequency patterns in vibrations.
**Disadvantages:**
– Easily influenced by background noise.
– Has a limited range of operation.
– Only measures changes in relation to something else.
**Application:** Acoustic pressure sensors are often used to check vibrations. They measure how liquids flow and vibrate. They can also detect imbalances between liquids and solids, like temperature changes. These sensors study how molecules move in liquids.
They are used as liquid pressure sensors or in systems that help reduce vibrations in machines. They also study fluid mechanics by measuring pressure from fluids when they vibrate.
Handheld Vibration Analyzer
A handheld vibration analyzer checks the frequencies of mechanical vibrations. It is used for checking, diagnosing, and ensuring quality. This tool is compact and easy to use.
It gives real-time data from the sensor linked to machines. The measurements help with maintenance and repair decisions. They offer quick insights into how well the machine is performing.
**Advantages:**
– Easy to carry and use.
– Fast and accurate data collection.
– Can measure, store, diagnose, and analyze.
– Works wirelessly with no setup needed.
**Disadvantages:**
– Quite expensive.
– Cannot monitor continuously.
**Application:** Handheld vibration analyzers are helpful in many industries. These include factories, research labs, and construction sites. They assist with vibration analysis and diagnostics.
Inclinometer & Tilt Sensor Working, Types, and Applications
RS485 Wiring: Communication Protocols and How They Compare to RS232
**How to Mount a Vibration Sensor?**
**Magnetic Mounting**
Magnetic mounting is common in industries where sensors need to take quick measurements. When a magnetic base is used, the magnetic force pulls the adapter and sensor to the surface. However, this force can create a sudden impact when they touch.
This impact may damage the accelerometer’s sensor chip or its internal parts. Magnetic mounts are best for low-frequency tests that have moderate vibrations. For mid-frequency testing, you may need to treat the surface. This will improve its resonance frequency and give better results.
**Bolt Mounting**
Bolt mounting is the best way to install vibration sensors. We will use bolts to attach the sensor to the bearing housing. This will help us measure vibrations in three ways.
The measurements will be taken at the top of the housing. We can also measure in two ways, up and down. This direct mounting gives strong and accurate measurements. It is often the best choice when a secure attachment is very important.
**Adhesive Mounting**
Adhesive mounting is a good choice when you want to install a sensor without harming the surface. This method is useful when you cannot drill holes with threads. This can happen due to issues like composite materials, thin surfaces, small areas, or many installation points.
The hardness of the cured adhesive affects how well the testing system works. Using too much adhesive can lower how well vibrations are transmitted. When using adhesives to attach sensors, think about the operating temperature and the type of adhesive. You can use hot-melt adhesives, super glues, waxes, or double-sided tapes for the best results.
**Where Are Vibration Sensors Used?**
**Mechanical Industry**
Vibration sensors are important for finding problems in mechanical systems. These problems can come from damaged bearings, gears, couplings, or other parts.
The sensors detect frequency, strength, and phase. This helps analyze equipment vibrations for fixing issues. They also help in factories by checking vibrations. This makes sure that machines work well and perform their best.
**Aerospace Industry**
In aerospace, vibration sensors monitor aircraft, rockets, and other flying vehicles. They are especially important during flight, takeoff, and landing. They collect vibration data, which helps improve design, ensure safety, and extend the lifespan of these vehicles.
**Automotive Industry**
Vibration sensors are key for checking wear and failure in vehicles. They detect vibrations from parts like wheels, brakes, and engines while the vehicle is running.
This helps predict possible damage or problems. Repairs or replacements can be done on time with this information. This improves vehicle safety and reliability.
**Energy Industry**
Vibration sensors check vibrations in generators and transformers for energy applications. They help predict faults before they get worse.
For example, they check the turbine bearings of wind turbines. This helps spot wear or problems early. It boosts efficiency and cuts downtime.
**Construction Industry**
Vibration sensors check how much buildings shake during construction or when they are in use. This includes subways and tall buildings. By looking at vibration data, these sensors can predict changes in structure or possible damage. This helps ensure that preventive measures are taken on time.
**Seismic Exploration**
For geological work, vibration sensors measure ground vibrations. They help find substances like oil, gas, or minerals below the surface. These sensors also track seismic activity and geological hazards. This helps give early warnings for earthquakes and other natural disasters.
