Ultrasonic Weather Stations: Revolutionizing Meteorological Monitoring
Introduction
In the ever-evolving field of weather monitoring, ultrasonic weather stations have risen to prominence as cutting-edge, efficient tools. By harnessing the power of ultrasonic technology, these devices deliver precise and dependable measurements of key meteorological parameters. This technological innovation has significantly advanced data collection methods, offering clear advantages over traditional weather sensors.
How Ultrasonic Technology Powers Weather Stations
Wind Measurement
**1. Wind Speed**

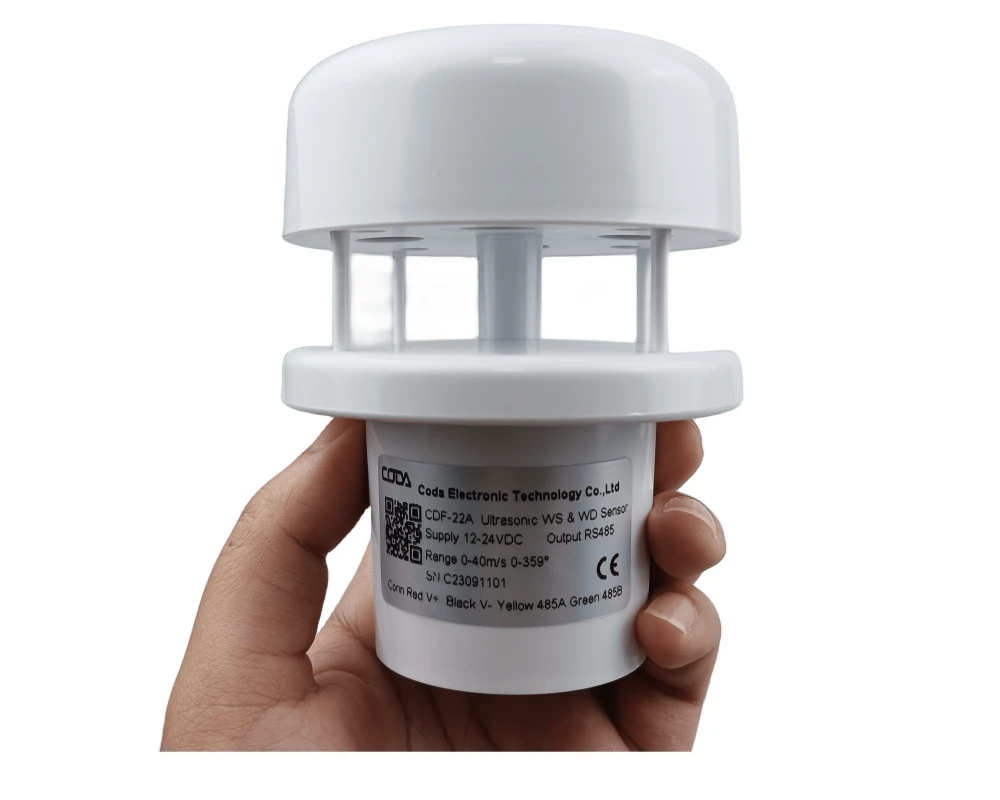

At the core of wind speed measurement in ultrasonic weather stations lies the ultrasonic anemometer. This device operates on the time-of-flight principle and typically features three or more transducers arranged in a specific geometric pattern.
When wind passes between the transducers, ultrasonic waves are sent across the arrangement. The time it takes for these waves to travel from one transducer to another varies based on wind interaction. If the wind flows in the same direction as the wave, the wave’s travel time decreases; if it blows against the wave, the time increases. By analyzing these variations, wind speed is accurately calculated.
**2. Wind Direction**
Similarly, wind direction is derived from time-of-flight differences among the transducers. The placement of these transducers allows them to receive ultrasonic waves from multiple angles, enabling the anemometer to determine the wind’s origin. For example, in a triangular transducer configuration, any discrepancy in wave travel times indicates the wind’s directional flow relative to the anemometer’s orientation.
**Rainfall Measurement**
**Ultrasonic Rain Gauges**
To measure rainfall, ultrasonic weather stations use specialized sensors that emit ultrasonic pulses toward the surface of collected rainwater inside a gauge. These pulses travel through the air, reflect off the water surface, and return to the sensor.
The system calculates the time taken for each pulse to complete its journey. By factoring in the speed of sound—adjusted for temperature and humidity—it’s possible to determine the exact distance from the sensor to the water surface. As rain accumulates and this distance decreases, continuous monitoring provides a precise measurement of total rainfall over time.
**Temperature and Humidity Measurements (Optional Features)**
**Ultrasonic-Based Humidity Sensing**
Certain advanced ultrasonic stations include capabilities for humidity detection using hygroscopic materials. Ultrasonic waves are propagated through this material, which changes its properties according to ambient humidity levels. Variations in wave characteristics, such as frequency or signal attenuation, allow for accurate determination of humidity.
**Temperature Compensation**
Temperature significantly influences sound’s speed through air—a critical factor for accurate measurements in ultrasonic systems. To address this, many weather stations integrate temperature sensors that calibrate readings by compensating for variations due to temperature fluctuations. This ensures accurate assessments in wind speed, rainfall measurement, and other meteorological calculations.
Advantages of Ultrasonic Weather Stations
**High-Accuracy Measurements**
**Wind Speed and Direction**
Ultrasonic anemometers deliver highly accurate wind speed and direction data. Unlike traditional cup anemometers and wind vanes, which are prone to errors from mechanical friction and inertia, these devices operate without moving parts. This design eliminates friction-related inaccuracies, providing more precise readings. Their sensitivity even to slight variations in wind speed makes them indispensable for critical applications like wind energy farms, aviation, and meteorological research.
**Rainfall**
Ultrasonic rain gauges offer superior accuracy in measuring rainfall. Unlike traditional tipping-bucket gauges, which are influenced by splashing or evaporation, ultrasonic technology provides continuous, non-intrusive measurements. This enhances monitoring precision during precipitation events, proving vital for flood prediction, water management, and agricultural planning.
**Durability and Low Maintenance**
**No Moving Parts**
The lack of mechanical components gives ultrasonic sensors a significant edge in durability. Without the risk of wear and tear, these systems withstand challenging conditions such as strong winds, dust, and heavy rainfall with minimal maintenance needs. This translates to reduced long-term costs. For instance, in desert environments prone to sandstorms, traditional cup anemometers often fail quickly due to wear, whereas ultrasonic anemometers maintain reliable performance.
**Robust Construction**
Ultrasonic weather stations are built with durable materials designed for outdoor resilience. The ultrasonic sensors are enclosed in waterproof, dustproof, and corrosion-resistant housings, ensuring reliability across various climates—from extreme cold in polar regions to high humidity in tropical environments.
**Fast Response Time**
**Real-Time Data**
Ultrasonic sensors provide near-instantaneous weather data updates due to their fast response times. Whether measuring wind speed and direction or detecting sudden changes, this capability is crucial in real-time applications. For example, emergency response teams can benefit from immediate wind condition updates to manage risks effectively, while pilots in aviation rely on timely wind data to ensure flight safety.
**Applications of Ultrasonic Weather Stations**
**Meteorological Research**
Ultrasonic weather stations play a pivotal role in advancing meteorological research and climate studies. Their precise, long-term measurements of variables like wind, rainfall, temperature, and humidity enhance our understanding of climate trends and shifts. By analyzing extended datasets, researchers can identify changes in wind patterns, precipitation levels, and their interactions with other factors like temperature. This information feeds into the development of more accurate climate models, which are essential for projecting future scenarios and assessing the impact of human activities on the environment.
Atmospheric Boundary Layer Research
Ultrasonic weather stations are highly effective tools for measuring wind profiles, making them invaluable in studying the atmospheric boundary layer. This critical part of the atmosphere, situated closest to the Earth’s surface, plays a key role in regulating the exchange of heat, moisture, and pollutants between the surface and the air. Ultrasonic anemometers excel at providing detailed measurements of wind speed and direction across various elevations, offering crucial insights into the vertical structure of wind within this layer. Such data enables researchers to delve deeper into atmospheric processes, including turbulence, which significantly influences pollutant dispersion and energy transfer mechanisms.
Renewable Energy
Wind Energy Farms
For wind energy farms, precise data on wind speed and direction is fundamental to optimizing turbine performance. Ultrasonic weather stations are frequently employed to study wind resources at proposed turbine sites. This helps identify optimal locations where energy capture will be maximized. Additionally, during operational phases, these sensors monitor wind conditions continuously, enabling real-time adjustments to turbine blades to enhance energy production while protecting the turbines from potential damage caused by excessive wind loads. This dual benefit not only improves energy generation efficiency but also prolongs the operational lifespan of the turbines.
Solar Energy Systems
Although solar energy systems primarily depend on sunlight, environmental factors such as wind and rainfall can impact their performance. Ultrasonic weather stations provide valuable wind speed data, helping assess risks like debris accumulation that might damage solar panels. Rainfall data can also inform maintenance schedules by predicting when cleaning may be required to remove dust and dirt that diminish energy conversion efficiency. By incorporating data from these weather stations into solar energy management systems, operators can take proactive steps to maintain peak performance of solar installations.
Aviation and Maritime Industries
Aviation
In aviation, reliable weather data is integral to ensuring flight safety. Airports often equip themselves with ultrasonic weather stations to deliver real-time information on wind speed, direction, and turbulence. Pilots use this data during takeoff, landing, and in-flight maneuvers. For instance, accurate crosswind measurements (winds moving perpendicular to runways) are vital for securing safe landings. Ultrasonic anemometers provide a high level of accuracy in detecting these crosswinds, reducing risks associated with wind-related incidents.
Data Processing and Transmission Costs
Beyond hardware expenses, ultrasonic weather stations often incur additional costs for data processing and transmission. The high-frequency data generated by ultrasonic sensors must be processed and analyzed in real-time, requiring more sophisticated microcontrollers and data storage systems. Furthermore, transmitting this data over long distances—particularly in remote areas—can lead to added costs in the form of wireless communication modules and data plans.
In summary, ultrasonic weather stations mark a significant leap forward in weather monitoring technology. Their ability to provide highly accurate measurements, exceptional durability, and rapid response times positions them as valuable tools across various industries, including meteorology, renewable energy, and aviation. Despite challenges such as environmental interference and higher costs, ongoing advancements in research and development aim to overcome these obstacles, enhancing the functionality and accessibility of ultrasonic weather stations.
