How to choose the Best anemometer for you ？
What Is an Anemometer?
An anemometer is a device used to measure air velocity, often referred to as a wind sensor. Originating centuries ago as rudimentary tools for gauging wind intensity, modern anemometers have evolved significantly, offering users highly precise and detailed measurements. With a variety of designs available, finding the most suitable anemometer for specific applications can be challenging.
Common Applications of Anemometers
1. Measuring average wind speed and direction.
2. Recording pulsating wind velocities and frequency spectra of airflow.
3. Assessing Reynolds stresses in turbulent flows and analyzing speed and time correlations at two points.
4. Determining wall shear stress, often by employing a hot film probe flush with the wall surface.
5. Measuring fluid temperature through calibrated probe resistance changes relative to temperature variations.
Types of Anemometers
There are seven main types of anemometers:
– Propeller anemometers
– Hot-wire anemometers
– Vane anemometers
– Ultrasonic anemometers
– Pressure anemometers
– Tube anemometers

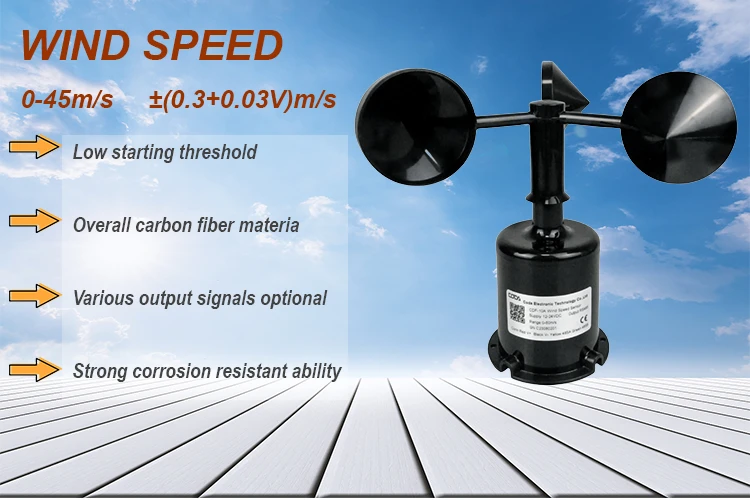

**1. Cup Anemometers**
Ruby Sun in England initially invented the cup-type anemometer, one of the most commonly used anemometer designs, and made it feature four cups. John Patterson later refined the design by reducing it to three cups. The three-cup configuration consists of hemispherical or parabolic cups mounted at fixed angles to a central frame. We connect these cups to a rotatable shaft, which makes them spin when affected by the wind. The rotational speed is proportional to the wind speed, and we can record it by using electrical contacts, tachogenerators, or photoelectric counters. Today, three-cup models remain widely used in meteorological weather stations.
**Advantages:**
– Popular and highly reliable for wind measurement across a wide range of speeds.
– Durable with excellent strength and corrosion resistance.
– Affordable, with several material options like aluminum alloy or polycarbonate for diverse requirements.
**Disadvantages:**
– The design parameters, including the shape and size of the cups, usually depend on empirical data rather than theoretical principles. This situation can impose restrictions on achieving accurate calibration.
– Inconsistencies in linearity can arise due to varying cup configurations.
**2. Propeller Anemometers**
This type utilizes three- or four-blade propellers attached to a horizontal axis to measure wind speed. We mount the propellers on the front of a wind vane. The designers crafted them in such a way that they will turn to completely face the direction of the wind, and the speed at which they rotate is in proportion to the wind speed.To ensure accurate readings, the propeller’s rotation plane must align with the wind direction, aided by streamlined, aerodynamically shaped vanes resembling aircraft fuselages.
**Advantages:**
– Easy to operate and widely applicable for different environments.
– Robust design resistant to corrosion and environmental stresses.
**Disadvantages:**
– Operating challenges arise in cold weather, as frost or ice accumulation may freeze components like propellers and prevent normal functionality. This can result in unreliable weather data during extended cold periods.
**3. Hot-Wire Anemometers**
A hot-wire anemometer is a device used to measure wind speed by converting flow velocity into electrical signals. Its operation involves placing a thin metal wire (known as the “hot wire”) heated by an electric current in an airstream. The rate of heat dissipation from the hot wire is directly proportional to the flow velocity. As the airflow cools the wire, its temperature drops, leading to a change in its resistance. Then, we translate this variation in resistance into an electrical signal, and this electrical signal represents the flow velocity.
There are two types of hot-wire anemometers: **indirect heating** and **direct heating**. Indirect heating typically involves manganese-copper wires with a near-zero resistance-temperature coefficient and additional temperature-sensing elements on their surface. In contrast, direct heating generally utilizes platinum wires, which can measure temperature and wind speed simultaneously. These anemometers are highly sensitive at low wind speeds, making them suitable for detecting very small airflow changes. Having a response time that is only a few hundredths of a second, they are of vital importance in areas like the research of atmospheric turbulence and agricultural meteorology.
**Advantages:**
– Highly sensitive even at low wind speeds.
– Lightweight, portable, and easy to operate without requiring specialized software.
**Disadvantages:**
– Susceptible to ambient temperature fluctuations, causing temperature drift, which can generate errors.
– Relatively expensive and costly to maintain.
**4. Vane Anemometers**
Vane anemometers are compact wind speed measurement devices featuring a rotating wheel with blades (impeller) and a counting mechanism. When wind acts on the impeller, the impeller spins. Then, we determine the wind speed by calculating the number of revolutions the impeller makes per minute. These battery-powered devices are particularly useful for outdoor activities like camping, hiking, sailing, or hunting, where knowledge of wind speed or direction is essential.
**Advantages:**
– Compact design makes it easy to carry and use.
– Requires no installation and offers straightforward functionality.
– Affordable with an aesthetically pleasing appearance.
**Disadvantages:**
– Limited range of measurable wind speeds.
– Lacks remote data viewing capabilities.
– Requires frequent battery replacements due to limited battery life.
**5. Ultrasonic Anemometers**
Ultrasonic anemometers measure both wind speed and direction using sound waves. The device transmits sound pulses and calculates airflow speed based on the time or frequency (Doppler shift) differences observed at the receiving end.
The propagation speed of sound in the atmosphere equals the sum of its speed in still air and the air’s actual motion. By measuring the time it takes sound waves to travel upwind versus downwind across a fixed distance, the anemometer determines wind velocity. This time difference forms the basis of its operation.
Modern ultrasonic anemometers have emerged as advanced alternatives to traditional mechanical options. Their all-weather durability and ability to operate continuously over long periods make them increasingly popular for both research and practical applications. Their superior performance makes these devices ready to replace mechanical anemometers.
**Advantages:**
– No moving parts, eliminating mechanical wear and tear.
– Fast response time with high sensitivity; capable of detecting very low wind speeds (as little as a few centimeters per second).
**Disadvantages:**
– Installation can be complex.
– Significantly more expensive compared to traditional anemometers.
**6. Pressure Anemometers**
Pressure anemometers measure wind speed by utilizing the difference between the wind’s total pressure and its static pressure. They employ a double pitot tube. In this setup, one of the nozzles is oriented to face the direction of the airflow, thereby capturing the total pressure. Conversely, the other nozzle is directed away from the airflow, and as a result of the suction effect, it detects a lower pressure. The pressure difference generated by these two nozzles correlates with the wind speed.
The most widely used pressure anemometer is the Pitot tube, named after its inventor, French engineer Henri Pitot. A Pitot tube comprises two probes: one for total pressure (stagnation pressure) and another for static pressure. The wind speed is calculated using the difference between these pressures, which is called dynamic pressure. We make a small hole at the tip of the tube’s head, which faces the incoming flow to measure the total pressure. And we position several small holes on the side wall approximately three times the tube’s diameter away from the tip in order to sense the static pressure. We connect these openings to separate pipelines, and then we link these pipelines to the two ends of a differential pressure gauge. By reading the gauge values and applying the relevant formulas, we can precisely figure out the wind speed at a specific point.
**Advantages:**
– High stability.
– Capable of measuring positive pressure, negative pressure, and differential pressure within a range of 3000 Pa.
– Suitable for measuring wind speed and air volume effectively.
**Disadvantages:**
– Limited versatility in operating environments.
**7. Tube Anemometers**
Tube anemometers are purpose-built for measuring wind speed in confined spaces, such as pipes and HVAC systems. They make use of a measurement unit that is highly sensitive and precise. This unit has the ability to accurately detect even small wind speeds and at the same time, it can maintain outstanding stability.These devices can also calculate the real-time air volume. They do this by considering the cross-sectional area of the pipe under measurement. Designed with an anti-interference circuit, tube anemometers resist strong electromagnetic interference, enabling their use in industrial environments without issues. Additionally, these systems feature simplified wiring without requiring traditional screw terminals, making them convenient to install.
Tube anemometers operate using the hot-wire balance principle to gauge wind speed. They provide fast response times and can detect minimal starting wind speeds.
**Advantages:**
– Suitable for measuring wind speed in confined spaces like pipes, HVAC systems, etc.
– Delivers high accuracy and reliable results.
**Disadvantages:**
– Requires punching for installation, making it more complex to set up.
How to Choose a Suitable Anemometer
When selecting an anemometer, consider the following factors:
**1. Measurement Range**
Anemometers come in various types with a range of features. Identify the wind speed range you need to measure, along with additional functionalities such as temperature or humidity measurement. You should also take power supply options into account. Evaluate whether mains power or battery power is more appropriate for your specific needs.
**2. Accuracy**
Accuracy ratings can vary from +/- 0.2% to +/- 2%. Higher accuracy often comes with a higher cost. Choose an anemometer that balances precision and budget constraints to meet your needs efficiently.
**3. Quality**
Opt for durable models made with high-quality materials to ensure longevity. For long-term outdoor applications, investing in robust anemometers can reduce maintenance costs over time.
**4. Application Environment**
Consider the intended location for using the anemometer, such as outdoor environments, industrial zones, or laboratories. Make sure to choose a model that is appropriate for your specific setting and offers the necessary protection level. Look for devices that are easy to install and operate; most anemometers include all necessary accessories for setup.
**5. After-Sales Support**
Check whether the seller offers reliable customer support for installation and troubleshooting. Good after-sales service can make projects safer and more efficient.
Conclusion
With numerous types of anemometers available, selecting one that meets your specific requirements and application environment is essential. If you have any questions or need assistance in choosing the right anemometer, feel free to reach out to us. Our team of professional technicians is ready to help address your concerns and find the best solution for you!
