Are Weather Sensors Waterproof?
Weather sensors play a crucial role in monitoring and predicting weather conditions. People use them in many places, like open fields, mountaintops, coastal areas, and city rooftops. One common question about weather sensors is whether they are waterproof. They are often exposed to the elements. The answer is not just yes or no. It depends on many factors. The type of sensor, its intended use, and the manufacturer’s design and specifications include these elements. This article will look closely at the water resistance of weather sensors. It aims to help you understand this topic better.
Types of Weather Sensors and Their Water Resistance

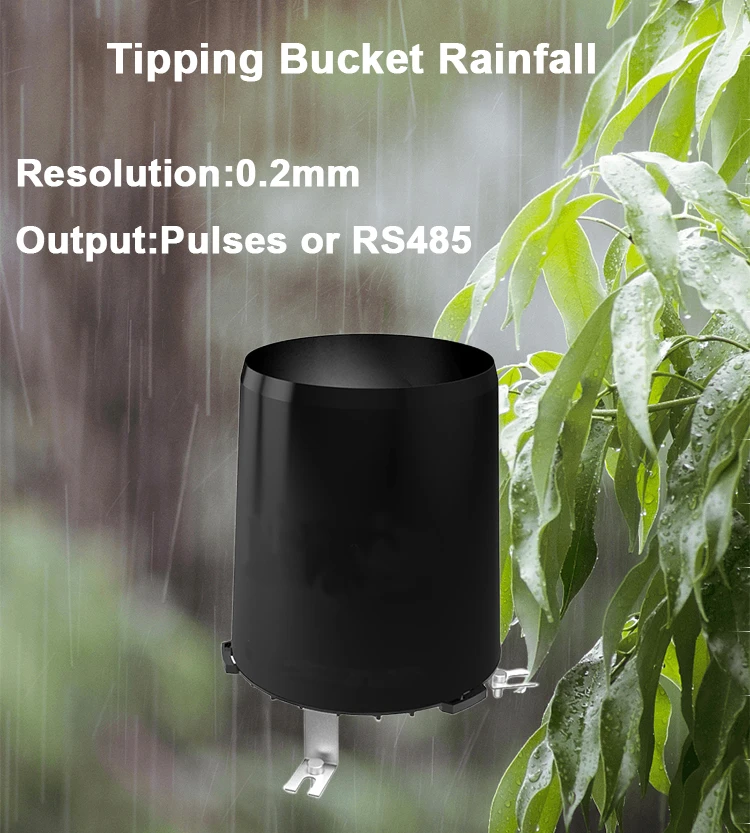

Rain Gauges
Rain gauges are among the most well – known weather sensors. Traditional tipping-bucket rain gauges measure the amount of rainfall. Manufacturers typically build these devices with a certain level of water resistance. The tipping mechanism is inside a housing. This housing keeps water out of the internal parts. It also lets rain flow into the collection area. However, they do not fully waterproof because designers did not design them for submersion. Prolonged submersion can damage the delicate tipping mechanism and the electronic components (if it has any for data transmission). Modern ultrasonic rain gauges, on the other hand, use sound waves to measure rainfall. Their casings are often more robustly sealed to protect the internal ultrasonic sensors and electronics from water ingress. They can handle heavy rain and are usually better at resisting water damage than some traditional rain gauges. However, experts still do not recommend full submersion.
Anemometers
Anemometers measure wind speed and direction. Cup anemometers, which are a common type, consist of cups mounted on a shaft. While the elements expose the cups themselves, you need to protect the internal bearings and any associated electronic components. Manufacturers usually design the housing of cup anemometers with seals and gaskets to keep water out. The cups rotate constantly. This means that any water that gets inside can cause problems over time. For example, it can rust the bearings. Vane anemometers measure wind direction and have components that require protection from water. Some high-end anemometers can handle tough weather, like heavy rain. They are more resistant to water damage, but they still have limits.

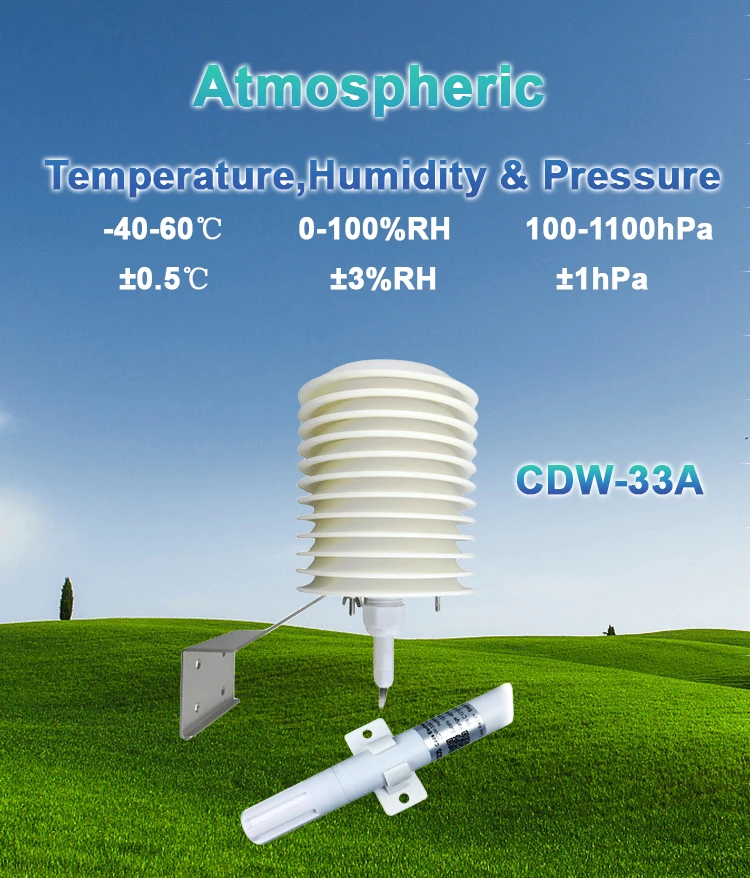

Temperature and Humidity Sensors
Temperature and humidity sensors are used to measure the ambient temperature and moisture content in the air. People often keep these sensors in cases that let air flow in for accurate readings while keeping water out. The enclosures may have vents with fine mesh or special membranes. These allow air to flow but keep water droplets out. In very wet conditions, such as heavy rain or foggy areas, water can build up inside the enclosure. This can affect the sensor readings and may even damage the sensor over time. Manufacturers design some temperature and humidity sensors for outdoor use. They have better water-resistant features, like sealed connectors and stronger casings.
Barometric Pressure Sensors
Barometric pressure sensors measure the atmospheric pressure, which is an important parameter for weather forecasting. These sensors are usually sensitive electronic devices. To protect them from water, people often place them in well-sealed enclosures. However, like other weather sensors, they are not immune to the effects of water. Water can get into the enclosure through small cracks or damaged seals. This can cause wrong pressure readings or sensor failure. Manufacturers design some barometric pressure sensors for outdoor use. They can handle normal rain and moisture. However, you should not use them in water or very wet places.
Standards and Ratings for Water Resistance
IP Ratings
The Ingress Protection (IP) code is an international standard. It classifies how well mechanical casings and electrical enclosures protect against dust, contact, and water. An IP67-rated weather sensor fully protects itself from dust (the first digit, 6). You can also submerge it in water up to 1 meter for 30 minutes without causing damage (the second digit, 7). IP68 – rated sensors can withstand even more prolonged submersion at greater depths. When choosing a weather sensor, it is essential to check its IP rating to understand its water resistance capabilities. A higher IP rating generally indicates better protection against water, but it also comes with a higher cost.
Other Industry – Specific Ratings
In addition to IP ratings, some industries have their own specific standards for water resistance in weather sensors waterproof. In the marine industry, weather sensors on ships or offshore platforms must meet strict requirements. This is because of the harsh saltwater environment. Engineers often design these sensors to be highly resistant to corrosion from saltwater and to be waterproof. Special coatings, materials, and sealing methods help the sensors work well in tough marine conditions.
Factors Affecting a Weather Sensor’s Water Resistance
Design and Construction
The design and construction of a weather sensor play a crucial role in its water resistance. A well – designed sensor will have tight – fitting seals around all openings, such as ports for cables and ventilation holes. The choice of materials also matters. For example, using strong plastics or metals that resist water and rust can make the sensor last longer in wet conditions. The assembly process must be precise. This ensures that we seal all parts correctly. It also prevents any gaps where water can enter.
Installation and Maintenance
Even the most water – resistant weather sensor can be compromised if not installed correctly. If someone does not install the sensor correctly, water can get into it. This can happen if someone damages the seals during installation. It can also happen if someone does not tighten the cable connections well. Regular maintenance is also essential. Over time, seals can deteriorate, and gaskets can become worn out. Checking and replacing these components as needed can help maintain the sensor’s water resistance. Extreme weather, like strong winds and hail, can damage the sensor’s outer casing. This reduces its ability to keep water out.
Conclusion
In conclusion, many weather sensors have some water resistance. However, not all of them are completely weather sensors Waterproof. The water resistance of a weather sensor depends on its type and the standards it follows. It also relies on its design, construction, and the way someone installs and maintains it. When choosing a weather sensor for a specific use, it is important to think about the expected weather conditions. You should select a sensor that has the right level of water resistance. By knowing these factors, users can keep their weather sensors working well and accurate, even in wet and tough weather.
