PV Sensors: Principles, Applications, and Developments
1. Introduction
In the realm of modern technology, photovoltaic (PV) sensors have emerged as crucial components with diverse applications. These sensors use the photovoltaic effect. They detect and measure light. They convert light into electrical signals. These signals can be analyzed and used in different systems. As the demand for renewable energy grows, the importance of PV sensor is rising. These sensors are crucial in many fields.
2. Working Principle
2.1 The Photovoltaic Effect

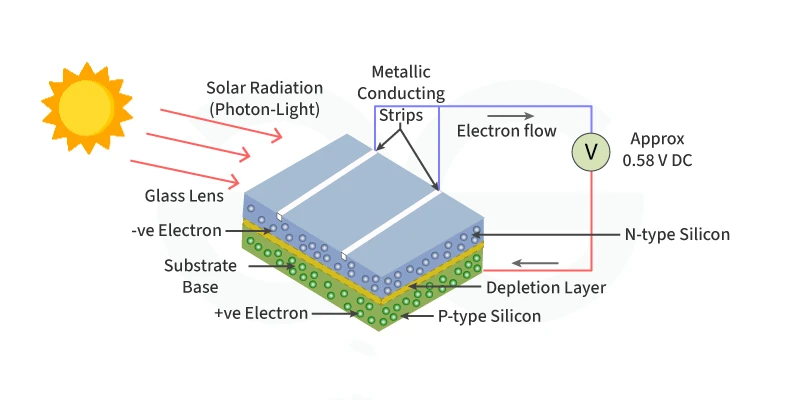

The core principle behind PV sensor is the photovoltaic effect. When photons, which are particles of light, strike a PV sensor made of a semiconductor material, such as silicon, they transfer their energy to the electrons within the semiconductor. In a PV cell, which is an important part of PV sensors, engineers create a p-n junction. This is done by adding impurities to the semiconductor material. The p-type semiconductor has more holes, which are positive charge carriers. The n-type semiconductor has more electrons.
2.2 Construction of PV Sensors
PV sensor usually have several PV cells linked together in series or parallel. This setup helps achieve the needed voltage and current output. The cells are often covered in a protective case. This keeps them safe from moisture, dust, and damage. Additionally, an anti – reflective coating is applied to the surface of the sensor to maximize the absorption of light.
3. Types of PV Sensors
3.1 Silicon – based PV Sensors
Silicon is the most common material used in PV sensor. It is abundant, low-cost, and has well-known semiconductor properties. Experts can further classify silicon-based PV sensor into single-crystal, polycrystalline, and amorphous silicon sensors.
Single-crystal silicon PV sensor: Manufacturers create these sensors from one crystal of silicon. This creates a very ordered structure. This structure allows for efficient charge carrier mobility, leading to high conversion efficiencies. People often use single-crystal silicon PV sensors in places where they need high performance and reliability. This includes space-based solar panels and advanced scientific instruments.
Polycrystalline silicon PV sensors: Polycrystalline silicon is composed of many small silicon crystals. Polycrystalline silicon PV sensors have a lower conversion efficiency than single-crystal sensors. However, they are cheaper to produce. Large-scale solar power plants and commercial PV installations widely use them.
Amorphous silicon PV sensor: Amorphous silicon has a disordered atomic structure. Manufacturers can make these sensors cheaply and place them on flexible materials. This makes them good for thin-film solar cells and flexible PV modules.
3.2 Thin – Film PV Sensors
Sensores PV in pellicula tenui fiunt. Hoc fit per depositionem strati tenui materiae semiconductoris. Exempla sunt cadmium telluride (CdTe), cuprum indium gallium selenide (CIGS), et gallium arsenide (GaAs). Haec strata ponuntur super substratum.
CdTe PV sensors: CdTe-based PV sensors work well and are affordable for large-scale solar energy use. However, concerns about the toxicity of cadmium have led to increased research on recycling and proper disposal methods.
CIGS PV sensors: CIGS PV sensors offer high conversion efficiencies and the potential for low – cost production. They are suitable for both rooftop and large – scale solar installations.
GaAs PV sensor are known for being very efficient. They work well in high temperatures and bright light conditions. People often use them in space applications and concentrator photovoltaics. In these cases, strong sunlight focuses on a small area of the sensor.
4. Applications of PV Sensors
4.1 Solar Energy Systems
PV sensor are at the heart of solar energy systems. In solar power plants, operators use large groups of solar panels to turn sunlight into electricity. These sensors play a vital role in optimizing the energy production of the system. By measuring solar radiation, system controllers can change the tilt and direction of the solar panels. This helps to maximize energy absorption during the day. Sensor can also monitor how well each solar panel works. They can find early signs of damage or problems. This reduces downtime and maintenance costs. It also improves the efficiency and reliability of the solar energy system.
4.2 Photodetectors in Analytical Instruments
PV sensor are widely used as photodetectors in various analytical instruments. For example, spectrophotometers use Sensor. These sensors detect how strong the light is after it passes through a sample. The electrical signal from the PV sensor depends on how much light the sample absorbs or transmits. This helps in accurately analyzing the sample’s chemical makeup and properties. PV sensors are used in fluorescence spectrometers. They detect the fluorescence that a sample emits when excited by a specific light wavelength.
4.3 Environmental Monitoring

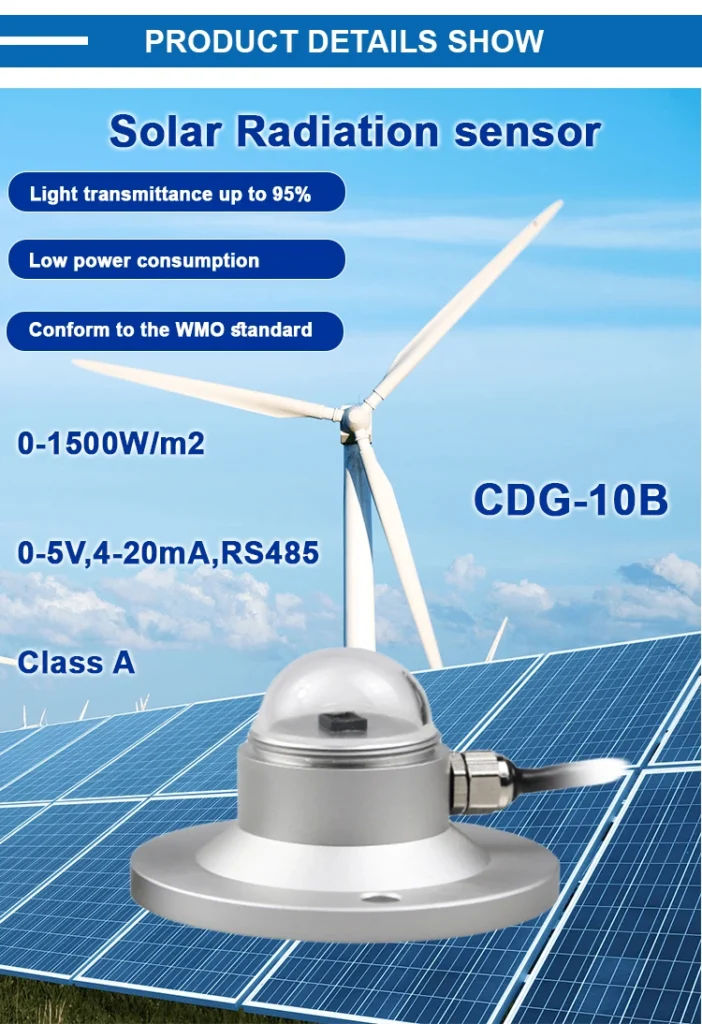

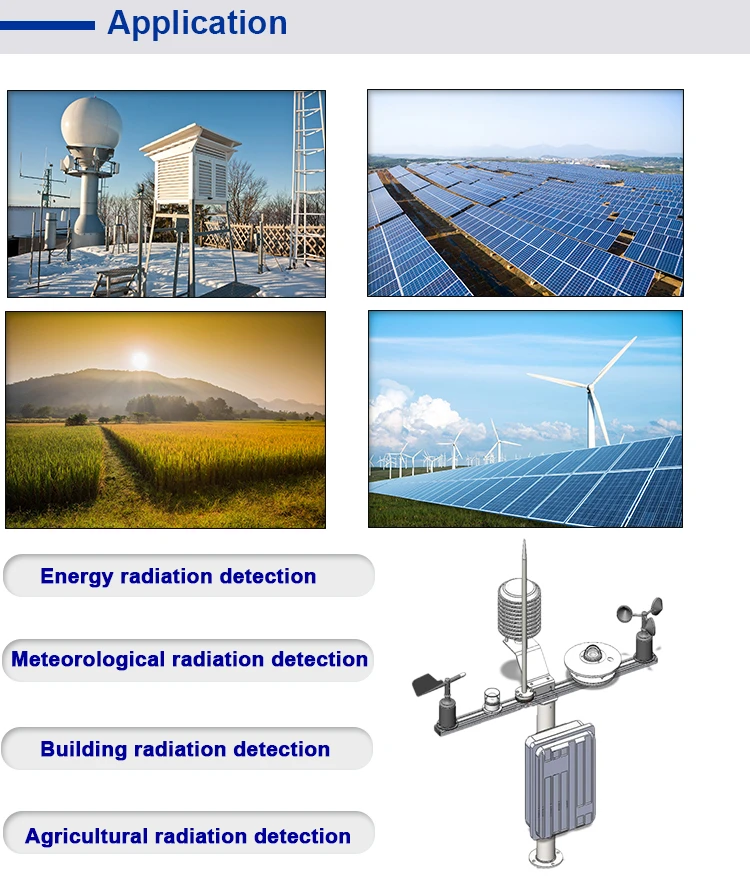

In environmental monitoring, researchers use PV sensors to measure solar radiation levels. This data is essential for understanding the Earth’s energy balance, climate change studies, and weather forecasting. Pyranometers are a type of Sensor. They measure global solar radiation, which includes direct and diffuse radiation. Scientists can study how solar energy affects the atmosphere, oceans, and land by monitoring solar radiation all the time. PV sensors can work with other sensors, like temperature and humidity sensors. This helps us understand the environment better.
4.4 Consumer Electronics
PV sensors are finding their way into consumer electronics products. For example, some smartphones use Sensors. These sensors automatically change the screen brightness based on the light around them. This not only improves the user experience but also helps to conserve battery power. PV sensors are used in digital cameras to measure light intensity. This helps the camera adjust exposure settings for better image quality. Some wearable devices, like smartwatches, use PV sensors. These sensors recharge the battery with ambient light. This helps to extend the device’s battery life.
5. Conclusion
Photovoltaic sensors have improved a lot since they were first created. They are now a key part of many technology and energy applications. Their ability to turn light into electrical energy is efficient and reliable. This makes them a promising solution for renewable energy and advanced sensing technologies. As research works on improving efficiency, cost, durability, and integration, PV sensors will play a bigger role. They will help create a sustainable and advanced future. Whether in solar energy generation, environmental monitoring, or consumer electronics, innovators will use PV sensors to drive innovation and improve the performance of various systems.
